基于SSM框架的体育测试报名管理系统 - 源码深度解析

JavaJavaScriptMavenHTMLCSSSSM框架MySQLJSP+Servlet
2026-02-0814 浏览

文章摘要

体育测试报名管理系统基于经典的SSM（Spring+Spring MVC+MyBatis）框架构建，旨在解决学校、体育机构在组织大规模体能测试时面临的手工登记效率低、数据易错、信息不透明等核心痛点。系统通过数字化的报名流程与集中化的数据管理，显著提升事务处理效率，降低人力成本，并确保数据准确可查。 ...

在体育教育信息化快速发展的今天，传统手工登记模式已难以满足大规模体能测试的管理需求。体育测试管理平台应运而生，该系统基于成熟的SSM技术架构，通过数字化手段重构了从报名、审核到场地分配的全流程管理，为学校体育部门提供了高效可靠的解决方案。

系统架构与技术栈深度解析

该平台采用经典的三层架构设计，每一层都选用了业界主流的技术框架。表现层使用Spring MVC框架处理用户请求，通过配置的拦截器实现统一的身份验证和权限控制。业务层依托Spring IoC容器管理各种Service组件，利用声明式事务管理确保核心业务操作的数据一致性。数据持久层采用MyBatis框架，通过灵活的XML映射文件编写SQL语句，实现了高效的数据访问。

技术栈配置体现了企业级应用的典型特征：

<dependencies>
    <!-- Spring核心依赖 -->
    <dependency>
        <groupId>org.springframework</groupId>
        <artifactId>spring-webmvc</artifactId>
        <version>5.2.8.RELEASE</version>
    </dependency>

    <!-- MyBatis整合Spring -->
    <dependency>
        <groupId>org.mybatis</groupId>
        <artifactId>mybatis-spring</artifactId>
        <version>2.0.6</version>
    </dependency>

    <!-- MySQL驱动 -->
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>8.0.21</version>
    </dependency>

    <!-- JSP支持 -->
    <dependency>
        <groupId>javax.servlet</groupId>
        <artifactId>jstl</artifactId>
        <version>1.2</version>
    </dependency>
</dependencies>

Spring配置文件中定义了完整的事务管理策略和数据源配置：

@Configuration
@EnableTransactionManagement
@ComponentScan("com.ssm.service")
public class SpringConfig {

    @Bean
    public DataSource dataSource() {
        DruidDataSource dataSource = new DruidDataSource();
        dataSource.setUrl("jdbc:mysql://localhost:3306/sports_test?useUnicode=true&characterEncoding=utf8");
        dataSource.setUsername("root");
        dataSource.setPassword("password");
        dataSource.setInitialSize(5);
        dataSource.setMaxActive(20);
        return dataSource;
    }

    @Bean
    public PlatformTransactionManager transactionManager(DataSource dataSource) {
        return new DataSourceTransactionManager(dataSource);
    }
}

数据库设计亮点与优化策略

用户表设计的精细化考量

t_user表的设计体现了对系统用户管理的深度思考：

CREATE TABLE `t_user` (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT '主键ID',
  `type` varchar(255) DEFAULT NULL COMMENT '用户类型',
  `uname` varchar(20) NOT NULL COMMENT '用户名',
  `userAddress` varchar(255) DEFAULT NULL COMMENT '用户地址',
  `userBirth` varchar(255) DEFAULT NULL COMMENT '用户生日',
  `userEmail` varchar(255) DEFAULT NULL COMMENT '用户邮箱',
  `userGender` varchar(255) DEFAULT NULL COMMENT '用户性别',
  `userName` varchar(20) NOT NULL COMMENT '用户姓名',
  `userPassword` varchar(250) NOT NULL COMMENT '用户密码',
  `userPhone` varchar(255) DEFAULT NULL COMMENT '用户电话',
  `clazzId` int(11) DEFAULT NULL COMMENT '班级ID',
  `deptId` int(11) DEFAULT NULL COMMENT '部门ID',
  PRIMARY KEY (`id`) USING BTREE,
  UNIQUE KEY `id` (`id`) USING BTREE,
  UNIQUE KEY `uname` (`uname`) USING BTREE,
  KEY `FKCB63CCB67176027B` (`clazzId`) USING BTREE,
  KEY `FKCB63CCB6F47E1FB5` (`deptId`) USING BTREE,
  CONSTRAINT `FKCB63CCB67176027B` FOREIGN KEY (`clazzId`) REFERENCES `t_clazz` (`id`) ON DELETE CASCADE,
  CONSTRAINT `FKCB63CCB6F47E1FB5` FOREIGN KEY (`deptId`) REFERENCES `t_dept` (`id`) ON DELETE CASCADE
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8 ROW_FORMAT=COMPACT COMMENT='用户表'

设计亮点分析：

  1. 索引优化策略：除了主键索引外，为用户名字段建立了唯一索引，确保用户名的唯一性，同时为clazzId和deptId外键字段建立了普通索引，大幅提升关联查询性能
  2. 外键约束设计：通过ON DELETE CASCADE级联删除策略，当班级或部门被删除时，自动处理相关用户数据，维护数据完整性
  3. 字段长度优化：用户名和姓名字段限制为20字符，密码字段预留250字符长度以支持加密存储，邮箱地址等字段采用255字符标准长度

考试表与资源管理的关联设计

t_exam表与t_room表的关联设计展现了系统资源调度能力：

CREATE TABLE `t_exam` (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT '主键ID',
  `endDate` varchar(255) DEFAULT NULL COMMENT '结束日期',
  `name` varchar(255) DEFAULT NULL COMMENT '考试名称',
  `price` double DEFAULT NULL COMMENT '价格',
  PRIMARY KEY (`id`) USING BTREE,
  UNIQUE KEY `id` (`id`) USING BTREE
) ENGINE=InnoDB AUTO_INCREMENT=10 DEFAULT CHARSET=utf8 ROW_FORMAT=COMPACT COMMENT='考试表'

CREATE TABLE `t_room` (
  `id` int(11) NOT NULL AUTO_INCREMENT COMMENT '主键ID',
  `maxSite` int(11) DEFAULT NULL COMMENT '最大座位数',
  `name` varchar(255) DEFAULT NULL COMMENT '教室名称',
  `officeId` int(11) DEFAULT NULL COMMENT '办公室ID',
  PRIMARY KEY (`id`) USING BTREE,
  UNIQUE KEY `id` (`id`) USING BTREE,
  UNIQUE KEY `name` (`name`) USING BTREE,
  KEY `FKCB6261C67A28CAE3` (`officeId`) USING BTREE,
  CONSTRAINT `FKCB6261C67A28CAE3` FOREIGN KEY (`officeId`) REFERENCES `t_office` (`id`) ON DELETE CASCADE
) ENGINE=InnoDB AUTO_INCREMENT=5 DEFAULT CHARSET=utf8 ROW_FORMAT=COMPACT COMMENT='教室表'

这种设计支持复杂的考试场地分配逻辑，通过maxSite字段实现容量控制，确保场地资源合理利用。

核心功能实现深度解析

多角色登录与权限控制

系统实现了严格的多角色权限管理体系，不同角色登录后进入不同的功能界面。登录控制器采用统一的认证逻辑：

@Controller
@RequestMapping("/auth")
public class AuthController {

    @Autowired
    private UserService userService;

    @PostMapping("/login")
    public String login(@RequestParam String username,
                       @RequestParam String password,
                       HttpSession session) {
        User user = userService.authenticate(username, password);
        if (user != null) {
            session.setAttribute("currentUser", user);
            session.setAttribute("userType", user.getType());

            // 根据用户类型重定向到不同首页
            switch(user.getType()) {
                case "admin":
                    return "redirect:/admin/dashboard";
                case "teacher":
                    return "redirect:/teacher/dashboard";
                case "student":
                    return "redirect:/student/dashboard";
                default:
                    return "redirect:/login?error=invalid_role";
            }
        } else {
            return "redirect:/login?error=invalid_credentials";
        }
    }

    @GetMapping("/logout")
    public String logout(HttpSession session) {
        session.invalidate();
        return "redirect:/login";
    }
}

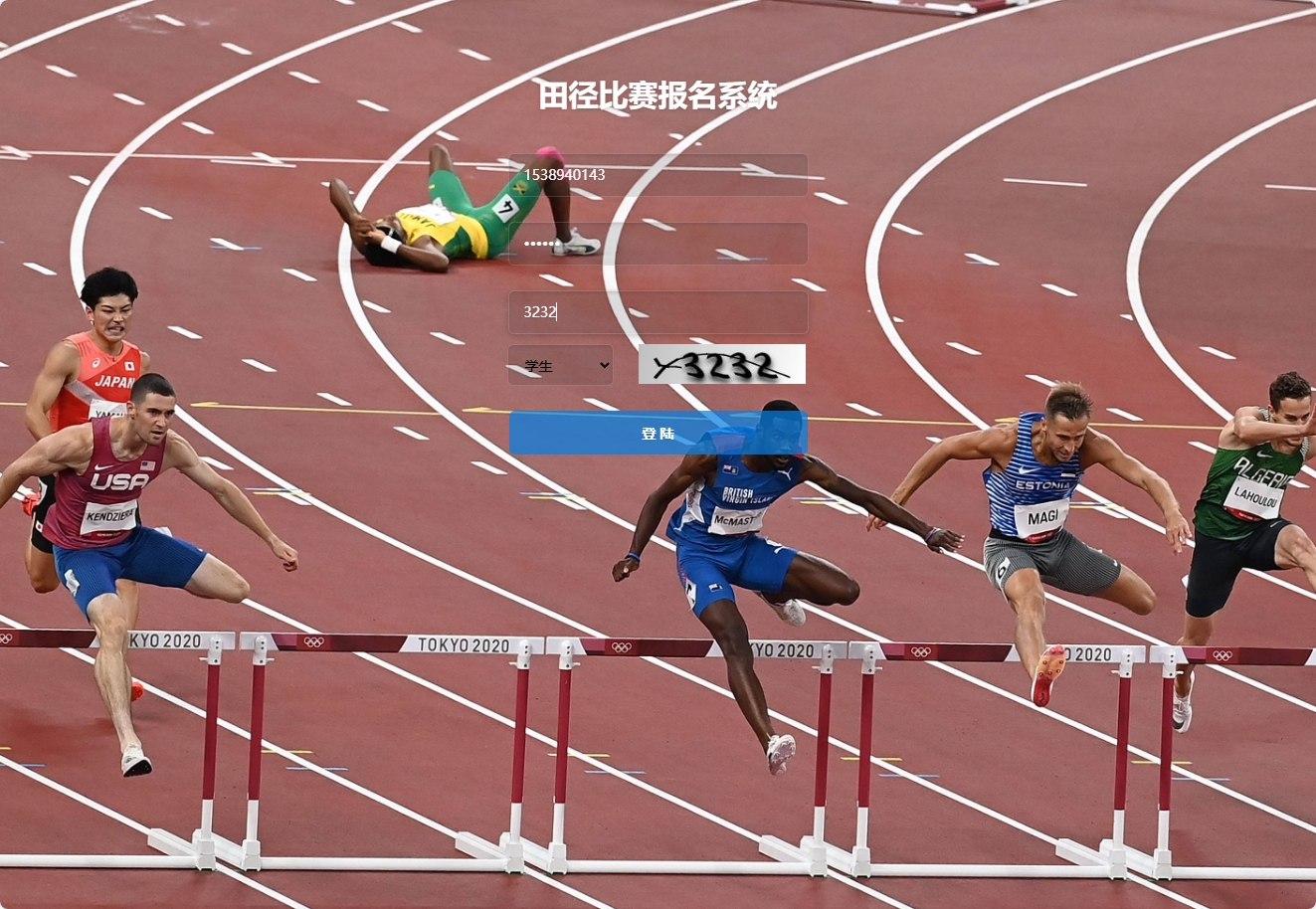

学生登录界面

权限拦截器确保只有授权用户才能访问相应功能：

@Component
public class AuthInterceptor implements HandlerInterceptor {

    @Override
    public boolean preHandle(HttpServletRequest request,
                           HttpServletResponse response,
                           Object handler) throws Exception {
        HttpSession session = request.getSession();
        String userType = (String) session.getAttribute("userType");
        String requestURI = request.getRequestURI();

        // 检查访问路径是否匹配用户角色权限
        if (requestURI.startsWith("/admin/") && !"admin".equals(userType)) {
            response.sendRedirect("/login?error=unauthorized");
            return false;
        }

        if (requestURI.startsWith("/teacher/") && !"teacher".equals(userType)) {
            response.sendRedirect("/login?error=unauthorized");
            return false;
        }

        return true;
    }
}

考试报名与管理的完整流程

考试报名功能采用事务性操作确保数据一致性，报名服务实现类包含完整的业务逻辑：

@Service
@Transactional
public class ExamRegistrationServiceImpl implements ExamRegistrationService {

    @Autowired
    private ExamMapper examMapper;

    @Autowired
    private RegistrationMapper registrationMapper;

    @Autowired
    private UserMapper userMapper;

    @Override
    public RegistrationResult registerExam(Integer userId, Integer examId) {
        // 检查考试是否存在且未过期
        Exam exam = examMapper.selectByPrimaryKey(examId);
        if (exam == null) {
            return RegistrationResult.fail("考试不存在");
        }

        if (isExamExpired(exam)) {
            return RegistrationResult.fail("考试已过期，无法报名");
        }

        // 检查用户是否已报名
        if (registrationMapper.existsRegistration(userId, examId)) {
            return RegistrationResult.fail("您已报名该考试");
        }

        // 创建报名记录
        Registration registration = new Registration();
        registration.setUserId(userId);
        registration.setExamId(examId);
        registration.setRegisterTime(new Date());
        registration.setStatus("pending");

        int result = registrationMapper.insert(registration);
        if (result > 0) {
            return RegistrationResult.success("报名成功，等待审核");
        } else {
            return RegistrationResult.fail("报名失败，请重试");
        }
    }

    private boolean isExamExpired(Exam exam) {
        SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd");
        try {
            Date endDate = sdf.parse(exam.getEndDate());
            return endDate.before(new Date());
        } catch (ParseException e) {
            return true;
        }
    }

    @Override
    @Transactional(readOnly = true)
    public List<Exam> getAvailableExams(Integer userId) {
        return examMapper.selectAvailableExams(userId);
    }
}

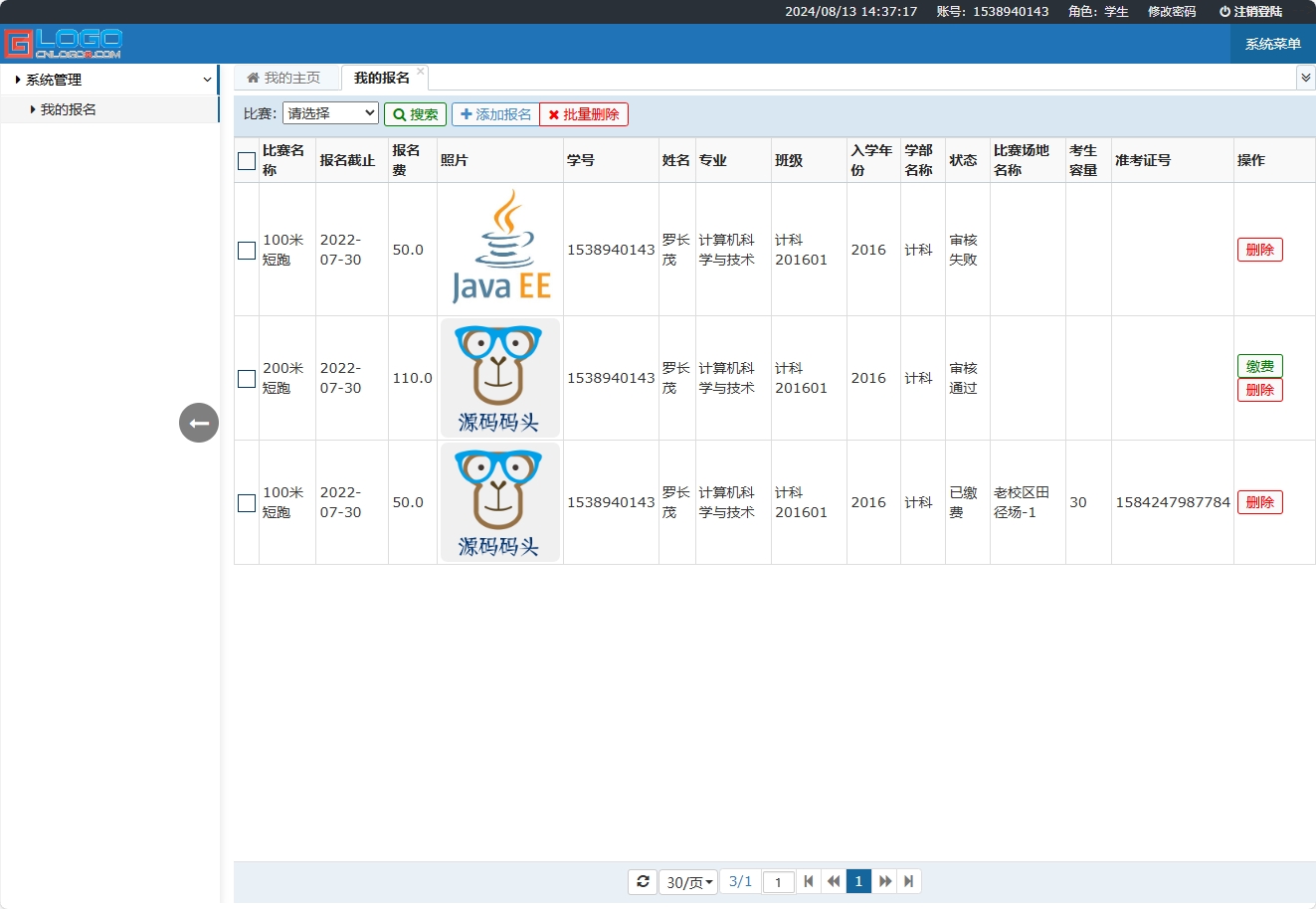

报名管理界面

场地分配与资源调度算法

场地分配功能采用智能算法确保资源最优利用，分配策略考虑容量、时间冲突等多重因素：

@Service
public class VenueAllocationService {

    @Autowired
    private RoomMapper roomMapper;

    @Autowired
    private ExamMapper examMapper;

    public AllocationResult allocateVenue(Integer examId, Integer requiredCapacity) {
        List<Room> availableRooms = roomMapper.selectAvailableRoomsByCapacity(requiredCapacity);

        if (availableRooms.isEmpty()) {
            return AllocationResult.fail("没有符合条件的场地");
        }

        // 优先选择容量最接近需求的场地
        Room bestRoom = findBestRoom(availableRooms, requiredCapacity);

        // 检查时间冲突
        if (hasTimeConflict(examId, bestRoom.getId())) {
            return AllocationResult.fail("该场地在考试时间已有安排");
        }

        // 执行分配
        int result = examMapper.updateExamRoom(examId, bestRoom.getId());
        if (result > 0) {
            return AllocationResult.success(bestRoom, "场地分配成功");
        } else {
            return AllocationResult.fail("场地分配失败");
        }
    }

    private Room findBestRoom(List<Room> rooms, int requiredCapacity) {
        return rooms.stream()
                .min(Comparator.comparingInt(room ->
                    Math.abs(room.getMaxSite() - requiredCapacity)))
                .orElse(null);
    }

    private boolean hasTimeConflict(Integer examId, Integer roomId) {
        Exam currentExam = examMapper.selectByPrimaryKey(examId);
        List<Exam> roomExams = examMapper.selectExamsByRoom(roomId);

        return roomExams.stream()
                .anyMatch(exam -> isTimeOverlap(exam, currentExam));
    }
}

场地分配管理

数据统计与报表生成

系统提供完善的数据统计功能，通过MyBatis的动态SQL实现复杂查询：

@Mapper
public interface StatisticsMapper {

    @Select({"<script>",
        "SELECT e.name as examName, COUNT(r.id) as registrationCount",
        "FROM t_exam e LEFT JOIN t_registration r ON e.id = r.examId",
        "WHERE 1=1",
        "<if test='startDate != null'> AND e.startDate &gt;= #{startDate} </if>",
        "<if test='endDate != null'> AND e.endDate &lt;= #{endDate} </if>",
        "GROUP BY e.id, e.name",
        "ORDER BY registrationCount DESC",
        "</script>"})
    List<ExamStatistic> getExamRegistrationStats(@Param("startDate") String startDate,
                                                @Param("endDate") String endDate);

    @Select("SELECT d.name as deptName, COUNT(u.id) as userCount " +
            "FROM t_dept d LEFT JOIN t_user u ON d.id = u.deptId " +
            "GROUP BY d.id, d.name " +
            "ORDER BY userCount DESC")
    List<DepartmentStatistic> getDepartmentUserStats();
}

对应的XML映射文件实现复杂统计逻辑：

<mapper namespace="com.ssm.mapper.StatisticsMapper">

    <resultMap id="examStatMap" type="com.ssm.bean.ExamStatistic">
        <result column="examName" property="examName"/>
        <result column="registrationCount" property="registrationCount"/>
    </resultMap>

    <select id="getExamRegistrationStats" resultMap="examStatMap">
        SELECT e.name as examName,
               COUNT(r.id) as registrationCount,
               AVG(r.score) as averageScore
        FROM t_exam e
        LEFT JOIN t_registration r ON e.id = r.examId
        <where>
            <if test="startDate != null and startDate != ''">
                AND e.startDate >= #{startDate}
            </if>
            <if test="endDate != null and endDate != ''">
                AND e.endDate <= #{endDate}
            </if>
        </where>
        GROUP BY e.id, e.name
        HAVING registrationCount > 0
        ORDER BY registrationCount DESC
    </select>
</mapper>

实体模型设计与领域建模

系统采用JPA注解进行实体类定义，确保对象关系映射的准确性。以班级实体为例：

@Entity
@Table(name = "t_clazz")
@NameStyle(Style.normal)
public class Clazz {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    @Column(name = "id", unique = true, nullable = false)
    private Integer id;

    @FD("专业")
    private String spec;

    @FD("班级")
    @Column(unique = true)
    private String name;

    @FD("入学年份")
    private String nian;

    // 关联的用户集合
    @OneToMany(mappedBy = "clazz", fetch = FetchType.LAZY)
    private Set<User> users = new HashSet<>();

    // getter和setter方法
    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getSpec() {
        return spec;
    }

    public void setSpec(String spec) {
        this.spec = spec;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name;
    }

    public String getNian() {
        return nian;
    }

    public void setNian(String nian) {
        this.nian = nian;
    }

    public Set<User> getUsers() {
        return users;
    }

    public void setUsers(Set<User> users) {
        this.users = users;
    }
}

用户实体类包含完整的个人信息和关联关系：

@Entity
@Table(name = "t_user")
public class User {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Integer id;

    private String type;

    @Column(unique = true, nullable = false, length = 20)
    private String uname;

    private String userAddress;
    private String userBirth;
    private String userEmail;
    private String userGender;

    @Column(nullable = false, length = 20)
    private String userName;

    @Column(nullable = false, length = 250)
    private String userPassword;

    private String userPhone;

    @ManyToOne
    @JoinColumn(name = "clazzId")
    private Clazz clazz;

    @ManyToOne
    @JoinColumn(name = "deptId")
    private Dept dept;

    @OneToMany(mappedBy = "user", cascade = CascadeType.ALL)
    private Set<Registration> registrations = new HashSet<>();

    // 完整的getter和setter方法
    public Integer getId() { return id; }
    public void setId(Integer id) { this.id = id; }

    public String getType() { return type; }
    public void setType(String type) { this.type = type; }

    public String getUname() { return uname; }
    public void setUname(String uname) { this.uname = uname; }

    // 其他getter/setter方法...
}

![班级管理界面](https://images.maancode.com/projects/ssm-sports-test-registration-system

本文关键词
SSM框架体育测试报名管理系统源码解析数据库设计

上下篇

上一篇
没有更多文章
下一篇
没有更多文章
