基于SSM框架的小区物业综合信息管理平台 - 源码深度解析

随着城市化进程的加速和居民生活品质需求的提升，传统物业管理模式面临着信息孤岛、服务响应滞后、人工操作繁琐等核心痛点。数字化转型升级成为物业行业发展的必然趋势，基于SSM框架构建的智慧社区管理平台应运而生。该平台通过整合物业信息管理与在线服务系统，实现了业务流程线上化闭环，显著提升了管理效率和服务质量。

平台采用经典的三层架构设计，前端使用HTML、CSS和JavaScript构建用户界面，后端基于Spring、Spring MVC和MyBatis框架实现业务逻辑处理，数据存储层选用MySQL关系型数据库。Maven作为项目构建和依赖管理工具，确保项目结构的规范性和可维护性。系统采用RESTful风格的API设计，前后端通过JSON格式进行数据交互，支持Ajax异步请求实现页面局部刷新，提升用户体验。

数据库架构设计与核心表分析

系统数据库包含11张核心表，涵盖业主信息、房产资料、收费项目、服务工单等业务实体。通过合理的索引设计和事务管理，保障数据一致性和查询性能。

业主信息表设计

业主信息表作为系统的核心基础表，采用分层设计理念，确保数据的完整性和可扩展性。

CREATE TABLE `owner` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `username` varchar(50) NOT NULL COMMENT '登录账号',
  `password` varchar(100) NOT NULL COMMENT '登录密码',
  `name` varchar(50) NOT NULL COMMENT '业主姓名',
  `idcard` varchar(20) DEFAULT NULL COMMENT '身份证号',
  `phone` varchar(20) DEFAULT NULL COMMENT '联系电话',
  `email` varchar(50) DEFAULT NULL COMMENT '电子邮箱',
  `house_id` int(11) DEFAULT NULL COMMENT '房产编号',
  `status` int(1) DEFAULT '1' COMMENT '状态：0-禁用 1-正常',
  `create_time` datetime DEFAULT CURRENT_TIMESTAMP,
  `update_time` datetime DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
  PRIMARY KEY (`id`),
  UNIQUE KEY `uk_username` (`username`),
  UNIQUE KEY `uk_idcard` (`idcard`),
  KEY `idx_house_id` (`house_id`),
  KEY `idx_phone` (`phone`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='业主信息表';

该表设计体现了多个技术亮点：使用AUTO_INCREMENT自增主键确保数据唯一性；对用户名、身份证号建立唯一索引防止数据重复；为房产编号和电话号码建立普通索引提升查询效率；通过create_time和update_time时间戳字段实现数据变更追踪；状态字段采用枚举值设计，便于业务逻辑控制。

费用台账表设计

费用管理是物业系统的核心业务模块，台账表设计充分考虑费用核算的复杂性和灵活性。

CREATE TABLE `expense` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `owner_id` int(11) NOT NULL COMMENT '业主ID',
  `type` int(2) NOT NULL COMMENT '费用类型：1-物业费 2-停车费 3-水电费 4-燃气费',
  `amount` decimal(10,2) NOT NULL COMMENT '费用金额',
  `cycle` varchar(20) NOT NULL COMMENT '计费周期',
  `due_date` date NOT NULL COMMENT '缴费截止日期',
  `status` int(1) DEFAULT '0' COMMENT '状态：0-未缴费 1-已缴费',
  `payment_time` datetime DEFAULT NULL COMMENT '缴费时间',
  `remark` varchar(200) DEFAULT NULL COMMENT '备注信息',
  `create_time` datetime DEFAULT CURRENT_TIMESTAMP,
  PRIMARY KEY (`id`),
  KEY `idx_owner_id` (`owner_id`),
  KEY `idx_type` (`type`),
  KEY `idx_due_date` (`due_date`),
  KEY `idx_status` (`status`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='费用台账表';

费用表采用多维度索引策略，针对业主ID、费用类型、截止日期和状态字段建立索引，确保大数据量下的查询性能。金额字段使用decimal(10,2)类型保证财务计算的精确性，计费周期字段采用字符串存储，支持"2024-01"、"2024-Q1"等多种格式，满足不同收费模式的需求。

服务工单表设计

报修服务模块的表结构设计注重流程跟踪和状态管理，实现服务全生命周期可追溯。

CREATE TABLE `repair` (
  `id` int(11) NOT NULL AUTO_INCREMENT,
  `owner_id` int(11) NOT NULL COMMENT '报修业主',
  `title` varchar(100) NOT NULL COMMENT '报修标题',
  `description` text NOT NULL COMMENT '问题描述',
  `address` varchar(200) NOT NULL COMMENT '维修地址',
  `phone` varchar(20) NOT NULL COMMENT '联系电话',
  `type` int(2) NOT NULL COMMENT '报修类型',
  `status` int(1) DEFAULT '0' COMMENT '状态：0-待受理 1-处理中 2-已完成 3-已关闭',
  `assignee` int(11) DEFAULT NULL COMMENT '指派人员',
  `priority` int(1) DEFAULT '1' COMMENT '优先级：1-低 2-中 3-高',
  `plan_time` datetime DEFAULT NULL COMMENT '计划处理时间',
  `complete_time` datetime DEFAULT NULL COMMENT '实际完成时间',
  `feedback` text COMMENT '处理反馈',
  `rating` int(1) DEFAULT NULL COMMENT '业主评分',
  `create_time` datetime DEFAULT CURRENT_TIMESTAMP,
  `update_time` datetime DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
  PRIMARY KEY (`id`),
  KEY `idx_owner_id` (`owner_id`),
  KEY `idx_status` (`status`),
  KEY `idx_assignee` (`assignee`),
  KEY `idx_priority` (`priority`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='报修工单表';

工单表通过状态字段实现工作流控制，支持从报修提交到服务评价的完整业务流程。优先级字段确保紧急问题得到优先处理，计划处理时间和实际完成时间字段用于统计分析服务效率。业主评分和反馈字段形成服务质量闭环，为持续改进提供数据支撑。

核心功能模块深度解析

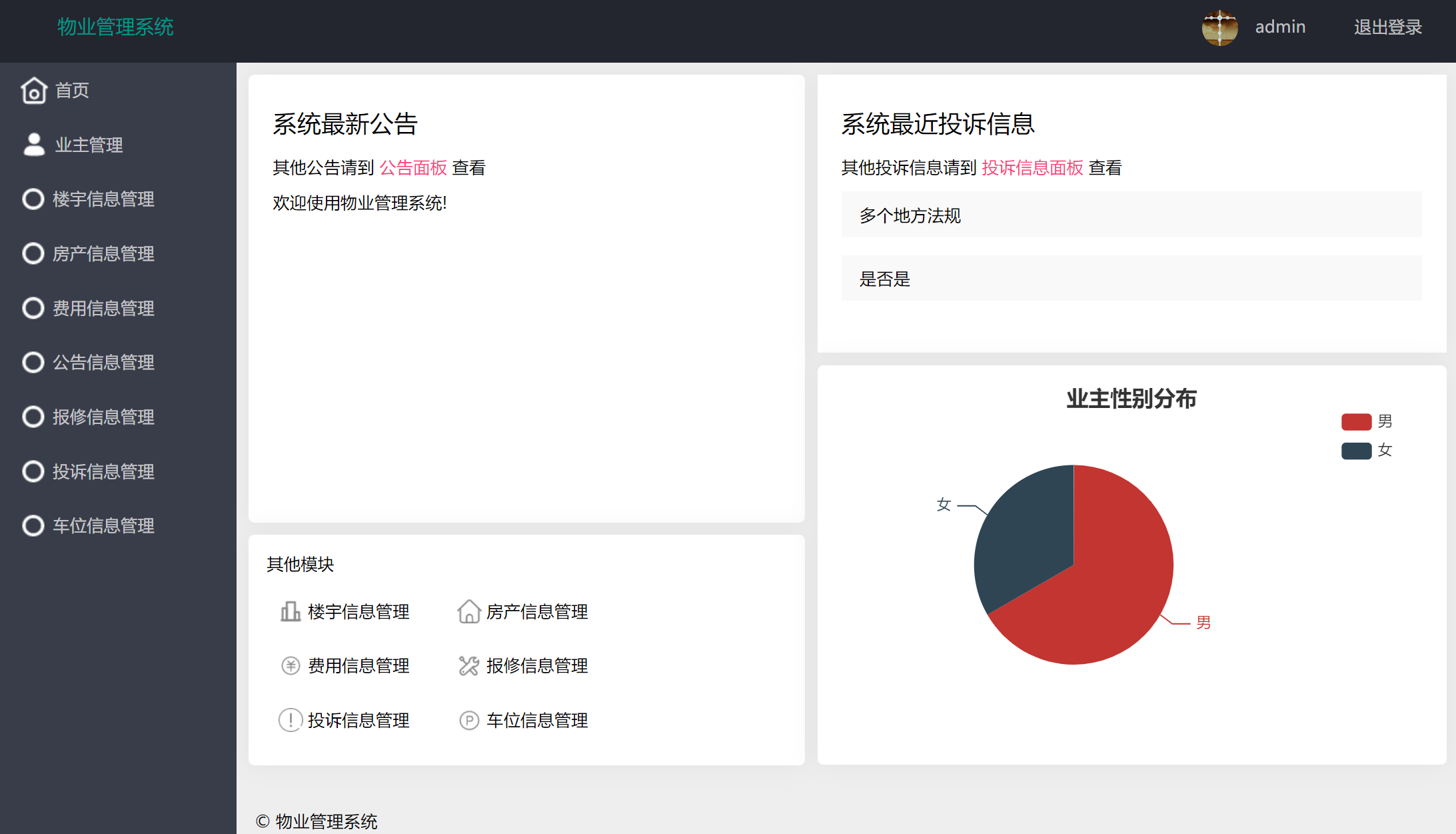

智能仪表盘与数据可视化

系统首页集成智能仪表盘，通过图表形式直观展示关键业务指标，为管理人员提供决策支持。

仪表盘采用ECharts图表库实现数据可视化，后端通过Spring MVC控制器提供聚合数据接口：

@Controller
@RequestMapping("/dashboard")
public class DashboardController {

    @Autowired
    private DashboardService dashboardService;

    @RequestMapping("/summary")
    @ResponseBody
    public Map<String, Object> getDashboardSummary() {
        Map<String, Object> result = new HashMap<>();

        // 获取费用统计
        ExpenseSummary expenseSummary = dashboardService.getExpenseSummary();
        result.put("expenseStats", expenseSummary);

        // 获取报修统计
        RepairSummary repairSummary = dashboardService.getRepairSummary();
        result.put("repairStats", repairSummary);

        // 获取投诉统计
        ComplaintSummary complaintSummary = dashboardService.getComplaintSummary();
        result.put("complaintStats", complaintSummary);

        // 获取公告信息
        List<Announcement> recentAnnouncements = dashboardService.getRecentAnnouncements();
        result.put("announcements", recentAnnouncements);

        return result;
    }

    @RequestMapping("/chart/expense")
    @ResponseBody
    public List<ExpenseChartDTO> getExpenseChartData(@RequestParam String period) {
        return dashboardService.getExpenseTrend(period);
    }
}

服务层通过MyBatis动态SQL实现多维度数据统计：

<!-- 费用统计查询 -->
<select id="selectExpenseSummary" resultType="ExpenseSummary">
    SELECT
        COUNT(*) as totalCount,
        SUM(CASE WHEN status = 1 THEN amount ELSE 0 END) as paidAmount,
        SUM(CASE WHEN status = 0 AND due_date < CURDATE() THEN amount ELSE 0 END) as overdueAmount,
        AVG(amount) as averageAmount
    FROM expense
    WHERE create_time >= DATE_SUB(CURDATE(), INTERVAL 30 DAY)
</select>

<!-- 费用趋势分析 -->
<select id="selectExpenseTrend" parameterType="map" resultType="ExpenseChartDTO">
    SELECT
        DATE_FORMAT(create_time, #{dateFormat}) as period,
        type as expenseType,
        SUM(amount) as totalAmount,
        COUNT(*) as transactionCount
    FROM expense
    WHERE create_time >= DATE_SUB(CURDATE(), INTERVAL #{interval} DAY)
    GROUP BY period, expenseType
    ORDER BY period ASC
</select>

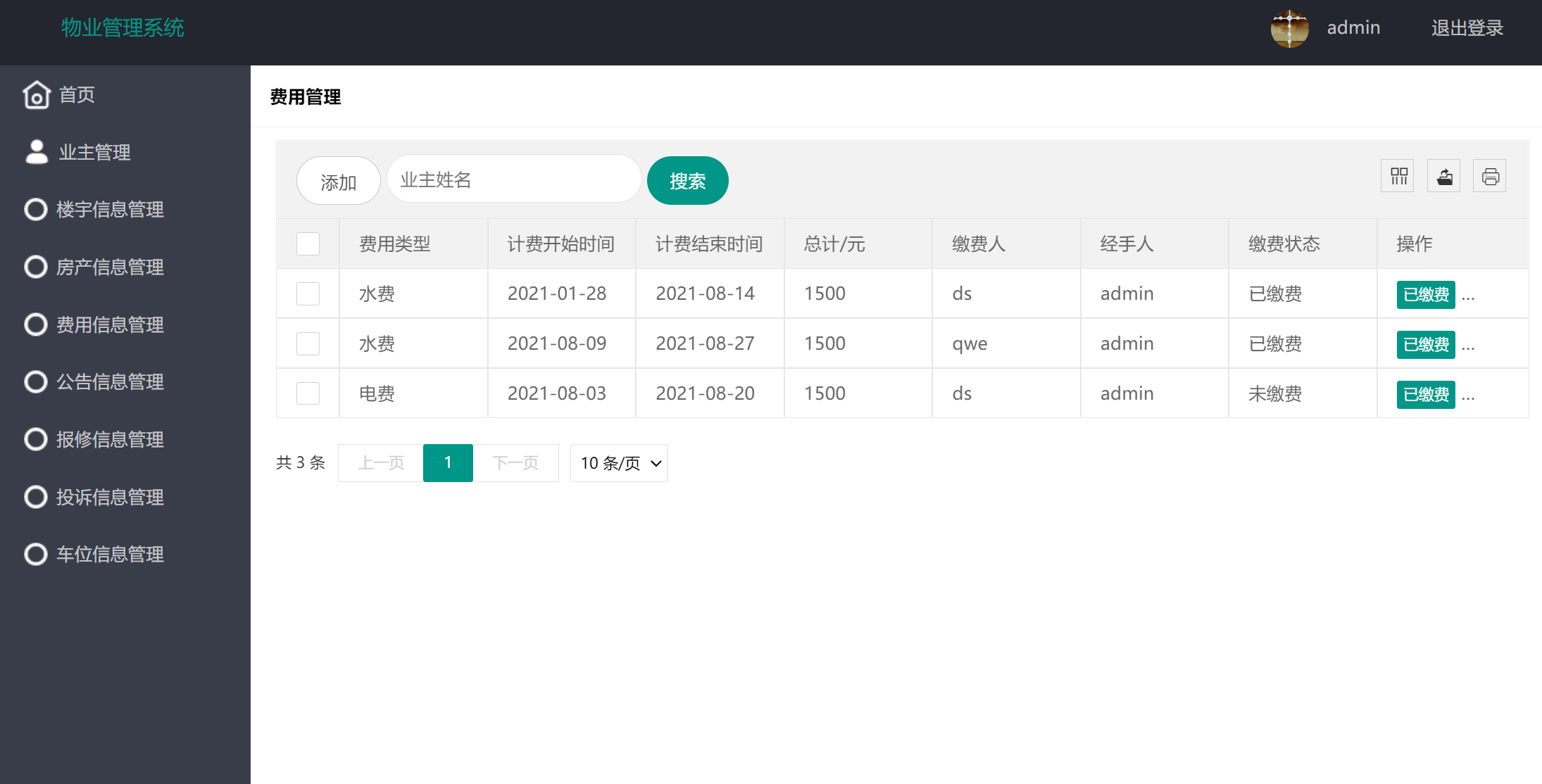

费用管理模块实现

费用管理模块支持多种收费项目的灵活配置和自动化计算，提供完整的费用生命周期管理。

费用生成服务采用策略模式实现不同收费类型的计算逻辑：

@Service
public class ExpenseGenerateService {

    @Autowired
    private ExpenseStrategyFactory strategyFactory;

    public void generateMonthlyExpenses(Date billingDate) {
        // 获取所有需要生成费用的业主
        List<Owner> owners = ownerMapper.selectAllActiveOwners();

        for (Owner owner : owners) {
            // 生成物业费
            generatePropertyFee(owner, billingDate);

            // 生成停车费（如果业主有车位）
            if (owner.getParkingSpace() != null) {
                generateParkingFee(owner, billingDate);
            }
        }
    }

    private void generatePropertyFee(Owner owner, Date billingDate) {
        ExpenseStrategy strategy = strategyFactory.getStrategy(ExpenseType.PROPERTY_FEE);
        Expense expense = strategy.calculate(owner, billingDate);

        if (expense != null) {
            expenseMapper.insert(expense);
        }
    }

    private void generateParkingFee(Owner owner, Date billingDate) {
        ExpenseStrategy strategy = strategyFactory.getStrategy(ExpenseType.PARKING_FEE);
        Expense expense = strategy.calculate(owner, billingDate);

        if (expense != null) {
            expenseMapper.insert(expense);
        }
    }
}

// 费用计算策略接口
public interface ExpenseStrategy {
    Expense calculate(Owner owner, Date billingDate);
}

// 物业费计算策略
@Component
public class PropertyFeeStrategy implements ExpenseStrategy {

    @Value("${property.fee.rate}")
    private BigDecimal feeRate;

    @Override
    public Expense calculate(Owner owner, Date billingDate) {
        Expense expense = new Expense();
        expense.setOwnerId(owner.getId());
        expense.setType(ExpenseType.PROPERTY_FEE.getValue());

        // 根据房屋面积计算费用
        BigDecimal area = owner.getHouse().getArea();
        BigDecimal amount = area.multiply(feeRate);

        expense.setAmount(amount);
        expense.setCycle(DateUtil.formatYearMonth(billingDate));
        expense.setDueDate(DateUtil.addMonths(billingDate, 1));

        return expense;
    }
}

费用查询功能支持多条件组合筛选和分页显示：

@RestController
@RequestMapping("/api/expense")
public class ExpenseApiController {

    @Autowired
    private ExpenseService expenseService;

    @GetMapping("/list")
    public PageResult<ExpenseVO> getExpenseList(ExpenseQuery query) {
        return expenseService.getExpenseList(query);
    }

    @PostMapping("/batch-update-status")
    public Result batchUpdateStatus(@RequestBody BatchUpdateRequest request) {
        expenseService.batchUpdateStatus(request.getIds(), request.getStatus());
        return Result.success();
    }

    @GetMapping("/export")
    public void exportExpenseData(ExpenseQuery query, HttpServletResponse response) {
        List<ExpenseVO> data = expenseService.getExpenseListForExport(query);

        // 使用EasyExcel导出数据
        ExcelUtil.export(response, "费用数据导出", "费用明细", data, ExpenseVO.class);
    }
}

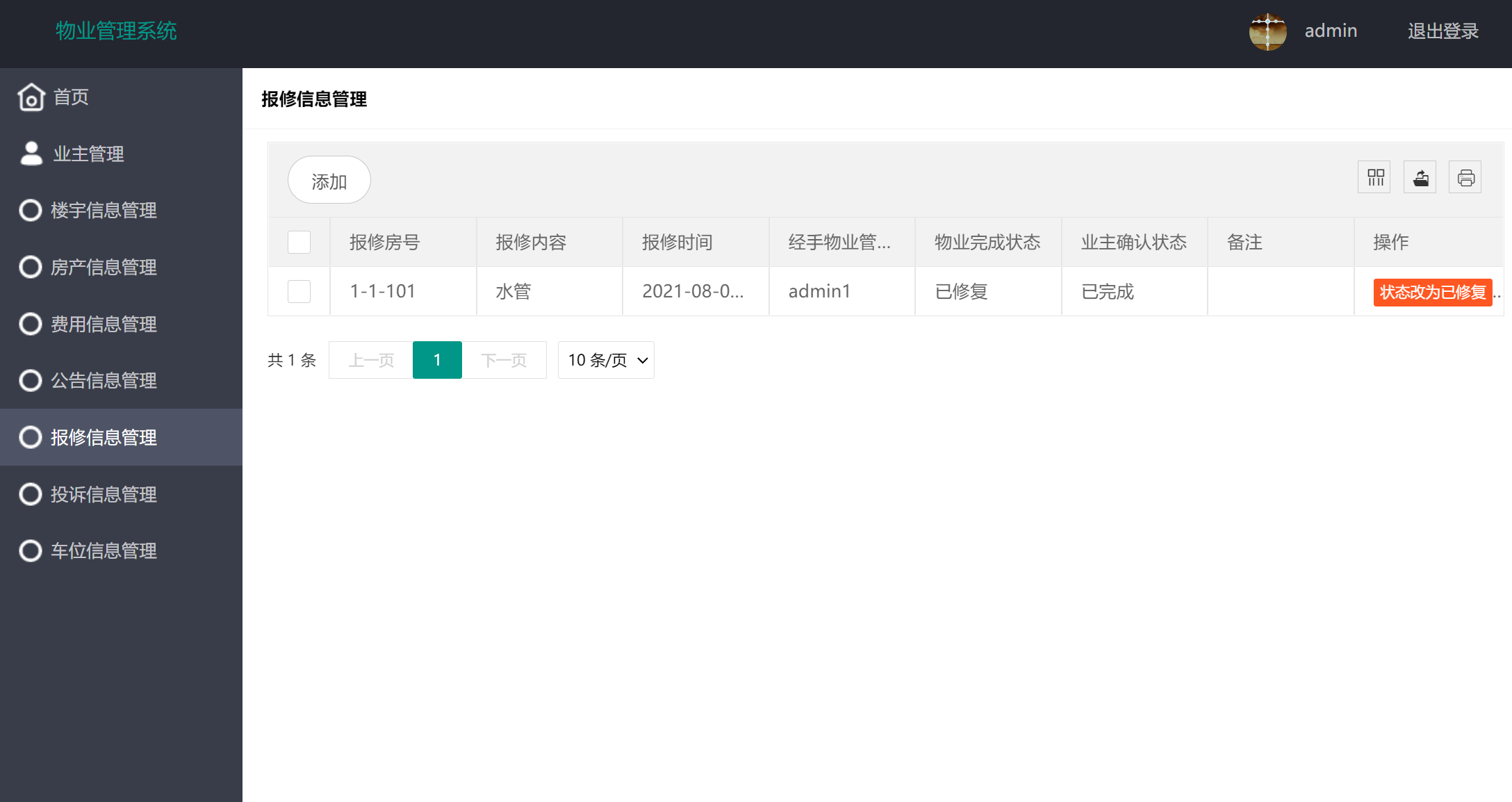

报修服务流程管理

报修模块实现从业主报修到工单完成的全流程数字化管理，支持工单分配、进度跟踪和满意度评价。

报修工单状态机管理确保业务流程的规范性：

@Service
public class RepairWorkflowService {

    @Autowired
    private RepairMapper repairMapper;

    @Autowired
    private RepairStatusTransitionValidator statusValidator;

    @Transactional
    public void changeStatus(Long repairId, Integer newStatus, String operator, String remark) {
        Repair repair = repairMapper.selectById(repairId);

        // 验证状态转换是否合法
        if (!statusValidator.isValidTransition(repair.getStatus(), newStatus)) {
            throw new BusinessException("状态转换不合法");
        }

        // 更新工单状态
        repair.setStatus(newStatus);
        repair.setUpdateTime(new Date());

        // 记录状态变更历史
        RepairStatusHistory history = new RepairStatusHistory();
        history.setRepairId(repairId);
        history.setFromStatus(repair.getStatus());
        history.setToStatus(newStatus);
        history.setOperator(operator);
        history.setRemark(remark);
        history.setCreateTime(new Date());

        repairMapper.updateStatus(repair);
        repairStatusHistoryMapper.insert(history);

        // 发送状态变更通知
        if (newStatus == RepairStatus.ASSIGNED.getValue()) {
            notifyAssignee(repair);
        } else if (newStatus == RepairStatus.COMPLETED.getValue()) {
            notifyOwnerForFeedback(repair);
        }
    }

    private void notifyAssignee(Repair repair) {
        // 发送短信或APP推送通知维修人员
        NotificationMessage message = new NotificationMessage();
        message.setUserId(repair.getAssignee());
        message.setTitle("新的维修任务");
        message.setContent("您有新的维修任务需要处理，请及时查看");
        message.setType(NotificationType.REPAIR_ASSIGNED);

        notificationService.send(message);
    }
}

工单分配算法考虑维修人员的专业技能和工作负载：

@Service
public class RepairAssignService {

    @Autowired
    private StaffMapper staffMapper;

    public Staff assignRepair(Repair repair) {
        // 根据报修类型筛选具备相应技能的维修人员
        List<Staff> candidates = staffMapper.selectByRepairType(repair.getType());

        if (candidates.isEmpty()) {
            throw new BusinessException("没有合适的维修人员");
        }

        // 使用加权评分算法选择最优维修人员
        Staff bestCandidate = null;
        double maxScore = -1;

        for (Staff candidate : candidates) {
            double score = calculateAssignmentScore(candidate, repair);
            if (score > maxScore) {
                maxScore = score;
                bestCandidate = candidate;
            }
        }

        return bestCandidate;
    }

    private double calculateAssignmentScore(Staff staff, Repair repair) {
        double score = 0;

        // 技能匹配度（40%权重）
        double skillMatch = calculateSkillMatch(staff, repair);
        score += skillMatch * 0.4;

        // 工作负载（30%权重）
        double workload = calculateWorkloadFactor(staff);
        score += workload * 0.3;

        // 距离因素（20%权重）
        double distance = calculateDistanceFactor(staff, repair);
        score += distance * 0.2;

        // 用户评价（10%权重）
        double rating = staff.getAvgRating() / 5.0;
        score += rating * 0.1;

        return score;
    }
}

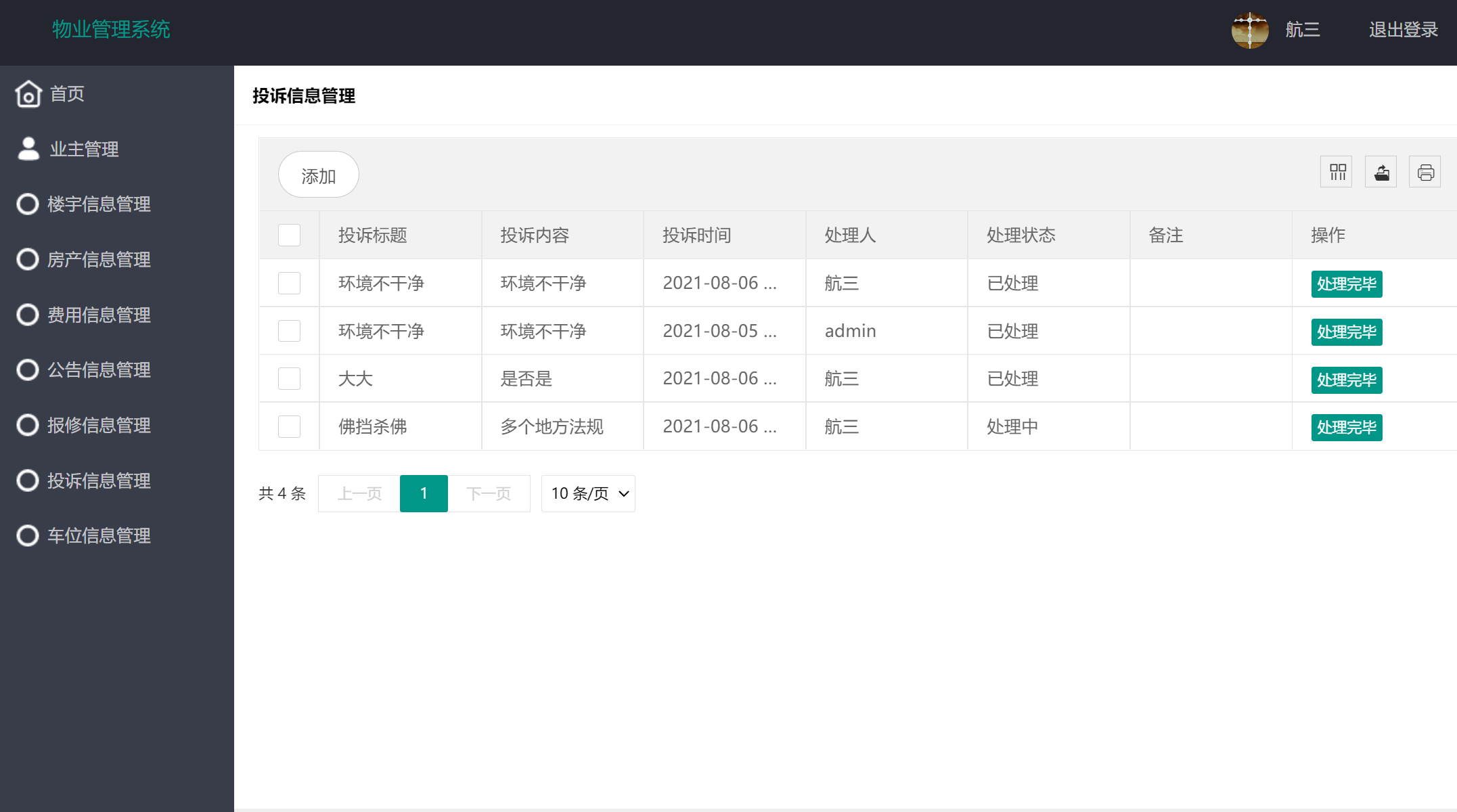

投诉建议管理

投诉建议模块建立业主与物业之间的沟通桥梁，实现投诉受理、处理和反馈的完整闭环。

投诉处理流程采用责任链模式，确保不同类型投诉得到专业化处理：

@Service
public class ComplaintProcessService {

    @Autowired
    private List<ComplaintHandler> handlers;

    @Transactional
    public void processComplaint(Complaint complaint) {
        ComplaintHandler handler = getSuitableHandler(complaint);

        if (handler != null) {
            handler.handle(complaint);

            // 记录处理日志
            ComplaintProcessLog log = new ComplaintProcessLog();
            log.setComplaintId(complaint.getId());
            log.setHandler(handler.getClass().getSimpleName());
            log.setProcessTime(new Date());
            log.setResult("已分配处理");

            complaintProcessLogMapper.insert(log);
        } else {
            throw new BusinessException("找不到合适的投诉处理器");
        }
    }

    private ComplaintHandler getSuitableHandler(Complaint complaint) {
        for (ComplaintHandler handler : handlers) {
            if (handler.canHandle(complaint)) {
                return handler;
            }
        }
        return null;
    }
}

// 投诉处理接口
public interface ComplaintHandler {
    boolean canHandle(Complaint complaint);
    void handle(Complaint complaint);
}

// 环境卫生投诉处理器
@Component
public class EnvironmentComplaintHandler implements ComplaintHandler {

    @Autowired
    private CleanlinessService cleanlinessService;

    @Override
    public boolean canHandle(Complaint complaint) {
        return complaint.getType() == ComplaintType.ENVIRONMENT;
    }

    @Override
    public void handle(Complaint complaint) {
        // 分析投诉内容
        EnvironmentIssue issue = analyzeEnvironmentIssue(complaint.getContent());

        // 调度清洁服务
        cleanlinessService.scheduleCleanup(issue);

        // 更新投诉状态
        complaint.setStatus(ComplaintStatus.PROCESSING);
        complaint.setAssignee("环境卫生小组");
        complaint.setUpdateTime(new Date());
    }

    private EnvironmentIssue analyzeEnvironmentIssue(String content) {
        // 使用自然语言处理技术分析投诉内容
        // 识别问题类型、严重程度、位置信息等
        return new EnvironmentIssue();
    }
}

实体模型设计与业务逻辑封装

系统采用领域驱动设计（DDD
