在当今数字化浪潮下，汽车租赁行业正经历着从传统人工操作向智能化管理的深刻变革。传统租赁模式依赖纸质记录和人工调度，存在信息更新滞后、车辆状态不透明、订单处理效率低等痛点。针对这些行业需求，我们开发了一套基于SSM框架的汽车租赁管理平台，通过信息化手段实现业务流程的全链路管控。
系统架构与技术栈
该平台采用经典的SSM（Spring + Spring MVC + MyBatis）三层架构，结合Maven进行项目构建管理。前端使用JSP模板引擎进行页面渲染，后端数据持久层采用MyBatis框架，数据库选用MySQL 5.7版本。
技术架构核心组成：
- 表现层：Spring MVC框架负责请求路由和视图渲染，通过@Controller注解定义业务端点
- 业务层：Spring IoC容器管理Service组件的依赖注入和事务控制
- 持久层：MyBatis通过XML映射文件实现ORM操作，支持动态SQL生成
- 数据层：MySQL数据库采用InnoDB存储引擎，确保事务ACID特性
<!-- Spring MVC配置示例 -->
<bean class="org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping"/>
<bean class="org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter">
<property name="messageConverters">
<list>
<ref bean="mappingJackson2HttpMessageConverter"/>
</list>
</property>
</bean>
数据库设计亮点分析
订单信息表（dingdanxinxi）设计优化
订单表作为业务核心表，其设计直接影响到系统性能和数据处理能力。该表采用纵向分字段存储策略，将订单基本信息与业务状态分离存储。
CREATE TABLE `dingdanxinxi` (
`id` int(10) unsigned NOT NULL AUTO_INCREMENT,
`dingdanbianhao` varchar(50) NOT NULL COMMENT '订单编号',
`dingdanxinxi` text NOT NULL COMMENT '订单信息',
`zongjijine` decimal(18,2) NOT NULL COMMENT '总计金额',
`shouhuoren` varchar(50) NOT NULL COMMENT '收货人',
`dianhua` varchar(50) NOT NULL COMMENT '电话',
`dizhi` varchar(255) NOT NULL COMMENT '地址',
`beizhu` text NOT NULL COMMENT '备注',
`zhuangtai` varchar(255) NOT NULL COMMENT '状态',
`xiadanren` varchar(50) NOT NULL COMMENT '下单人',
`iszf` varchar(10) NOT NULL DEFAULT '否' COMMENT '是否支付',
`addtime` timestamp NOT NULL DEFAULT current_timestamp() COMMENT '添加时间',
PRIMARY KEY (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=10 DEFAULT CHARSET=utf8 COMMENT='订单信息'
设计亮点分析：
- 订单编号独立字段：
dingdanbianhao采用varchar类型，支持自定义编号规则，便于业务追溯 - 金额精度控制：
zongjijine使用decimal(18,2)类型，确保财务计算的精确性 - 状态字段分离：
zhuangtai和iszf分别记录订单状态和支付状态，支持复杂状态流转 - 时间戳自动生成：
addtime设置为timestamp类型并默认当前时间，避免业务层时间处理不一致
购物车表（gouwuche）业务逻辑设计
购物车表设计体现了临时数据与持久化数据的结合，支持用户跨会话的选车操作。
CREATE TABLE `gouwuche` (
`id` int(10) unsigned NOT NULL AUTO_INCREMENT,
`carxinxiid` int(10) unsigned NOT NULL COMMENT '二手车信息id',
`carbianhao` varchar(50) NOT NULL COMMENT '二手车编号',
`carmingcheng` varchar(255) NOT NULL COMMENT '二手车名称',
`fenlei` int(10) unsigned NOT NULL COMMENT '分类',
`xiaoshoujiage` decimal(18,2) NOT NULL COMMENT '销售价格',
`goumaishuliang` int(11) NOT NULL COMMENT '购买数量',
`xiaoji` decimal(18,2) NOT NULL COMMENT '小计',
`goumairen` varchar(50) NOT NULL COMMENT '购买人',
`addtime` timestamp NOT NULL DEFAULT current_timestamp() COMMENT '添加时间',
PRIMARY KEY (`id`),
KEY `gouwuche_carxinxiid_index` (`carxinxiid`),
KEY `gouwuche_fenlei_index` (`fenlei`)
) ENGINE=InnoDB AUTO_INCREMENT=13 DEFAULT CHARSET=utf8 COMMENT='购物车'
索引优化策略：
- carxinxiid索引：加速根据车辆ID查询购物车项的性能
- fenlei索引：支持按车辆分类快速筛选购物车内容
- 复合索引考虑：对于频繁执行的
goumairen+addtime查询场景，可考虑建立复合索引
核心功能实现解析

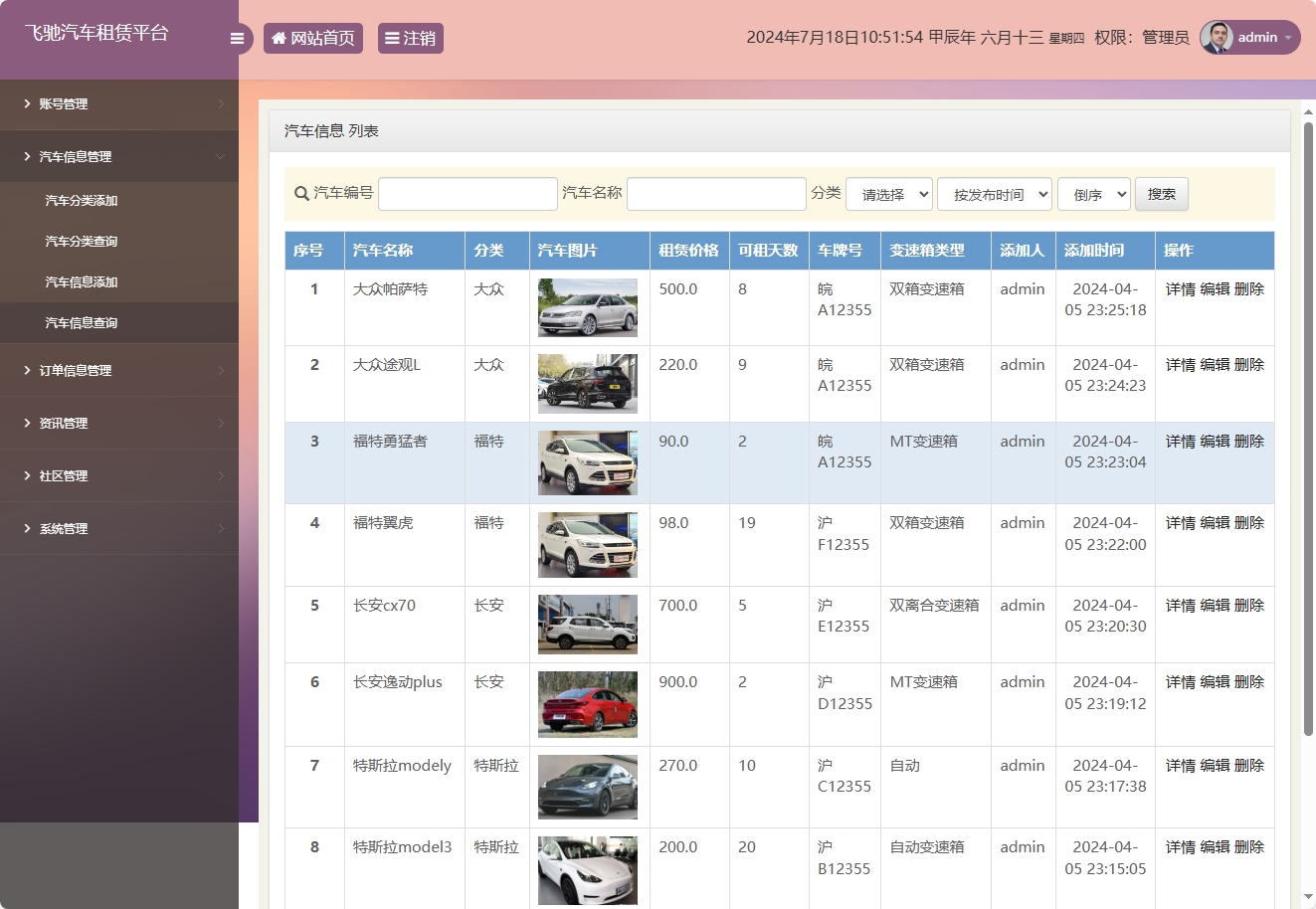

1. 车辆信息管理模块
车辆管理模块采用CRUD标准化设计，通过MyBatis的动态SQL实现灵活查询。
@Controller
@RequestMapping("/carinfo")
public class CarInfoController {
@Autowired
private CarInfoService carInfoService;
/**
* 多条件分页查询车辆信息
*/
@RequestMapping("/list")
public String list(@RequestParam Map<String, Object> params,
Model model) {
// 构建查询条件
Example example = new Example(CarInfo.class);
Example.Criteria criteria = example.createCriteria();
if (params.get("brand") != null) {
criteria.andLike("brand", "%" + params.get("brand") + "%");
}
if (params.get("minPrice") != null) {
criteria.andGreaterThanOrEqualTo("dailyPrice",
new BigDecimal(params.get("minPrice").toString()));
}
// 分页查询
PageHelper.startPage(Integer.parseInt(params.get("page").toString()), 10);
List<CarInfo> carList = carInfoService.selectByExample(example);
PageInfo<CarInfo> pageInfo = new PageInfo<>(carList);
model.addAttribute("pageInfo", pageInfo);
model.addAttribute("carList", carList);
return "carinfo_list";
}
/**
* 更新车辆状态
*/
@RequestMapping("/updateStatus")
@ResponseBody
public Map<String, Object> updateStatus(@RequestParam Integer carId,
@RequestParam String status) {
Map<String, Object> result = new HashMap<>();
try {
CarInfo car = new CarInfo();
car.setId(carId);
car.setStatus(status);
carInfoService.updateByPrimaryKeySelective(car);
result.put("success", true);
result.put("message", "状态更新成功");
} catch (Exception e) {
result.put("success", false);
result.put("message", "状态更新失败");
}
return result;
}
}

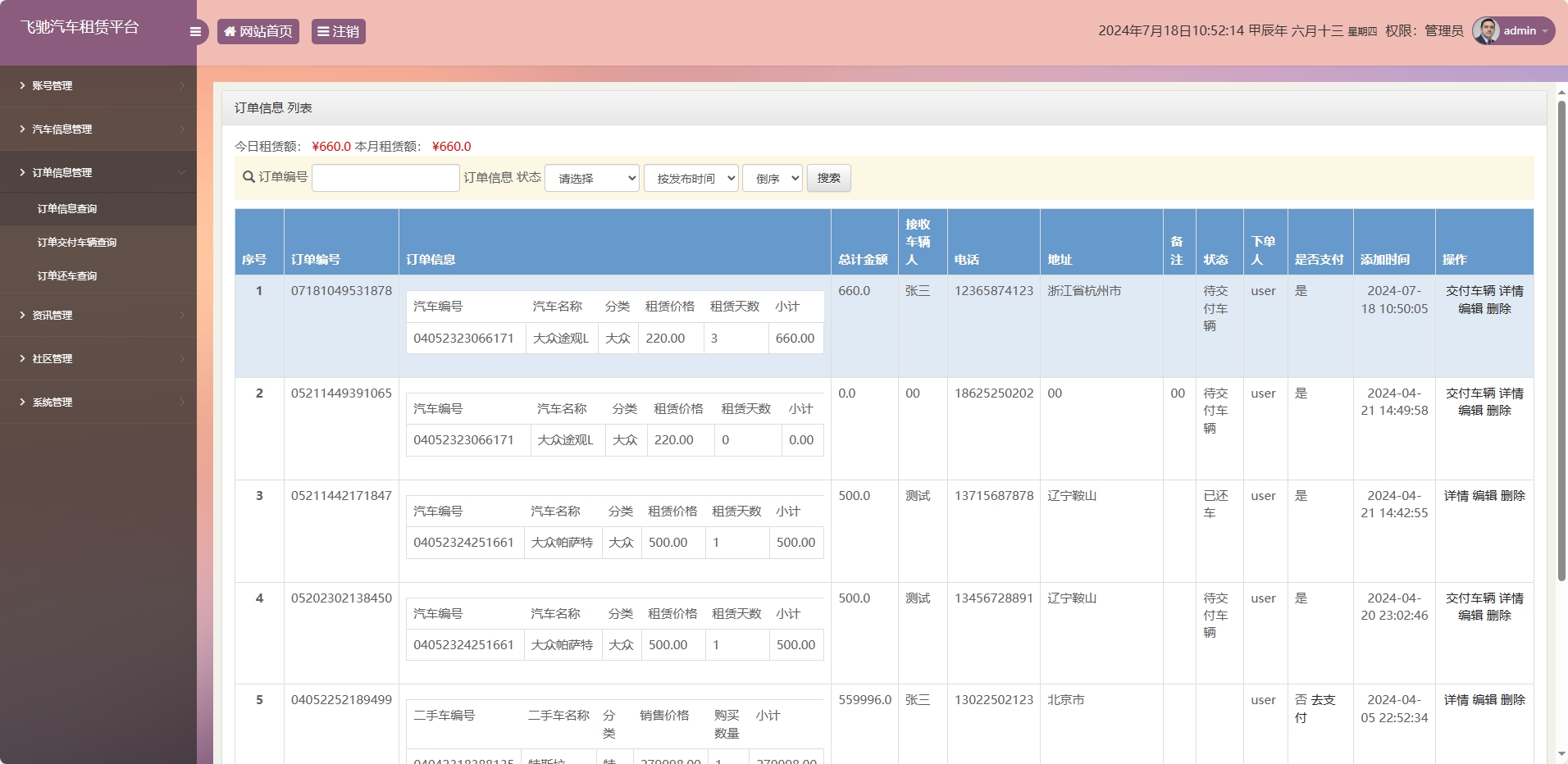

2. 订单处理流程实现
订单处理涉及多个数据表的原子操作，通过Spring声明式事务确保数据一致性。
@Service
@Transactional
public class OrderService {
@Autowired
private OrderMapper orderMapper;
@Autowired
private CarInfoMapper carInfoMapper;
@Autowired
private ShoppingCartMapper cartMapper;
/**
* 创建租赁订单
*/
public OrderResult createRentalOrder(OrderRequest request) {
// 1. 验证车辆可用性
CarInfo car = carInfoMapper.selectByPrimaryKey(request.getCarId());
if (!"可用".equals(car.getStatus())) {
throw new BusinessException("车辆当前不可用");
}
// 2. 计算租赁费用
BigDecimal totalAmount = calculateRentalFee(
request.getStartDate(),
request.getEndDate(),
car.getDailyPrice()
);
// 3. 创建订单记录
OrderInfo order = new OrderInfo();
order.setOrderNumber(generateOrderNumber());
order.setCarId(request.getCarId());
order.setUserId(request.getUserId());
order.setTotalAmount(totalAmount);
order.setStatus("待支付");
order.setCreateTime(new Date());
orderMapper.insert(order);
// 4. 更新车辆状态
car.setStatus("已预订");
carInfoMapper.updateByPrimaryKey(car);
// 5. 清空购物车对应项
ShoppingCartExample example = new ShoppingCartExample();
example.createCriteria()
.andUserIdEqualTo(request.getUserId())
.andCarIdEqualTo(request.getCarId());
cartMapper.deleteByExample(example);
return new OrderResult(order.getId(), order.getOrderNumber());
}
private String generateOrderNumber() {
return "ORD" + System.currentTimeMillis() +
String.format("%04d", new Random().nextInt(10000));
}
}
3. 用户权限管理设计
系统采用基于角色的访问控制（RBAC）模型，通过拦截器实现权限验证。
@Component
public class AuthInterceptor implements HandlerInterceptor {
@Override
public boolean preHandle(HttpServletRequest request,
HttpServletResponse response,
Object handler) throws Exception {
// 检查登录状态
HttpSession session = request.getSession();
User user = (User) session.getAttribute("currentUser");
if (user == null) {
response.sendRedirect(request.getContextPath() + "/login");
return false;
}
// 检查权限
if (handler instanceof HandlerMethod) {
HandlerMethod method = (HandlerMethod) handler;
RequiredPermission permission = method.getMethodAnnotation(
RequiredPermission.class);
if (permission != null && !hasPermission(user, permission.value())) {
response.sendError(403, "权限不足");
return false;
}
}
return true;
}
private boolean hasPermission(User user, String requiredPermission) {
// 从数据库或缓存中获取用户权限列表
Set<String> userPermissions = userService.getUserPermissions(user.getId());
return userPermissions.contains(requiredPermission);
}
}
4. 数据持久层优化
MyBatis的XML映射文件配置体现了SQL优化思想，通过动态SQL减少数据库访问次数。
<!-- 订单复杂查询映射 -->
<mapper namespace="com.spring.mapper.OrderMapper">
<resultMap id="OrderDetailMap" type="com.spring.entity.OrderInfo">
<id column="id" property="id"/>
<result column="dingdanbianhao" property="orderNumber"/>
<result column="zongjijine" property="totalAmount"/>
<result column="zhuangtai" property="status"/>
<!-- 关联车辆信息 -->
<association property="carInfo" javaType="com.spring.entity.CarInfo">
<id column="car_id" property="id"/>
<result column="car_name" property="carName"/>
<result column="brand" property="brand"/>
</association>
</resultMap>
<select id="selectOrderWithDetails" parameterType="map" resultMap="OrderDetailMap">
SELECT
o.*,
c.id as car_id,
c.carmingcheng as car_name,
c.pinpai as brand
FROM dingdanxinxi o
LEFT JOIN carxinxi c ON o.car_id = c.id
<where>
<if test="userId != null">
AND o.xiadanren = #{userId}
</if>
<if test="status != null and status != ''">
AND o.zhuangtai = #{status}
</if>
<if test="startDate != null">
AND o.addtime >= #{startDate}
</if>
<if test="endDate != null">
AND o.addtime <= #{endDate}
</if>
</where>
ORDER BY o.addtime DESC
<if test="limit != null">
LIMIT #{limit}
</if>
</select>
<!-- 批量更新订单状态 -->
<update id="batchUpdateStatus">
UPDATE dingdanxinxi
SET zhuangtai = #{status}
WHERE id IN
<foreach collection="orderIds" item="id" open="(" separator="," close=")">
#{id}
</foreach>
</update>
</mapper>
实体模型设计规范
实体类采用JPA注解进行ORM映射，确保对象关系与数据库表结构的一致性。
@Table(name = "carxinxi")
public class CarInfo implements Serializable {
private static final long serialVersionUID = 1L;
@Id
@GeneratedValue(strategy = GenerationType.IDENTITY)
private Integer id;
@Column(name = "carbianhao")
private String carNumber;
@Column(name = "carmingcheng")
private String carName;
@Column(name = "pinpai")
private String brand;
@Column(name = "rixin")
private BigDecimal dailyPrice;
@Column(name = "zhuangtai")
private String status;
@Column(name = "tupian")
private String imageUrl;
@Column(name = "addtime")
private Date createTime;
// 关联订单信息（一对多）
@Transient
private List<OrderInfo> orderList;
// Getter和Setter方法
public Integer getId() { return id; }
public void setId(Integer id) { this.id = id; }
public String getCarNumber() { return carNumber; }
public void setCarNumber(String carNumber) {
this.carNumber = carNumber == null ? "" : carNumber.trim();
}
// 其他getter/setter方法...
}
功能展望与优化方向
1. 缓存层引入与性能优化
当前系统直接访问数据库查询频繁数据，未来可引入Redis缓存层提升性能。
// Redis缓存实现示例
@Service
public class CarInfoCacheService {
@Autowired
private RedisTemplate<String, Object> redisTemplate;
private static final String CAR_INFO_KEY = "car:info:";
private static final long EXPIRATION = 3600; // 1小时
public CarInfo getCarInfoWithCache(Integer carId) {
String key = CAR_INFO_KEY + carId;
CarInfo car = (CarInfo) redisTemplate.opsForValue().get(key);
if (car == null) {
car = carInfoMapper.selectByPrimaryKey(carId);
if (car != null) {
redisTemplate.opsForValue().set(key, car, EXPIRATION, TimeUnit.SECONDS);
}
}
return car;
}
public void evictCarCache(Integer carId) {
redisTemplate.delete(CAR_INFO_KEY + carId);
}
}
2. 微服务架构改造
将单体应用拆分为车辆服务、订单服务、用户服务等微服务，提高系统可扩展性。
# Spring Cloud微服务配置示例
spring:
application:
name: car-service
cloud:
nacos:
discovery:
server-addr: localhost:8848
loadbalancer:
configurations: default
feign:
client:
config:
default:
connectTimeout: 5000
readTimeout: 5000
loggerLevel: basic
3. 移动端适配与API重构
开发RESTful API支持移动端应用，采用JWT令牌进行身份认证。
@RestController
@RequestMapping("/api/v1")
public class MobileCarController {
@PostMapping("/cars/search")
public ApiResponse<List<CarInfo>> searchCars(@RequestBody CarSearchRequest request) {
try {
List<CarInfo> cars = carService.searchAvailableCars(request);
return ApiResponse.success(cars);
} catch (Exception e) {
return ApiResponse.error(500, "查询失败");
}
}
@PostMapping("/orders")
public ApiResponse<OrderResult> createOrder(@RequestHeader("Authorization") String token,
@RequestBody OrderRequest request) {
// JWT令牌验证
Integer userId = jwtUtil.validateToken(token);
request.setUserId(userId);
OrderResult result = orderService.createRentalOrder(request);
return ApiResponse.success(result);
}
}
4. 大数据分析与智能推荐
集成Elasticsearch实现车辆智能搜索，基于用户行为数据构建推荐引擎。
@Service
public class CarRecommendationService {
@Autowired
private ElasticsearchRestTemplate elasticTemplate;
public List<CarInfo> recommendCars(Integer userId, SearchCriteria criteria) {
// 基于用户历史订单和浏览记录生成推荐
NativeSearchQueryBuilder queryBuilder = new NativeSearchQueryBuilder();
// 构建复杂的多条件查询
BoolQueryBuilder boolQuery = QueryBuilders.boolQuery();
boolQuery.must(QueryBuilders.termQuery("status", "可用"));
if (criteria.getPriceRange() != null) {
boolQuery.filter(QueryBuilders.rangeQuery("dailyPrice")
.from(criteria.getPriceRange().getMin())
.to(criteria.getPriceRange().getMax()));
}
queryBuilder.withQuery(boolQuery);
queryBuilder.withSort(SortBuilders.scoreSort());
SearchHits<CarInfo> searchHits = elasticTemplate.search(
queryBuilder.build(), CarInfo.class);
return searchHits.getSearchHits().stream()
.map(SearchHit::getContent)
.collect(Collectors.toList());
}
}
5. 消息队列异步处理
使用RabbitMQ处理高并发订单创建和
