文章摘要

本系统是一款基于SSM（Spring + Spring MVC + MyBatis）框架整合开发的汽车租赁业务管理平台，旨在解决传统汽车租赁行业中业务流程繁琐、信息记录混乱、人工管理效率低下等核心痛点。系统通过标准化的业务流程和集中化的数据管理，为租赁企业提供从车辆入库、客户预约、合同签订到费用结算...

在传统汽车租赁行业向数字化转型的关键时期，企业面临着业务流程标准化、运营效率提升和客户服务优化的多重挑战。针对这些需求，我们设计并实现了一套高效的企业级汽车租赁管理平台，该平台采用成熟的SSM（Spring + Spring MVC + MyBatis）技术架构，为租赁企业提供全流程的数字化解决方案。

技术架构设计

系统采用经典的三层架构模式，各层职责分明，耦合度低。表现层基于Spring MVC框架构建，通过@Controller注解定义请求处理器，结合JSP视图技术实现前后端数据交互。以下是一个典型的控制器实现：

@Controller
@RequestMapping("/rental")
public class RentalOrderController {

    @Autowired
    private RentalOrderService rentalOrderService;

    @PostMapping("/create")
    @ResponseBody
    public ApiResponse createOrder(@Valid @RequestBody RentalOrderDTO orderDTO) {
        try {
            RentalOrder order = rentalOrderService.createOrder(orderDTO);
            return ApiResponse.success("订单创建成功", order);
        } catch (BusinessException e) {
            return ApiResponse.error(e.getMessage());
        }
    }

    @GetMapping("/list")
    public String listOrders(@RequestParam Map<String, Object> params,
                           Model model) {
        PageInfo<RentalOrderVO> pageInfo = rentalOrderService.getOrderList(params);
        model.addAttribute("pageInfo", pageInfo);
        return "rental/order-list";
    }
}

业务逻辑层由Spring框架的IoC容器统一管理，通过@Service注解标识业务组件，利用声明式事务管理确保数据一致性：

@Service
@Transactional
public class RentalOrderServiceImpl implements RentalOrderService {

    @Autowired
    private RentalOrderMapper rentalOrderMapper;

    @Autowired
    private VehicleMapper vehicleMapper;

    @Override
    public RentalOrder createOrder(RentalOrderDTO orderDTO) {
        // 检查车辆可用性
        Vehicle vehicle = vehicleMapper.selectById(orderDTO.getVehicleId());
        if (vehicle.getStatus() != VehicleStatus.AVAILABLE) {
            throw new BusinessException("车辆当前不可用");
        }

        // 创建订单
        RentalOrder order = convertToEntity(orderDTO);
        rentalOrderMapper.insert(order);

        // 更新车辆状态
        vehicle.setStatus(VehicleStatus.RENTED);
        vehicleMapper.updateById(vehicle);

        return order;
    }
}

数据持久层采用MyBatis框架，通过XML映射文件实现灵活的SQL管理：

<!-- RentalOrderMapper.xml -->
<mapper namespace="com.carental.mapper.RentalOrderMapper">

    <resultMap id="BaseResultMap" type="com.carental.entity.RentalOrder">
        <id column="id" property="id" />
        <result column="order_number" property="orderNumber" />
        <result column="customer_id" property="customerId" />
        <result column="vehicle_id" property="vehicleId" />
        <result column="start_date" property="startDate" />
        <result column="end_date" property="endDate" />
        <result column="total_amount" property="totalAmount" />
        <result column="status" property="status" />
        <result column="create_time" property="createTime" />
    </resultMap>

    <select id="selectOrdersWithDetails" resultMap="OrderDetailResultMap">
        SELECT o.*, v.license_plate, v.brand, v.model, c.name as customer_name
        FROM rental_order o
        LEFT JOIN vehicle v ON o.vehicle_id = v.id
        LEFT JOIN customer c ON o.customer_id = c.id
        WHERE o.status = #{status}
        ORDER BY o.create_time DESC
    </select>
</mapper>

数据库设计精要

系统共设计10张核心数据表，以下是几个关键表的结构设计：

**车辆信息表（vehicle）**采用状态机模式管理车辆生命周期：

CREATE TABLE vehicle (
    id BIGINT PRIMARY KEY AUTO_INCREMENT,
    license_plate VARCHAR(20) UNIQUE NOT NULL COMMENT '车牌号',
    brand VARCHAR(50) NOT NULL COMMENT '品牌',
    model VARCHAR(50) NOT NULL COMMENT '型号',
    vehicle_type VARCHAR(20) COMMENT '车辆类型',
    year INT COMMENT '年份',
    color VARCHAR(20) COMMENT '颜色',
    daily_rate DECIMAL(10,2) NOT NULL COMMENT '日租金',
    status ENUM('AVAILABLE', 'RENTED', 'MAINTENANCE', 'UNAVAILABLE') DEFAULT 'AVAILABLE',
    mileage INT DEFAULT 0 COMMENT '里程数',
    last_maintenance_date DATE COMMENT '最后保养日期',
    create_time DATETIME DEFAULT CURRENT_TIMESTAMP,
    update_time DATETIME DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
    INDEX idx_status (status),
    INDEX idx_plate (license_plate)
) COMMENT='车辆基本信息表';

**租赁订单表（rental_order）**实现复杂的业务逻辑约束：

CREATE TABLE rental_order (
    id BIGINT PRIMARY KEY AUTO_INCREMENT,
    order_number VARCHAR(32) UNIQUE NOT NULL COMMENT '订单编号',
    customer_id BIGINT NOT NULL COMMENT '客户ID',
    vehicle_id BIGINT NOT NULL COMMENT '车辆ID',
    start_date DATE NOT NULL COMMENT '租赁开始日期',
    end_date DATE NOT NULL COMMENT '租赁结束日期',
    actual_return_date DATE COMMENT '实际归还日期',
    total_amount DECIMAL(12,2) COMMENT '总金额',
    paid_amount DECIMAL(12,2) DEFAULT 0 COMMENT '已付金额',
    deposit_amount DECIMAL(10,2) COMMENT '押金金额',
    status ENUM('PENDING', 'CONFIRMED', 'ACTIVE', 'COMPLETED', 'CANCELLED') DEFAULT 'PENDING',
    payment_status ENUM('UNPAID', 'PARTIAL', 'PAID', 'REFUNDED') DEFAULT 'UNPAID',
    create_time DATETIME DEFAULT CURRENT_TIMESTAMP,
    update_time DATETIME DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
    FOREIGN KEY (customer_id) REFERENCES customer(id),
    FOREIGN KEY (vehicle_id) REFERENCES vehicle(id),
    INDEX idx_customer_date (customer_id, start_date),
    INDEX idx_status (status),
    CHECK (end_date > start_date)
) COMMENT='租赁订单表';

**客户信息表（customer）**的设计注重数据完整性和查询效率：

CREATE TABLE customer (
    id BIGINT PRIMARY KEY AUTO_INCREMENT,
    id_number VARCHAR(18) UNIQUE NOT NULL COMMENT '身份证号',
    name VARCHAR(50) NOT NULL COMMENT '姓名',
    phone VARCHAR(20) NOT NULL COMMENT '手机号',
    email VARCHAR(100) COMMENT '邮箱',
    driver_license VARCHAR(20) COMMENT '驾驶证号',
    address TEXT COMMENT '地址',
    customer_level ENUM('REGULAR', 'SILVER', 'GOLD', 'PLATINUM') DEFAULT 'REGULAR',
    total_rental_count INT DEFAULT 0 COMMENT '累计租赁次数',
    create_time DATETIME DEFAULT CURRENT_TIMESTAMP,
    update_time DATETIME DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
    INDEX idx_phone (phone),
    INDEX idx_level (customer_level)
) COMMENT='客户信息表';

核心功能实现

1. 智能车辆调度管理

车辆调度模块采用状态模式实现车辆生命周期的精细化管理。通过实时状态监控和预约冲突检测，确保资源的高效利用：

@Service
public class VehicleDispatchService {

    public boolean checkVehicleAvailability(Long vehicleId, LocalDate startDate, LocalDate endDate) {
        // 检查车辆基础状态
        Vehicle vehicle = vehicleMapper.selectById(vehicleId);
        if (vehicle.getStatus() != VehicleStatus.AVAILABLE) {
            return false;
        }

        // 检查时间冲突
        List<RentalOrder> conflictingOrders = rentalOrderMapper
            .selectConflictingOrders(vehicleId, startDate, endDate);

        return conflictingOrders.isEmpty();
    }

    public void updateVehicleStatus(Long vehicleId, VehicleStatus newStatus) {
        Vehicle vehicle = new Vehicle();
        vehicle.setId(vehicleId);
        vehicle.setStatus(newStatus);
        vehicle.setUpdateTime(LocalDateTime.now());
        vehicleMapper.updateById(vehicle);

        // 记录状态变更日志
        VehicleStatusLog statusLog = new VehicleStatusLog();
        statusLog.setVehicleId(vehicleId);
        statusLog.setFromStatus(vehicle.getStatus());
        statusLog.setToStatus(newStatus);
        statusLog.setChangeTime(LocalDateTime.now());
        vehicleStatusLogMapper.insert(statusLog);
    }
}

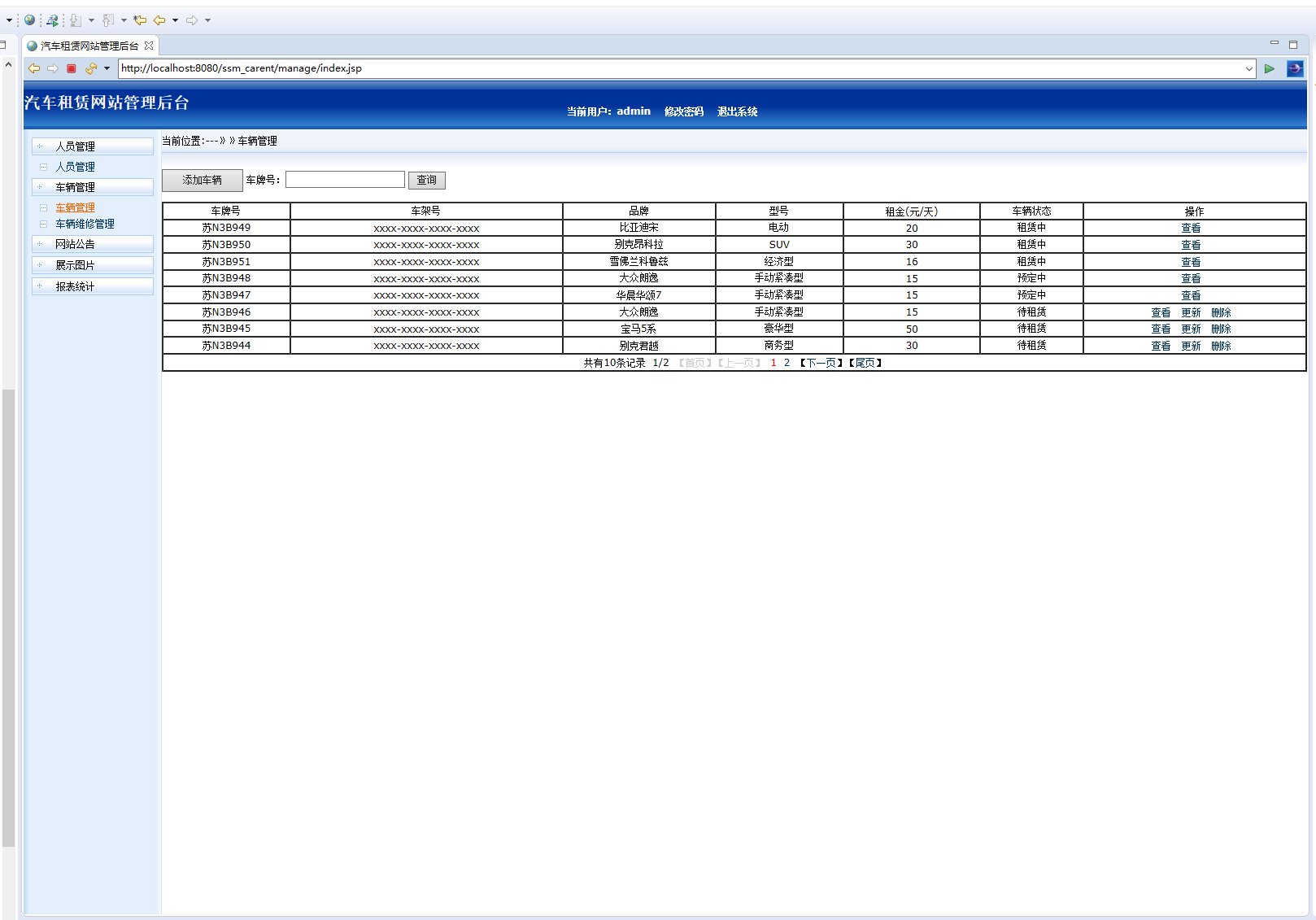

车辆管理界面

2. 动态定价与费用计算

系统支持基于多种因素的智能定价策略，包括车型、租期、季节系数和客户等级：

@Service
public class PricingService {

    public RentalQuote calculateRentalQuote(RentalRequest request) {
        Vehicle vehicle = vehicleMapper.selectById(request.getVehicleId());
        Customer customer = customerMapper.selectById(request.getCustomerId());

        // 基础租金计算
        BigDecimal baseAmount = calculateBaseAmount(vehicle, request.getRentalDays());

        // 应用折扣策略
        BigDecimal discount = applyDiscountPolicies(baseAmount, customer, request);

        // 计算附加费用
        BigDecimal additionalFees = calculateAdditionalFees(request);

        BigDecimal totalAmount = baseAmount.subtract(discount).add(additionalFees);

        return RentalQuote.builder()
            .baseAmount(baseAmount)
            .discountAmount(discount)
            .additionalFees(additionalFees)
            .totalAmount(totalAmount)
            .depositAmount(calculateDeposit(vehicle))
            .build();
    }

    private BigDecimal applyDiscountPolicies(BigDecimal baseAmount, Customer customer, RentalRequest request) {
        BigDecimal discount = BigDecimal.ZERO;

        // 长期租赁折扣
        if (request.getRentalDays() > 7) {
            discount = discount.add(baseAmount.multiply(BigDecimal.valueOf(0.1)));
        }

        // 会员等级折扣
        discount = discount.add(calculateMemberDiscount(baseAmount, customer.getCustomerLevel()));

        // 季节性折扣
        discount = discount.add(calculateSeasonalDiscount(baseAmount, request.getStartDate()));

        return discount;
    }
}

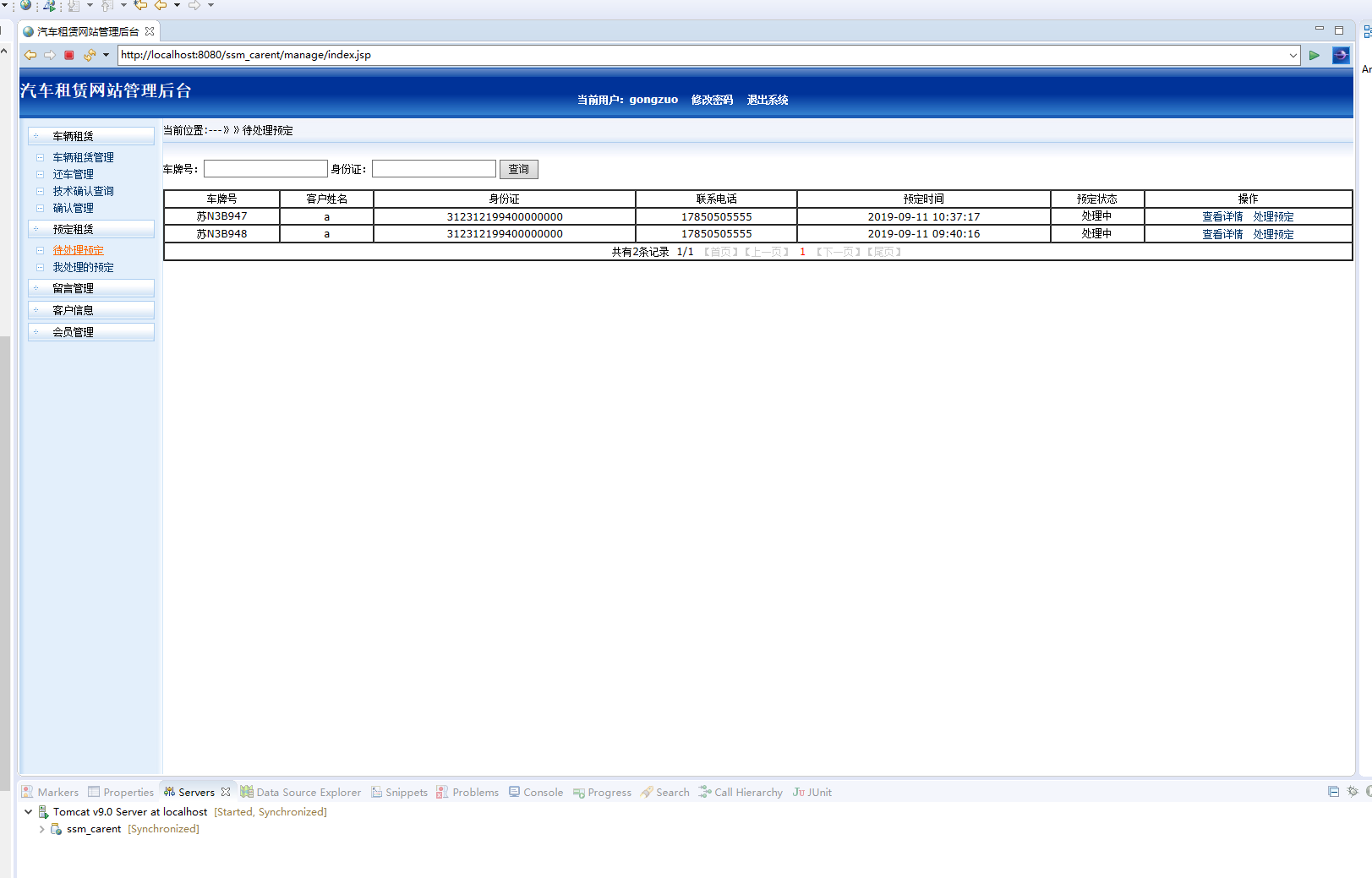

预订管理界面

3. 多维度统计分析

系统提供丰富的统计分析功能，帮助管理者做出数据驱动的决策：

@Service
public class StatisticsService {

    public RentalStatistics getRentalStatistics(DateRange dateRange) {
        RentalStatistics statistics = new RentalStatistics();

        // 租赁收入统计
        statistics.setRevenueStats(rentalOrderMapper
            .selectRevenueStatistics(dateRange));

        // 车辆利用率分析
        statistics.setUtilizationStats(vehicleMapper
            .selectUtilizationStatistics(dateRange));

        // 客户行为分析
        statistics.setCustomerStats(customerMapper
            .selectCustomerBehaviorStats(dateRange));

        // 热门车型排名
        statistics.setPopularModels(rentalOrderMapper
            .selectPopularModels(dateRange, 10));

        return statistics;
    }

    public List<RevenueTrend> getRevenueTrend(TimeUnit timeUnit, int periods) {
        return rentalOrderMapper.selectRevenueTrend(timeUnit, periods);
    }
}

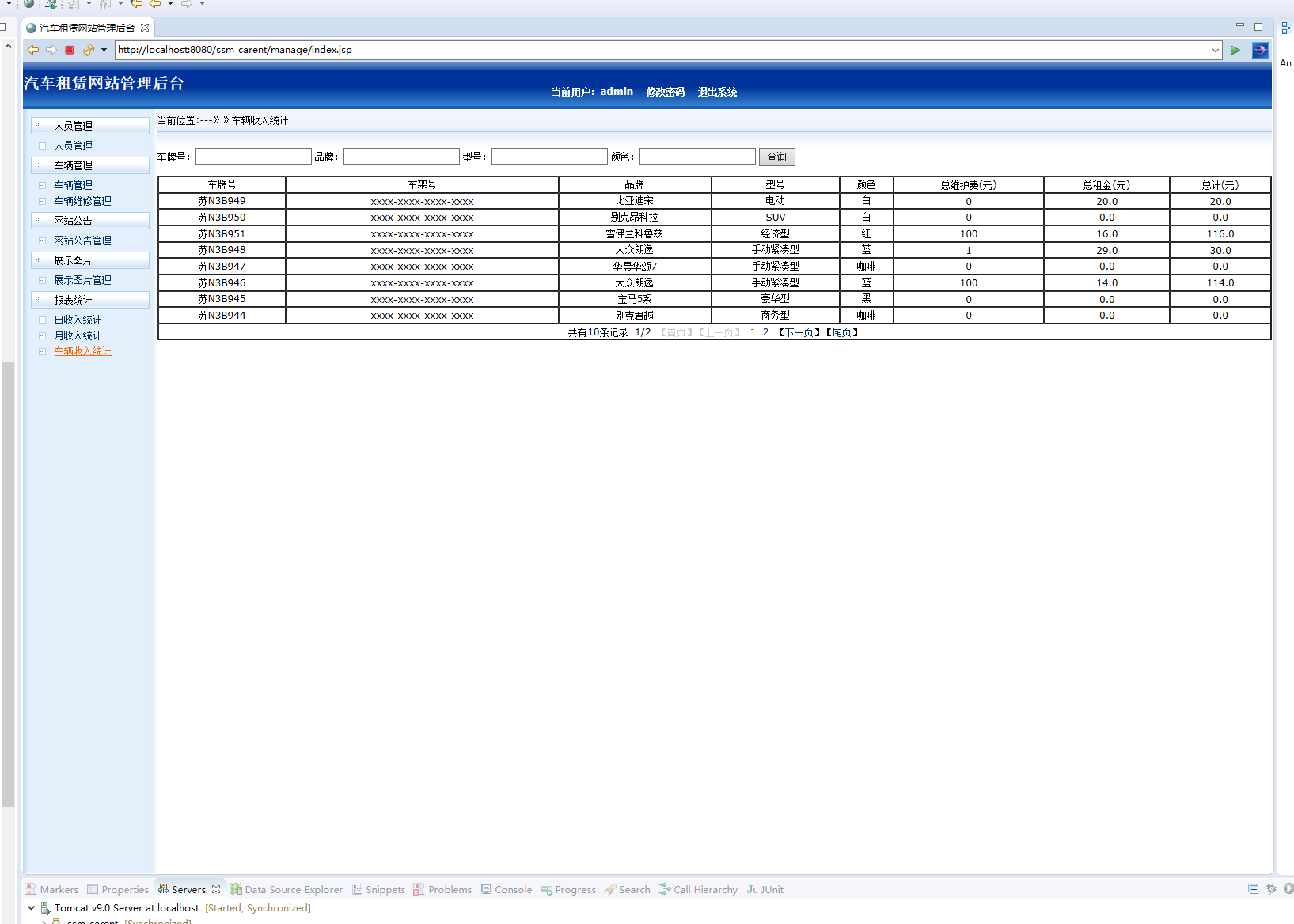

统计分析界面

4. 权限管理与安全控制

基于RBAC模型的权限管理系统确保数据安全和操作合规：

@Component
public class PermissionInterceptor implements HandlerInterceptor {

    @Override
    public boolean preHandle(HttpServletRequest request,
                           HttpServletResponse response, Object handler) throws Exception {

        String requestURI = request.getRequestURI();
        User user = (User) request.getSession().getAttribute("currentUser");

        if (user == null) {
            response.sendRedirect("/login");
            return false;
        }

        if (!hasPermission(user, requestURI, request.getMethod())) {
            response.sendError(HttpStatus.FORBIDDEN.value(), "权限不足");
            return false;
        }

        return true;
    }

    private boolean hasPermission(User user, String uri, String method) {
        Set<String> permissions = user.getRole().getPermissions();
        String requiredPermission = buildPermissionKey(uri, method);

        return permissions.contains(requiredPermission);
    }
}

实体模型设计

系统采用领域驱动设计（DDD）思想，构建了丰富的实体模型：

@Entity
@Table(name = "rental_order")
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class RentalOrder {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    private String orderNumber;

    @ManyToOne
    @JoinColumn(name = "customer_id")
    private Customer customer;

    @ManyToOne
    @JoinColumn(name = "vehicle_id")
    private Vehicle vehicle;

    private LocalDate startDate;
    private LocalDate endDate;
    private LocalDate actualReturnDate;

    private BigDecimal totalAmount;
    private BigDecimal paidAmount;
    private BigDecimal depositAmount;

    @Enumerated(EnumType.STRING)
    private OrderStatus status;

    @Enumerated(EnumType.STRING)
    private PaymentStatus paymentStatus;

    @OneToMany(mappedBy = "order", cascade = CascadeType.ALL)
    private List<PaymentRecord> paymentRecords;

    @OneToMany(mappedBy = "order")
    private List<OrderOperationLog> operationLogs;

    public boolean canBeCancelled() {
        return status == OrderStatus.PENDING || status == OrderStatus.CONFIRMED;
    }

    public BigDecimal calculateOverdueFee() {
        if (actualReturnDate == null || actualReturnDate.isBefore(endDate)) {
            return BigDecimal.ZERO;
        }

        long overdueDays = ChronoUnit.DAYS.between(endDate, actualReturnDate);
        return vehicle.getDailyRate().multiply(BigDecimal.valueOf(overdueDays * 1.5));
    }
}

性能优化策略

系统在多个层面实施了性能优化措施：

数据库查询优化：

@Repository
public class VehicleRepository {

    @Select("SELECT v.*, COUNT(r.id) as rental_count " +
            "FROM vehicle v LEFT JOIN rental_order r ON v.id = r.vehicle_id " +
            "WHERE v.status = 'AVAILABLE' AND v.vehicle_type = #{type} " +
            "GROUP BY v.id " +
            "ORDER BY rental_count DESC " +
            "LIMIT #{limit}")
    List<VehicleRentalStats> findPopularAvailableVehicles(@Param("type") String type,
                                                         @Param("limit") int limit);

    @Update("UPDATE vehicle SET status = #{status}, update_time = NOW() " +
            "WHERE id IN (#{ids}) AND status != #{status}")
    int batchUpdateStatus(@Param("ids") List<Long> ids,
                         @Param("status") VehicleStatus status);
}

缓存策略实现：

@Service
@CacheConfig(cacheNames = "vehicleCache")
public class VehicleService {

    @Cacheable(key = "'vehicle:' + #id")
    public Vehicle getVehicleById(Long id) {
        return vehicleMapper.selectById(id);
    }

    @CacheEvict(key = "'vehicle:' + #vehicle.id")
    public void updateVehicle(Vehicle vehicle) {
        vehicleMapper.updateById(vehicle);
    }

    @Cacheable(key = "'available_vehicles:' + #type + ':' + #location")
    public List<Vehicle> getAvailableVehicles(String type, String location) {
        return vehicleMapper.selectAvailableByTypeAndLocation(type, location);
    }
}

系统扩展性与未来优化方向

  1. 微服务架构迁移：将单体应用拆分为车辆管理、订单处理、用户服务等独立微服务，提升系统弹性和可维护性。采用Spring Cloud框架实现服务发现、配置管理和链路追踪。

  2. 智能推荐引擎：集成机器学习算法，基于用户历史租赁记录和行为数据，实现个性化车辆推荐和动态定价优化。

  3. 物联网集成：通过车载设备实时采集车辆位置、油耗、里程等数据，实现预防性维护和驾驶行为分析。

  4. 区块链存证：利用区块链技术对重要合同和交易记录进行存证，增强数据的不可篡改性和审计透明度。

  5. 移动端体验优化：开发原生移动应用，支持扫码租车、电子钥匙、远程控制等现代化功能，提升用户体验。

该系统通过严谨的架构设计和深入的业务逻辑实现，为汽车租赁行业提供了完整的数字化解决方案。其模块化设计和可扩展架构为后续的功能演进和技术升级奠定了坚实基础，具备良好的长期发展潜力。

本文关键词
SSM框架汽车租赁管理系统源码解析Spring MVCMyBatis

上下篇

上一篇
没有更多文章
下一篇
没有更多文章
