基于SSM框架的农业信息管理平台 - 源码深度解析

农业信息化建设作为现代农业发展的重要支撑，正逐步改变传统农业依赖人工记录和经验决策的生产模式。传统农业管理中存在信息记录分散、数据统计效率低、决策缺乏科学依据等痛点，亟需通过信息化手段实现农业生产全流程的精细化管控。基于SSM框架的智慧农业信息管理平台应运而生，通过将地块管理、作物种植、农事记录、农资使用等环节数字化，为农业企业、合作社和政府农业部门提供全面的信息化解决方案。

该平台采用分层架构设计，前端使用JSP结合jQuery实现动态页面交互，后端基于Spring+Spring MVC+MyBatis技术栈构建，MySQL数据库负责数据持久化存储。这种架构确保了系统的高内聚低耦合特性，各层之间通过明确定义的接口进行通信，提高了系统的可维护性和扩展性。

技术架构深度解析

Spring框架作为系统的核心容器，通过控制反转（IoC）机制管理各类业务对象，实现了依赖注入和面向切面编程。事务管理采用声明式事务控制，确保数据操作的原子性和一致性。以下代码展示了Spring配置的核心部分：

<!-- 数据源配置 -->
<bean id="dataSource" class="com.alibaba.druid.pool.DruidDataSource">
    <property name="url" value="${jdbc.url}"/>
    <property name="username" value="${jdbc.username}"/>
    <property name="password" value="${jdbc.password}"/>
</bean>

<!-- 事务管理器 -->
<bean id="transactionManager"
      class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
    <property name="dataSource" ref="dataSource"/>
</bean>

<!-- 注解驱动 -->
<tx:annotation-driven transaction-manager="transactionManager"/>

Spring MVC负责Web请求的处理和响应，通过DispatcherServlet统一接收请求，由HandlerMapping进行请求路由，Controller处理具体业务逻辑。拦截器链实现了权限验证、日志记录等横切关注点：

@Controller
@RequestMapping("/farm")
public class FarmlandController {

    @Autowired
    private FarmlandService farmlandService;

    @RequestMapping(value = "/list", method = RequestMethod.GET)
    public String listFarmlands(Model model) {
        List<Farmland> farmlands = farmlandService.getAllFarmlands();
        model.addAttribute("farmlandList", farmlands);
        return "farmland/list";
    }

    @RequestMapping(value = "/add", method = RequestMethod.POST)
    @ResponseBody
    public ResponseEntity<?> addFarmland(@RequestBody Farmland farmland) {
        try {
            farmlandService.addFarmland(farmland);
            return ResponseEntity.ok("新增成功");
        } catch (Exception e) {
            return ResponseEntity.badRequest().body("操作失败");
        }
    }
}

MyBatis作为持久层框架，通过XML映射文件将Java对象与数据库表进行映射，支持动态SQL和复杂查询。以下示例展示了农事记录管理的Mapper配置：

<mapper namespace="com.agriculture.mapper.FarmingActivityMapper">

    <resultMap id="FarmingActivityResult" type="FarmingActivity">
        <id property="id" column="id"/>
        <result property="farmlandId" column="farmland_id"/>
        <result property="activityType" column="activity_type"/>
        <result property="activityDate" column="activity_date"/>
        <result property="description" column="description"/>
        <result property="operator" column="operator"/>
        <result property="createTime" column="create_time"/>
    </resultMap>

    <select id="selectActivitiesByCondition" parameterType="map" resultMap="FarmingActivityResult">
        SELECT * FROM farming_activity
        WHERE 1=1
        <if test="farmlandId != null">
            AND farmland_id = #{farmlandId}
        </if>
        <if test="startDate != null">
            AND activity_date >= #{startDate}
        </if>
        <if test="endDate != null">
            AND activity_date <= #{endDate}
        </if>
        ORDER BY activity_date DESC
    </select>
</mapper>

数据库设计精要

系统数据库设计遵循第三范式，确保数据的一致性和完整性。核心表包括用户表、农田信息表、农事记录表、农资库存表等。以下重点分析两个核心表的设计：

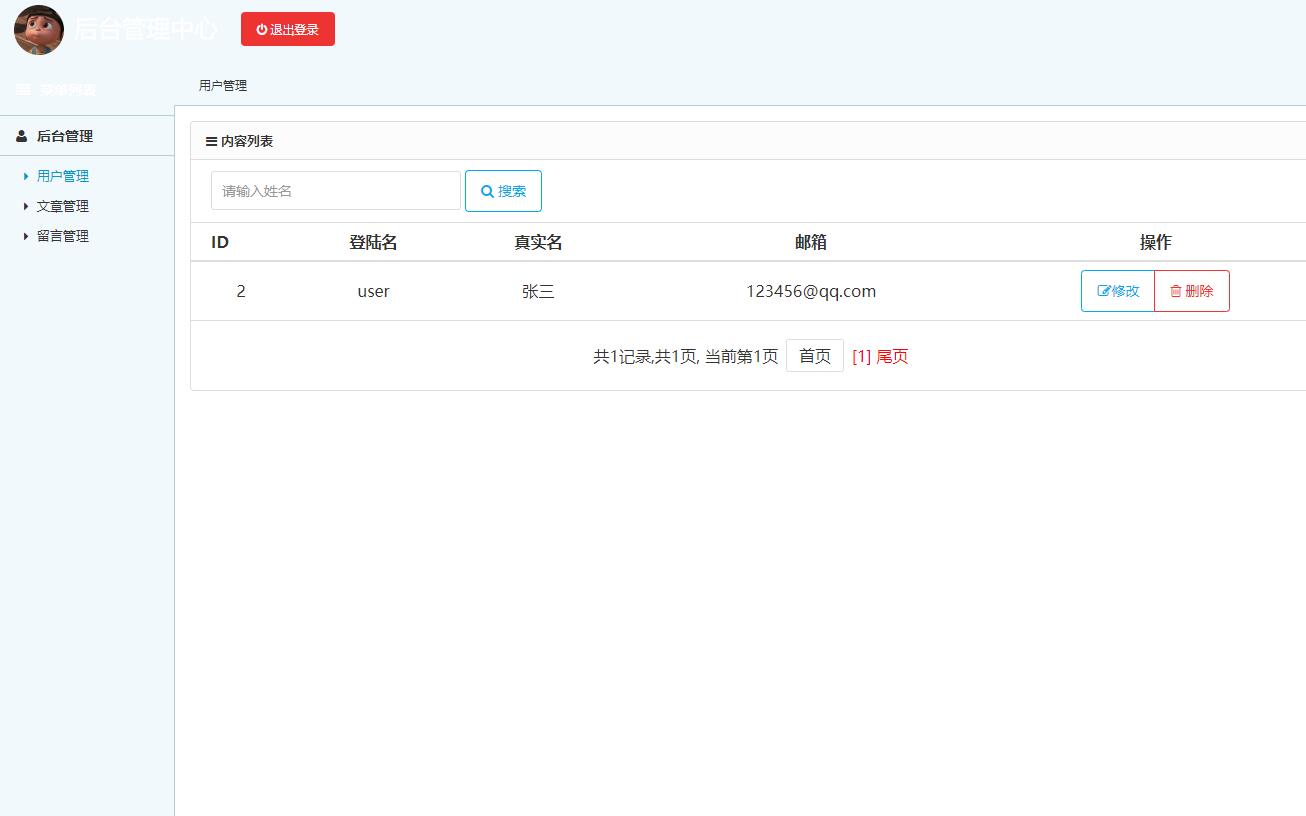

用户表（user）采用角色分离设计，支持管理员和普通用户两种身份，通过user_type字段进行区分。密码存储使用MD5加密，确保安全性：

CREATE TABLE user (
    id INT PRIMARY KEY AUTO_INCREMENT,
    username VARCHAR(50) NOT NULL UNIQUE,
    password VARCHAR(32) NOT NULL,
    real_name VARCHAR(50),
    user_type ENUM('admin','user') NOT NULL DEFAULT 'user',
    phone VARCHAR(20),
    email VARCHAR(100),
    create_time DATETIME DEFAULT CURRENT_TIMESTAMP,
    last_login_time DATETIME,
    status ENUM('active','inactive') DEFAULT 'active'
);

农事记录表（farming_activity）设计考虑了农业生产的实际情况，记录了包括播种、施肥、灌溉、病虫害防治等各类农事操作。通过farmland_id与农田信息表关联，支持按地块追溯农事历史：

CREATE TABLE farming_activity (
    id INT PRIMARY KEY AUTO_INCREMENT,
    farmland_id INT NOT NULL,
    activity_type ENUM('sowing','fertilization','irrigation','pest_control','harvest') NOT NULL,
    activity_date DATE NOT NULL,
    description TEXT,
    operator VARCHAR(50),
    material_used VARCHAR(200),
    quantity DECIMAL(10,2),
    unit VARCHAR(20),
    cost DECIMAL(10,2),
    create_time DATETIME DEFAULT CURRENT_TIMESTAMP,
    FOREIGN KEY (farmland_id) REFERENCES farmland(id) ON DELETE CASCADE
);

核心功能模块实现

农田信息管理模块采用树形结构展示农田层级关系，支持地块的新增、编辑、删除和查询操作。前端使用jQuery实现异步数据加载和表单验证：

// 农田列表加载
function loadFarmlandList() {
    $.ajax({
        url: '/farmland/list',
        type: 'GET',
        dataType: 'json',
        success: function(data) {
            var tbody = $('#farmlandTable tbody');
            tbody.empty();
            $.each(data, function(index, item) {
                var row = '<tr>' +
                    '<td>' + item.name + '</td>' +
                    '<td>' + item.area + '亩</td>' +
                    '<td>' + item.soilType + '</td>' +
                    '<td>' + item.cropType + '</td>' +
                    '<td>' +
                    '<button class="btn btn-info btn-sm" onclick="viewDetail(' + item.id + ')">详情</button>' +
                    '<button class="btn btn-warning btn-sm" onclick="editFarmland(' + item.id + ')">编辑</button>' +
                    '</td></tr>';
                tbody.append(row);
            });
        }
    });
}

农事记录管理模块提供完整的CRUD操作，支持按时间范围、农事类型等多条件组合查询。后端服务层实现业务逻辑处理和数据验证：

@Service
@Transactional
public class FarmingActivityServiceImpl implements FarmingActivityService {

    @Autowired
    private FarmingActivityMapper activityMapper;

    @Override
    public List<FarmingActivity> getActivitiesByFarmland(Integer farmlandId, Date startDate, Date endDate) {
        Map<String, Object> params = new HashMap<>();
        params.put("farmlandId", farmlandId);
        params.put("startDate", startDate);
        params.put("endDate", endDate);

        return activityMapper.selectActivitiesByCondition(params);
    }

    @Override
    public void addActivity(FarmingActivity activity) throws BusinessException {
        // 数据验证
        if (activity.getActivityDate() == null) {
            throw new BusinessException("农事日期不能为空");
        }
        if (activity.getFarmlandId() == null) {
            throw new BusinessException("必须指定农田");
        }

        activityMapper.insert(activity);

        // 更新农田最后操作时间
        updateFarmlandLastActivityTime(activity.getFarmlandId());
    }
}

产量预测分析模块基于历史种植数据和当前生长情况，运用回归分析算法进行产量预测。数学模型考虑了作物品种、生长周期、气候条件等多重因素：

@Component
public class YieldPredictor {

    private static final double[] WEIGHTS = {0.3, 0.25, 0.2, 0.15, 0.1}; // 各因素权重

    public PredictionResult predictYield(Farmland farmland, WeatherData weather) {
        double baseYield = getHistoricalAverageYield(farmland.getCropType());
        double soilFactor = calculateSoilFactor(farmland.getSoilType());
        double weatherFactor = calculateWeatherFactor(weather);
        double managementFactor = calculateManagementFactor(farmland.getId());

        double predictedYield = baseYield * soilFactor * weatherFactor * managementFactor;

        return new PredictionResult(predictedYield, calculateConfidenceInterval(predictedYield));
    }

    private double calculateManagementFactor(Integer farmlandId) {
        // 基于农事记录频率和质量计算管理因子
        List<FarmingActivity> activities = activityService.getRecentActivities(farmlandId);
        return activities.stream()
                .mapToDouble(this::scoreActivity)
                .average()
                .orElse(1.0);
    }
}

农资库存管理模块实现库存预警和采购建议功能，当库存量低于安全阈值时自动生成采购订单。库存更新采用乐观锁机制防止并发问题：

@Repository
public class MaterialInventoryDAO {

    public boolean updateInventoryWithLock(Integer materialId, Integer quantity, Integer version) {
        String sql = "UPDATE material_inventory SET stock_quantity = stock_quantity - ?, " +
                    "version = version + 1 WHERE id = ? AND version = ?";
        int rows = jdbcTemplate.update(sql, quantity, materialId, version);
        return rows > 0;
    }

    public List<MaterialInventory> getLowStockMaterials() {
        String sql = "SELECT * FROM material_inventory WHERE stock_quantity < safe_stock";
        return jdbcTemplate.query(sql, new MaterialInventoryRowMapper());
    }
}

成本统计分析模块通过聚合农资使用记录和人工成本数据，生成多维度的成本分析报表。采用MapReduce思想处理大数据量统计：

@Service
public class CostAnalysisService {

    public CostAnalysisResult analyzeCost(Integer farmlandId, DateRange range) {
        List<MaterialUsage> materials = materialUsageDAO.getUsageInPeriod(farmlandId, range);
        List<LaborCost> labors = laborCostDAO.getCostsInPeriod(farmlandId, range);

        Map<String, Double> materialCostByType = materials.stream()
                .collect(Collectors.groupingBy(MaterialUsage::getType,
                         Collectors.summingDouble(MaterialUsage::getCost)));

        double totalCost = materialCostByType.values().stream().mapToDouble(Double::doubleValue).sum() +
                          labors.stream().mapToDouble(LaborCost::getAmount).sum();

        return new CostAnalysisResult(totalCost, materialCostByType, generateTrendAnalysis(range));
    }
}

实体模型设计

系统实体模型采用面向对象设计原则，核心实体包括User、Farmland、FarmingActivity、MaterialInventory等。实体间关系通过注解方式配置，支持懒加载和级联操作：

@Entity
@Table(name = "farmland")
public class Farmland {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Integer id;

    private String name;
    private Double area;
    private String soilType;
    private String cropType;

    @OneToMany(mappedBy = "farmland", cascade = CascadeType.ALL, fetch = FetchType.LAZY)
    private List<FarmingActivity> activities = new ArrayList<>();

    @ManyToOne(fetch = FetchType.LAZY)
    @JoinColumn(name = "owner_id")
    private User owner;

    // 省略getter/setter方法
}

系统安全机制

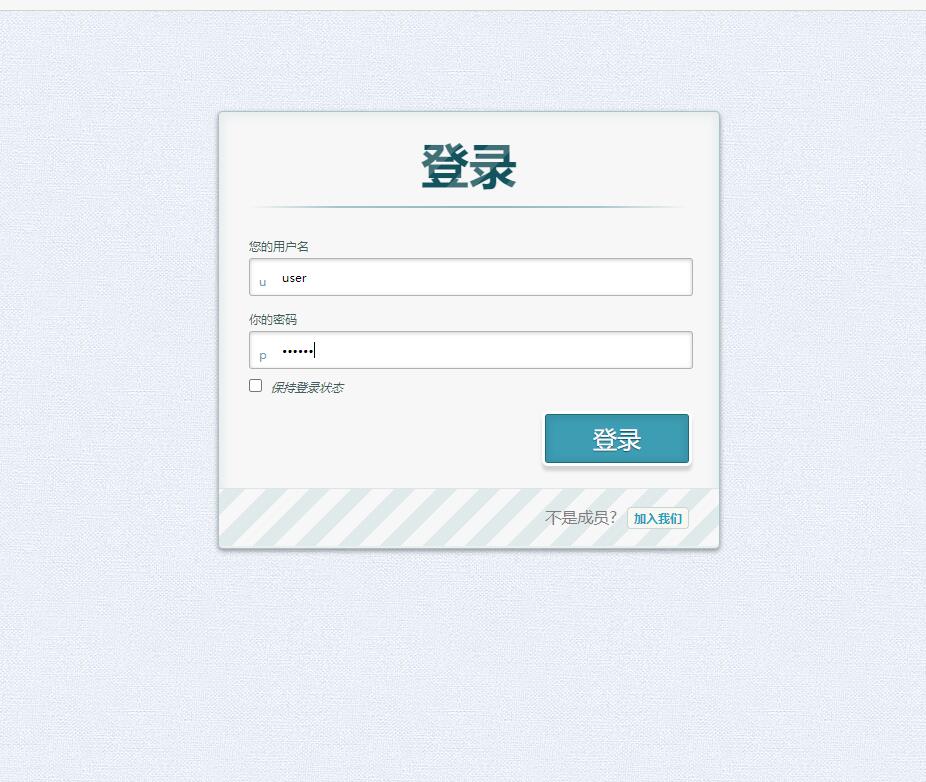

平台采用多层次安全防护策略，包括用户身份认证、权限控制、数据加密和操作日志记录。Spring Security集成实现了基于角色的访问控制：

@Configuration
@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.authorizeRequests()
            .antMatchers("/admin/**").hasRole("ADMIN")
            .antMatchers("/user/**").hasAnyRole("USER", "ADMIN")
            .antMatchers("/public/**").permitAll()
            .anyRequest().authenticated()
            .and()
            .formLogin()
            .loginPage("/login")
            .defaultSuccessUrl("/dashboard")
            .and()
            .logout()
            .logoutSuccessUrl("/login")
            .and()
            .csrf().disable();
    }
}

操作日志采用AOP实现，记录关键业务操作以供审计：

@Aspect
@Component
public class OperationLogAspect {

    @Around("@annotation(OperationLog)")
    public Object logOperation(ProceedingJoinPoint joinPoint) throws Throwable {
        String methodName = joinPoint.getSignature().getName();
        Object[] args = joinPoint.getArgs();

        long startTime = System.currentTimeMillis();
        Object result = joinPoint.proceed();
        long endTime = System.currentTimeMillis();

        // 记录操作日志
        saveOperationLog(methodName, args, result, endTime - startTime);

        return result;
    }
}

性能优化策略

数据库查询优化采用索引策略和查询缓存机制。对常用查询字段建立复合索引，提高数据检索效率：

-- 农事记录表查询索引
CREATE INDEX idx_farmland_date ON farming_activity(farmland_id, activity_date);
CREATE INDEX idx_activity_type ON farming_activity(activity_type);

-- 物料库存表索引
CREATE INDEX idx_material_safe_stock ON material_inventory(safe_stock, stock_quantity);

服务层缓存使用Redis实现热点数据缓存，减少数据库访问压力：

@Service
public class FarmlandService {

    @Autowired
    private RedisTemplate<String, Object> redisTemplate;

    private static final String FARMLAND_CACHE_KEY = "farmland:";
    private static final long CACHE_EXPIRE = 3600; // 1小时

    public Farmland getFarmlandById(Integer id) {
        String cacheKey = FARMLAND_CACHE_KEY + id;
        Farmland farmland = (Farmland) redisTemplate.opsForValue().get(cacheKey);

        if (farmland == null) {
            farmland = farmlandDAO.findById(id);
            if (farmland != null) {
                redisTemplate.opsForValue().set(cacheKey, farmland, CACHE_EXPIRE, TimeUnit.SECONDS);
            }
        }

        return farmland;
    }
}

未来优化方向

物联网设备集成是系统的重要扩展方向。通过接入土壤传感器、气象站等物联网设备，实现环境数据的自动采集和实时监控：

// 物联网数据接收接口
@RestController
@RequestMapping("/api/iot")
public class IoTDataController {

    @PostMapping("/sensor-data")
    public ResponseEntity<?> receiveSensorData(@RequestBody SensorData data) {
        // 验证数据签名
        if (!verifySignature(data)) {
            return ResponseEntity.badRequest().body("数据签名验证失败");
        }

        // 存储传感器数据
        sensorDataService.saveData(data);

        // 触发预警检查
        earlyWarningService.checkThresholds(data);

        return ResponseEntity.ok("数据接收成功");
    }
}

移动端应用开发将扩展系统的使用场景。采用React Native或Flutter框架开发跨平台移动应用，支持田间地头的数据录入和查询：

// Flutter移动端农田列表页面
class FarmlandListPage extends StatefulWidget {
  @override
  _FarmlandListPageState createState() => _FarmlandListPageState();
}

class _FarmlandListPageState extends State<FarmlandListPage> {
  List<Farmland> farmlands = [];

  @override
  void initState() {
    super.initState();
    loadFarmlands();
  }

  Future<void> loadFarmlands() async {
    var response = await http.get('/api/farmlands');
    setState(() {
      farmlands = Farmland.fromJsonList(json.decode(response.body));
    });
  }

  @override
  Widget build(BuildContext context) {
    return ListView.builder(
      itemCount: farmlands.length,
      itemBuilder: (context, index) {
        return FarmlandCard(farmland: farmlands[index]);
      },
    );
  }
}

大数据分析能力提升将加强系统的决策支持功能。集成Apache Spark进行海量农业数据的分布式处理，实现更精准的产量预测和病虫害预警：

// 产量预测Spark作业
object YieldPredictionJob {
  def main(args: Array[String]): Unit = {
    val spark = SparkSession.builder()
      .appName("YieldPrediction")
      .getOrCreate()

    val historicalData = spark.read.parquet("hdfs://agriculture/historical_yield")
    val weatherData = spark.read.parquet("hdfs://agriculture/weather")

    val features = historicalData.join(weatherData, "date")
      .select("crop_type", "soil_moisture", "temperature", "precipitation")

    val assembler = new VectorAssembler()
      .setInputCols(Array("soil_moisture", "temperature", "precipitation"))
      .setOutputCol("features")

    val lr = new LinearRegression()
      .setLabelCol("yield")
      .setFeaturesCol("features")

    val pipeline = new Pipeline()
      .setStages(Array(assembler, lr))

    val model = pipeline.fit(features)
    model.write.overwrite().save("hdfs://agriculture/models/yield_prediction")
  }
}

人工智能技术集成将实现智能决策支持。利用机器学习算法分析历史数据，为种植计划、施肥方案等提供智能建议：

# 基于scikit-learn的种植建议模型
