基于SSH框架的物流快递管理系统 - 源码深度解析

在现代物流行业高速发展的背景下，传统依赖纸质单据和人工协调的管理模式已难以应对日益复杂的供应链需求。物流企业面临着信息传递延迟、操作错误率高、运输状态不透明、成本控制困难等多重挑战。针对这些痛点，基于SSH（Struts2+Spring+Hibernate）框架的物流快递管理系统应运而生，该系统通过全流程数字化管控，实现了从订单创建到货物签收的闭环管理。

系统采用典型的三层架构设计，充分发挥各框架的技术优势。表现层使用Struts2框架处理前端请求，通过配置struts.xml文件定义Action映射关系，结合JSP和EL表达式实现动态页面渲染；业务逻辑层由Spring框架统一管理，通过IoC容器实现组件依赖注入，并利用AOP机制处理事务管理和日志记录；数据持久层采用Hibernate实现对象关系映射（ORM），通过SessionFactory管理数据库会话，使用HQL和Criteria API简化复杂查询操作。这种分层架构确保了系统的高内聚低耦合特性，为后续功能扩展和维护提供了坚实基础。

数据库架构设计与核心表分析

系统共设计10张核心数据表，涵盖用户管理、订单处理、仓储管理、运输调度等业务模块。其中订单主表（orders）、库存表（inventory）和运输记录表（transport_record）的设计尤为关键，体现了良好的范式规范和业务逻辑完整性。

订单主表设计采用星型模式，以订单编号为主键，包含客户信息、货物详情、费用明细等核心字段。表结构设计充分考虑业务扩展性，通过状态字段实现订单生命周期管理：

CREATE TABLE orders (
    order_id VARCHAR(32) PRIMARY KEY COMMENT '订单编号',
    customer_id INT NOT NULL COMMENT '客户ID',
    sender_name VARCHAR(50) NOT NULL COMMENT '寄件人姓名',
    sender_phone VARCHAR(20) NOT NULL COMMENT '寄件人电话',
    receiver_name VARCHAR(50) NOT NULL COMMENT '收件人姓名',
    receiver_phone VARCHAR(20) NOT NULL COMMENT '收件人电话',
    goods_type VARCHAR(30) COMMENT '货物类型',
    weight DECIMAL(10,2) COMMENT '重量(kg)',
    volume DECIMAL(10,2) COMMENT '体积(m³)',
    freight DECIMAL(10,2) COMMENT '运费',
    insurance_fee DECIMAL(10,2) COMMENT '保价费',
    total_amount DECIMAL(10,2) COMMENT '总金额',
    order_status INT DEFAULT 1 COMMENT '订单状态(1:待受理 2:已揽收 3:运输中 4:已签收)',
    create_time DATETIME DEFAULT CURRENT_TIMESTAMP COMMENT '创建时间',
    update_time DATETIME ON UPDATE CURRENT_TIMESTAMP COMMENT '更新时间',
    INDEX idx_customer_id (customer_id),
    INDEX idx_status (order_status),
    INDEX idx_create_time (create_time)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='订单主表';

该表通过订单状态字段实现工作流控制，结合创建时间和更新时间便于进行时效性分析。索引策略优化了客户查询、状态筛选和时间范围查询的性能。

库存表设计采用批次管理理念，支持先进先出（FIFO）的库存周转策略：

CREATE TABLE inventory (
    inventory_id INT AUTO_INCREMENT PRIMARY KEY,
    warehouse_id INT NOT NULL COMMENT '仓库ID',
    goods_name VARCHAR(100) NOT NULL COMMENT '货物名称',
    batch_no VARCHAR(50) COMMENT '批次号',
    quantity INT NOT NULL COMMENT '数量',
    unit VARCHAR(20) COMMENT '计量单位',
    storage_time DATETIME COMMENT '入库时间',
    expiry_date DATE COMMENT '有效期至',
    location_code VARCHAR(30) COMMENT '库位编码',
    status INT DEFAULT 1 COMMENT '状态(1:在库 2:预占 3:已出库)',
    FOREIGN KEY (warehouse_id) REFERENCES warehouse(warehouse_id),
    INDEX idx_warehouse_id (warehouse_id),
    INDEX idx_batch_no (batch_no),
    INDEX idx_storage_time (storage_time)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='库存表';

通过批次号和入库时间字段实现精细化的库存管理，库位编码支持快速定位货物，状态字段确保库存操作的原子性。

核心功能模块实现解析

订单全生命周期管理模块通过Struts2 Action接收前端请求，Spring Service层处理业务逻辑，Hibernate DAO层完成数据持久化。订单状态机设计确保业务流程的严谨性：

// OrderAction.java - Struts2 Action类
public class OrderAction extends ActionSupport {
    private OrderService orderService;
    private Order order;
    private List<Order> orderList;

    public String createOrder() {
        try {
            orderService.createOrder(order);
            addActionMessage("订单创建成功！");
            return SUCCESS;
        } catch (BusinessException e) {
            addActionError(e.getMessage());
            return ERROR;
        }
    }

    public String queryOrders() {
        orderList = orderService.queryOrdersByCriteria(order);
        return SUCCESS;
    }

    // Getter和Setter方法
    public Order getOrder() { return order; }
    public void setOrder(Order order) { this.order = order; }
    public List<Order> getOrderList() { return orderList; }
}

// OrderServiceImpl.java - Spring Service实现类
@Service
@Transactional
public class OrderServiceImpl implements OrderService {
    @Autowired
    private OrderDAO orderDAO;

    @Override
    public void createOrder(Order order) {
        // 生成订单编号规则：时间戳+随机数
        String orderId = "ORD" + System.currentTimeMillis() +
                        String.format("%04d", new Random().nextInt(10000));
        order.setOrderId(orderId);
        order.setOrderStatus(OrderStatus.PENDING);
        order.setCreateTime(new Date());

        // 计算费用
        calculateFreight(order);
        orderDAO.save(order);
    }

    private void calculateFreight(Order order) {
        // 基于重量、体积、距离的运费计算逻辑
        BigDecimal basePrice = new BigDecimal("10.00");
        BigDecimal weightFee = order.getWeight().multiply(new BigDecimal("2.5"));
        BigDecimal volumeFee = order.getVolume().multiply(new BigDecimal("50"));
        BigDecimal freight = basePrice.add(weightFee).add(volumeFee);
        order.setFreight(freight);
        order.setTotalAmount(freight.add(order.getInsuranceFee()));
    }
}

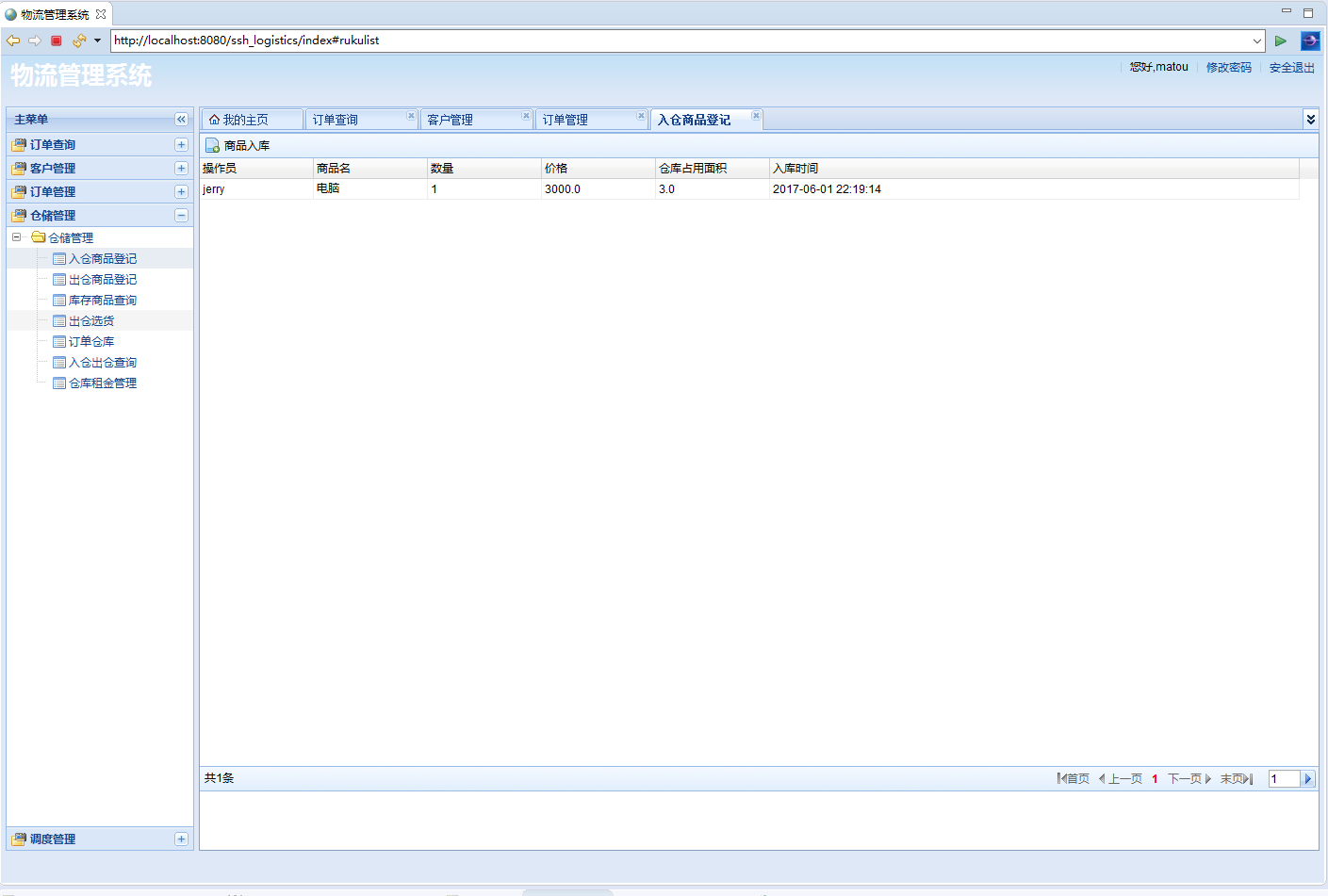

仓储管理模块实现多仓库库存联动，通过Hibernate的二级缓存优化高频查询性能：

// InventoryDAOImpl.java - 库存数据访问层
@Repository
public class InventoryDAOImpl extends HibernateDaoSupport implements InventoryDAO {

    public List<Inventory> findInventoryByWarehouse(Integer warehouseId,
                                                   String goodsName,
                                                   Date startDate,
                                                   Date endDate) {
        DetachedCriteria criteria = DetachedCriteria.forClass(Inventory.class);
        criteria.add(Restrictions.eq("warehouse.warehouseId", warehouseId));

        if (StringUtils.isNotBlank(goodsName)) {
            criteria.add(Restrictions.like("goodsName", "%" + goodsName + "%"));
        }

        if (startDate != null && endDate != null) {
            criteria.add(Restrictions.between("storageTime", startDate, endDate));
        }

        criteria.addOrder(Order.asc("storageTime"));
        return (List<Inventory>) getHibernateTemplate().findByCriteria(criteria);
    }

    @Transactional
    public void updateInventoryStatus(Integer inventoryId, InventoryStatus newStatus) {
        Inventory inventory = getHibernateTemplate().get(Inventory.class, inventoryId);
        if (inventory != null) {
            inventory.setStatus(newStatus);
            inventory.setUpdateTime(new Date());
            getHibernateTemplate().update(inventory);
        }
    }
}

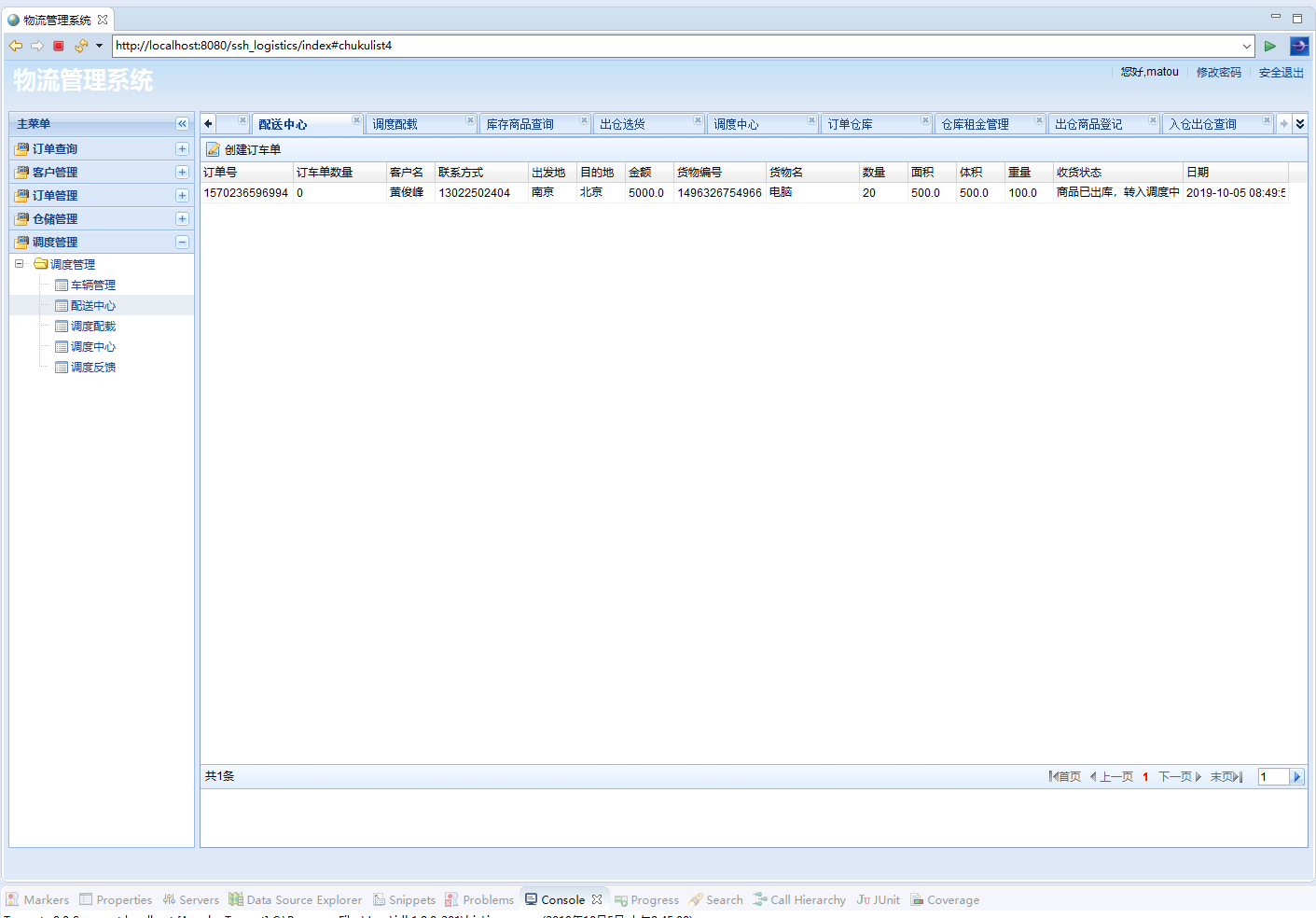

运输调度模块采用贪心算法实现车辆路径优化，确保运输效率最大化：

// DispatchService.java - 运输调度业务逻辑
@Service
public class DispatchService {
    @Autowired
    private VehicleDAO vehicleDAO;
    @Autowired
    private TransportRecordDAO transportRecordDAO;

    public DispatchResult optimizeDispatch(List<Order> orders, List<Vehicle> vehicles) {
        // 按目的地聚类订单
        Map<String, List<Order>> clusterOrders = clusterOrdersByDestination(orders);

        // 车辆分配算法
        List<DispatchPlan> plans = new ArrayList<>();
        for (Map.Entry<String, List<Order>> entry : clusterOrders.entrySet()) {
            DispatchPlan plan = assignVehicleToCluster(entry.getValue(), vehicles);
            if (plan != null) {
                plans.add(plan);
            }
        }

        return new DispatchResult(plans, calculateEfficiency(plans));
    }

    private Map<String, List<Order>> clusterOrdersByDestination(List<Order> orders) {
        return orders.stream()
                    .collect(Collectors.groupingBy(Order::getReceiverAddress));
    }
}

实体模型与关系映射

系统通过Hibernate注解实现对象关系映射，确保Java实体类与数据库表的精确对应。以订单实体为例：

// Order.java - 订单实体类
@Entity
@Table(name = "orders")
public class Order implements Serializable {
    @Id
    @Column(name = "order_id", length = 32)
    private String orderId;

    @ManyToOne(fetch = FetchType.LAZY)
    @JoinColumn(name = "customer_id")
    private Customer customer;

    @Column(name = "sender_name", nullable = false, length = 50)
    private String senderName;

    @Column(name = "sender_phone", nullable = false, length = 20)
    private String senderPhone;

    @Column(name = "receiver_name", nullable = false, length = 50)
    private String receiverName;

    @Column(name = "receiver_phone", nullable = false, length = 20)
    private String receiverPhone;

    @Column(name = "weight", precision = 10, scale = 2)
    private BigDecimal weight;

    @Column(name = "volume", precision = 10, scale = 2)
    private BigDecimal volume;

    @Column(name = "freight", precision = 10, scale = 2)
    private BigDecimal freight;

    @Column(name = "order_status")
    @Enumerated(EnumType.ORDINAL)
    private OrderStatus orderStatus;

    @Temporal(TemporalType.TIMESTAMP)
    @Column(name = "create_time")
    private Date createTime;

    @Temporal(TemporalType.TIMESTAMP)
    @Column(name = "update_time")
    private Date updateTime;

    @OneToMany(mappedBy = "order", cascade = CascadeType.ALL)
    private Set<TransportRecord> transportRecords = new HashSet<>();

    // 构造方法、getter和setter省略
}

Hibernate的延迟加载（LAZY）策略优化了关联查询性能，级联操作确保数据一致性。枚举类型映射简化了状态管理，时间戳字段自动维护创建和更新时序。

安全与事务管理

系统通过Spring声明式事务管理确保数据操作的原子性和一致性：

<!-- applicationContext.xml - Spring事务配置 -->
<bean id="transactionManager"
      class="org.springframework.orm.hibernate5.HibernateTransactionManager">
    <property name="sessionFactory" ref="sessionFactory"/>
</bean>

<tx:advice id="txAdvice" transaction-manager="transactionManager">
    <tx:attributes>
        <tx:method name="get*" read-only="true" propagation="SUPPORTS"/>
        <tx:method name="query*" read-only="true" propagation="SUPPORTS"/>
        <tx:method name="find*" read-only="true" propagation="SUPPORTS"/>
        <tx:method name="*" propagation="REQUIRED" rollback-for="Exception"/>
    </tx:attributes>
</tx:advice>

<aop:config>
    <aop:pointcut id="serviceMethods"
                  expression="execution(* com.logistics.service.*.*(..))"/>
    <aop:advisor advice-ref="txAdvice" pointcut-ref="serviceMethods"/>
</aop:config>

查询方法使用SUPPORTS传播行为优化性能，写操作采用REQUIRED传播行为确保事务完整性。异常回滚机制防止数据不一致。

系统优化与功能扩展方向

实时轨迹追踪功能可通过集成GPS设备和WebSocket技术实现。在运输车辆安装GPS终端，系统建立WebSocket长连接推送位置信息：

// WebSocket端点实现位置推送
@ServerEndpoint("/tracking/{orderId}")
public class TrackingEndpoint {
    private static Map<String, Session> sessions = new ConcurrentHashMap<>();

    @OnOpen
    public void onOpen(Session session, @PathParam("orderId") String orderId) {
        sessions.put(orderId, session);
        // 推送最新位置信息
        pushLatestLocation(orderId, session);
    }

    private void pushLatestLocation(String orderId, Session session) {
        // 从GPS服务获取实时位置并推送
        Location location = GPSService.getCurrentLocation(orderId);
        session.getAsyncRemote().sendText(JSON.toJSONString(location));
    }
}

智能路径规划算法可引入机器学习模型，基于历史运输数据训练最优路径预测：

# 路径规划机器学习模型示例（未来扩展）
import pandas as pd
from sklearn.ensemble import RandomForestRegressor
from sklearn.model_selection import train_test_split

class RouteOptimizer:
    def __init__(self):
        self.model = RandomForestRegressor(n_estimators=100)

    def train(self, historical_data):
        # 特征工程：天气、交通、距离、时间段等
        features = self.extract_features(historical_data)
        targets = historical_data['transport_time']

        X_train, X_test, y_train, y_test = train_test_split(
            features, targets, test_size=0.2)
        self.model.fit(X_train, y_train)

    def predict_optimal_route(self, current_conditions):
        predicted_time = self.model.predict([current_conditions])
        return self.generate_route_based_on_prediction(predicted_time)

大数据分析平台集成可提供业务洞察，使用Elasticsearch存储日志数据，Kibana进行可视化展示：

// 日志收集与分析组件
@Component
public class LogisticsAnalytics {
    @Autowired
    private TransportRecordDAO transportRecordDAO;

    public AnalyticsResult analyzeTransportEfficiency(Date startDate, Date endDate) {
        // 计算准时率、成本效率、车辆利用率等KPI
        List<TransportRecord> records = transportRecordDAO
            .findByTimeRange(startDate, endDate);

        long totalOrders = records.size();
        long onTimeDeliveries = records.stream()
            .filter(r -> r.getActualArrivalTime().before(r.getEstimatedArrivalTime()))
            .count();

        double onTimeRate = (double) onTimeDeliveries / totalOrders * 100;
        return new AnalyticsResult(onTimeRate, calculateCostEfficiency(records));
    }
}

移动端应用扩展可采用React Native框架开发跨平台应用，为快递员和客户提供便捷的操作界面：

// 移动端订单查询组件（React Native示例）
import React, { useState, useEffect } from 'react';
import { View, Text, FlatList } from 'react-native';

const OrderTrackingApp = () => {
    const [orders, setOrders] = useState([]);

    useEffect(() => {
        fetchOrders();
    }, []);

    const fetchOrders = async () => {
        try {
            const response = await fetch('/api/orders/mobile');
            const orderData = await response.json();
            setOrders(orderData);
        } catch (error) {
            console.error('获取订单数据失败:', error);
        }
    };

    return (
        <View>
            <Text>我的订单</Text>
            <FlatList
                data={orders}
                keyExtractor={item => item.orderId}
                renderItem={({item}) => <OrderItem order={item} />}
            />
        </View>
    );
};

物联网设备集成通过RFID技术实现自动化仓储管理，在货物上粘贴RFID标签，仓库门口安装读写器自动记录出入库：

// RFID数据处理器
@Component
public class RFIDDataProcessor {
    @Autowired
    private InventoryService inventoryService;

    @EventListener
    public void handleRFIDEvent(RFIDScanEvent event) {
        String rfidTag = event.getTagId();
        WarehouseOperation operation = event.getOperationType();

        if (operation == WarehouseOperation.INBOUND) {
            inventoryService.processInbound(rfidTag, event.getTimestamp());
        } else if (operation == WarehouseOperation.OUTBOUND) {
            inventoryService.processOutbound(rfidTag, event.getTimestamp());
        }
    }
}

系统通过精细化的模块划分和严谨的技术实现，为物流企业提供了完整的数字化解决方案。SSH框架的稳定性和扩展性确保了系统能够适应不同规模的业务需求，而模块化的设计理念则为后续功能迭代奠定了坚实基础。随着物流行业的持续发展，该系统通过不断集成新技术，将持续提升物流运营的智能化水平。
