基于JSP+Servlet的高校新生报到迎新管理系统 - 源码深度解析

JavaJavaScriptHTMLCSSMySQLJSP+Servlet
2026-03-053 浏览

文章摘要

本项目是一款基于JSP与Servlet技术栈构建的高校新生报到与迎新管理系统，旨在通过标准化、流程化的线上操作，彻底改变传统依赖纸质表格、人工传递信息的低效迎新模式。系统核心业务价值在于显著降低迎新工作的管理成本与出错率，解决了新生信息分散、各部门协同困难、数据实时性差等关键痛点。通过将报到流程数字...

高校迎新数字化平台：基于JSP+Servlet的智能报到系统

在高校管理信息化的浪潮中，迎新工作作为新生入学首个关键环节，其效率与体验直接影响学校形象。传统迎新模式依赖纸质表格和人工传递信息，存在数据分散、协同困难、实时性差等痛点。本项目采用成熟的JSP+Servlet技术栈，构建了一套全方位的高校新生报到迎新管理系统，实现了迎新流程的数字化、标准化和智能化。

系统架构与技术栈设计

系统严格遵循MVC设计模式，构建了清晰的分层架构。Servlet作为控制器层负责接收前端请求和业务调度，JSP页面承担视图渲染职责，JavaBean封装核心业务逻辑。数据持久层采用JDBC直接连接MySQL数据库，通过预编译语句有效防范SQL注入攻击。

安全机制方面，系统通过Session管理用户登录状态，并利用过滤器实现权限控制。未登录用户访问受限资源时，系统自动重定向至登录页面。这种设计既保证了业务连续性，又确保了数据安全性。

// 登录验证过滤器核心代码
public class LoginFilter implements Filter {
    @Override
    public void doFilter(ServletRequest request, ServletResponse response,
                        FilterChain chain) throws IOException, ServletException {
        HttpServletRequest req = (HttpServletRequest) request;
        HttpServletResponse res = (HttpServletResponse) response;
        HttpSession session = req.getSession();

        String requestURI = req.getRequestURI();
        if (requestURI.endsWith("login.jsp") || requestURI.endsWith("loginServlet")
            || session.getAttribute("user") != null) {
            chain.doFilter(request, response);
        } else {
            res.sendRedirect(req.getContextPath() + "/login.jsp");
        }
    }
}

数据库设计亮点分析

系统数据库包含12个核心表，设计合理考虑了数据完整性、查询效率和扩展性。以下重点分析三个核心表的设计思路：

新生信息表（freshman_info）

CREATE TABLE freshman_info (
    student_id VARCHAR(20) PRIMARY KEY,
    name VARCHAR(50) NOT NULL,
    gender ENUM('男','女') NOT NULL,
    id_card VARCHAR(18) UNIQUE NOT NULL,
    college_id INT NOT NULL,
    major_id INT NOT NULL,
    class_id INT,
    dormitory_id INT,
    enrollment_status ENUM('未报到','已报到','延期报到') DEFAULT '未报到',
    registration_time DATETIME,
    contact_phone VARCHAR(15),
    emergency_contact VARCHAR(50),
    created_time TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
    updated_time TIMESTAMP DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
    FOREIGN KEY (college_id) REFERENCES college_info(college_id),
    FOREIGN KEY (major_id) REFERENCES major_info(major_id),
    FOREIGN KEY (class_id) REFERENCES class_info(class_id),
    FOREIGN KEY (dormitory_id) REFERENCES dormitory_info(dormitory_id)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;

该表设计具有以下技术亮点：

  1. 使用ENUM类型严格约束性别和报到状态等有限值字段，确保数据一致性
  2. 建立多级外键关联，实现与学院、专业、班级、宿舍等信息的完整参照完整性
  3. 采用时间戳自动记录创建和更新时间，便于操作审计和数据追踪
  4. 身份证字段设置唯一约束，防止重复录入

宿舍分配表（dormitory_allocation）

CREATE TABLE dormitory_allocation (
    allocation_id INT AUTO_INCREMENT PRIMARY KEY,
    student_id VARCHAR(20) NOT NULL,
    dormitory_id INT NOT NULL,
    bed_number VARCHAR(10) NOT NULL,
    allocation_date DATE NOT NULL,
    allocated_by INT NOT NULL,
    academic_year VARCHAR(9) NOT NULL,
    status ENUM('已分配','已入住','已退宿') DEFAULT '已分配',
    notes TEXT,
    UNIQUE KEY unique_dorm_bed (dormitory_id, bed_number, academic_year),
    FOREIGN KEY (student_id) REFERENCES freshman_info(student_id),
    FOREIGN KEY (dormitory_id) REFERENCES dormitory_info(dormitory_id),
    FOREIGN KEY (allocated_by) REFERENCES admin_user(user_id)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;

该表设计体现了复杂的业务规则处理：

  1. 联合唯一约束确保同一学年内同一宿舍床位的唯一性
  2. 状态机设计清晰定义宿舍分配生命周期
  3. 分配人外键关联实现操作责任追踪
  4. 学术年度字段支持多学年数据共存

费用管理表（fee_management）

CREATE TABLE fee_management (
    fee_id INT AUTO_INCREMENT PRIMARY KEY,
    student_id VARCHAR(20) NOT NULL,
    fee_type ENUM('学费','住宿费','教材费','其他') NOT NULL,
    amount DECIMAL(10,2) NOT NULL,
    academic_year VARCHAR(9) NOT NULL,
    due_date DATE NOT NULL,
    paid_amount DECIMAL(10,2) DEFAULT 0.00,
    payment_status ENUM('未缴费','部分缴费','已结清') DEFAULT '未缴费',
    last_payment_date DATETIME,
    payment_method VARCHAR(20),
    transaction_id VARCHAR(50),
    created_time TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
    FOREIGN KEY (student_id) REFERENCES freshman_info(student_id),
    INDEX idx_student_status (student_id, payment_status),
    INDEX idx_due_date (due_date)
) DECIMALTIME=InnoDB DEFAULT CHARSET=utf8mb4;

费用表设计凸显了财务业务特性：

  1. 精确的DECIMAL类型处理金额计算，避免浮点数精度问题
  2. 多状态设计支持复杂缴费场景（部分缴费等）
  3. 复合索引优化常见查询场景（按学生和状态查询）
  4. 交易ID字段支持与支付网关对接

核心功能模块深度解析

新生报到流程管理

报到流程是系统的核心业务，采用工作流引擎思想实现多步骤控制。新生完成前一环节后才能进入下一环节，确保流程的完整性和数据准确性。

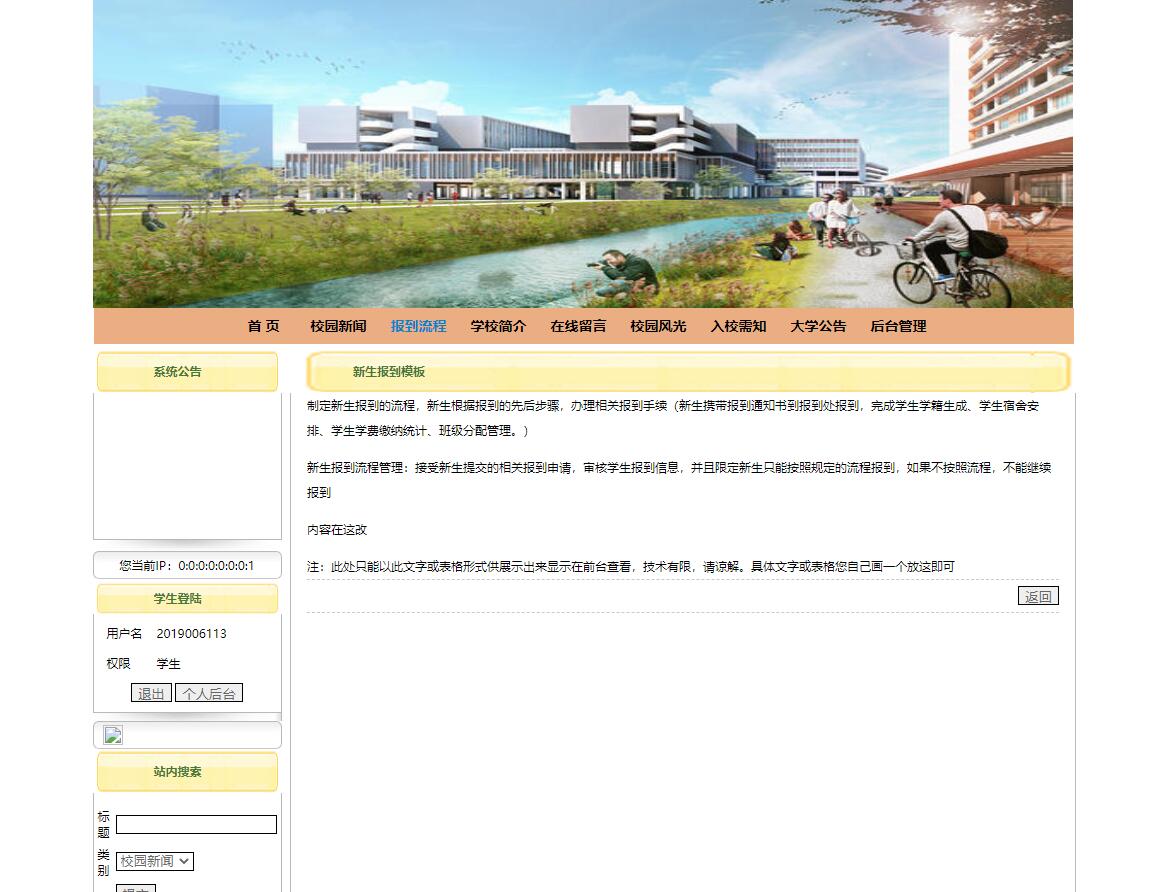

新生报到流程管理

// 报到流程控制Servlet
public class RegistrationProcessServlet extends HttpServlet {
    protected void doPost(HttpServletRequest request, HttpServletResponse response)
            throws ServletException, IOException {
        String studentId = request.getParameter("studentId");
        String currentStep = request.getParameter("currentStep");

        RegistrationService service = new RegistrationService();
        try {
            // 验证前序步骤是否完成
            if (!service.checkPrerequisiteSteps(studentId, currentStep)) {
                request.setAttribute("error", "请先完成前序报到流程");
                request.getRequestDispatcher("/registration.jsp").forward(request, response);
                return;
            }

            // 执行当前步骤业务逻辑
            boolean success = service.processStep(studentId, currentStep, request.getParameterMap());

            if (success) {
                // 获取下一步骤信息
                String nextStep = service.getNextStep(currentStep);
                request.setAttribute("nextStep", nextStep);
                request.getRequestDispatcher("/nextStep.jsp").forward(request, response);
            } else {
                request.setAttribute("error", "流程处理失败，请重试");
                request.getRequestDispatcher("/currentStep.jsp").forward(request, response);
            }
        } catch (Exception e) {
            logger.error("报到流程处理异常", e);
            response.sendError(HttpServletResponse.SC_INTERNAL_SERVER_ERROR);
        }
    }
}

智能宿舍分配算法

宿舍分配采用多重条件匹配算法，综合考虑专业集中、班级统一、性别分离等业务规则，实现自动化最优分配。

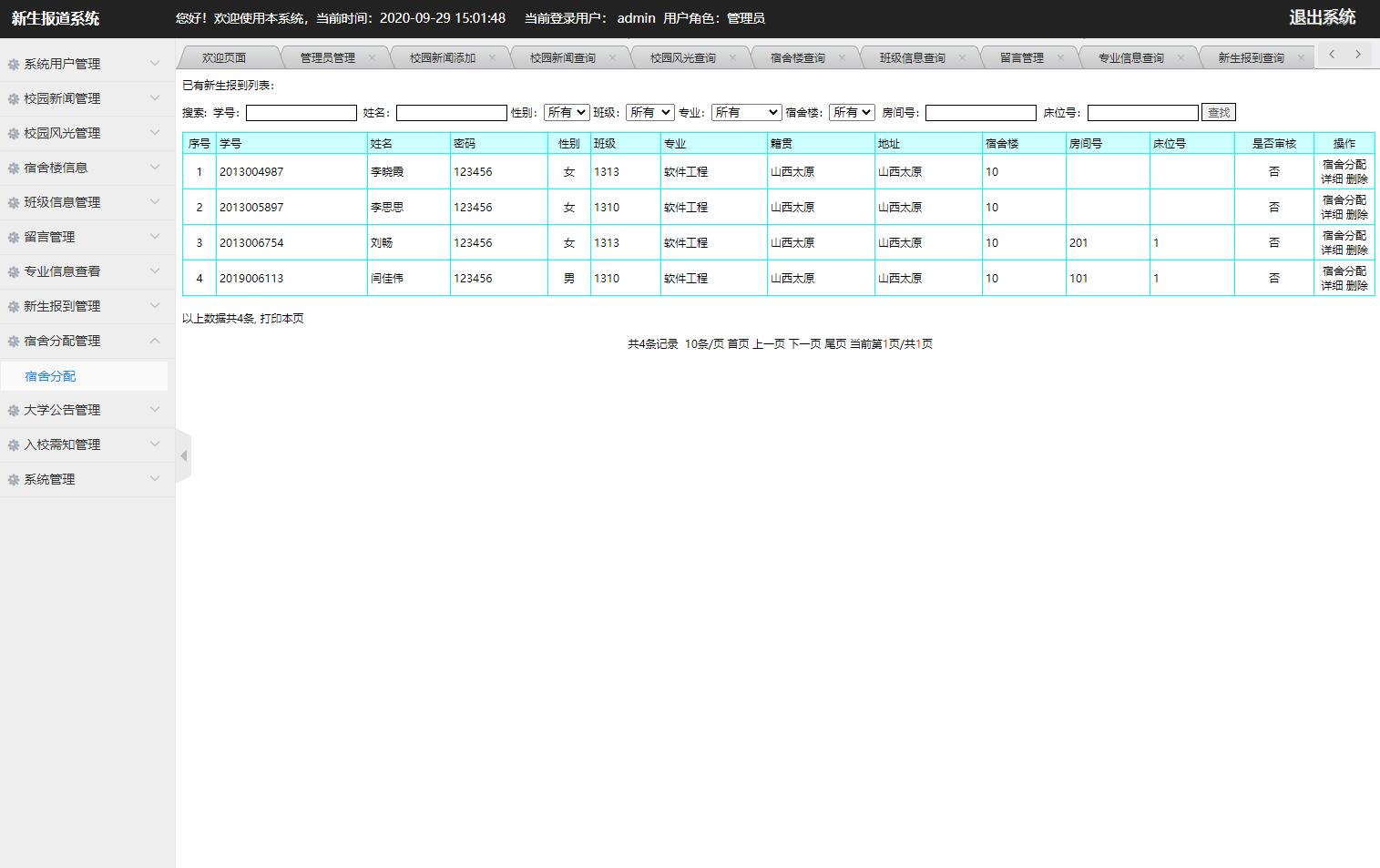

宿舍分配管理

// 宿舍分配核心算法
public class DormitoryAllocator {
    public AllocationResult autoAllocateDormitory(List<Freshman> freshmen,
                                                 List<Dormitory> availableDorms) {
        AllocationResult result = new AllocationResult();

        // 按专业和班级分组
        Map<String, List<Freshman>> groupByMajorClass = freshmen.stream()
            .collect(Collectors.groupingBy(f -> f.getMajorId() + "_" + f.getClassId()));

        for (Map.Entry<String, List<Freshman>> entry : groupByMajorClass.entrySet()) {
            List<Freshman> group = entry.getValue();

            // 按性别分离
            Map<Gender, List<Freshman>> byGender = group.stream()
                .collect(Collectors.groupingBy(Freshman::getGender));

            for (Map.Entry<Gender, List<Freshman>> genderEntry : byGender.entrySet()) {
                List<Freshman> genderGroup = genderEntry.getValue();
                Gender gender = genderEntry.getKey();

                // 查找适合的宿舍楼（按性别区分）
                List<Dormitory> genderSpecificDorms = availableDorms.stream()
                    .filter(d -> d.getGenderRequirement() == gender)
                    .collect(Collectors.toList());

                // 执行分配逻辑
                allocateGroupToDorms(genderGroup, genderSpecificDorms, result);
            }
        }

        return result;
    }

    private void allocateGroupToDorms(List<Freshman> students, List<Dormitory> dorms,
                                     AllocationResult result) {
        // 按宿舍容量排序
        dorms.sort(Comparator.comparingInt(Dormitory::getAvailableBeds).reversed());

        for (Freshman student : students) {
            boolean allocated = false;
            for (Dormitory dorm : dorms) {
                if (dorm.getAvailableBeds() > 0) {
                    // 分配床位
                    Bed bed = dorm.allocateBed(student);
                    if (bed != null) {
                        result.addAllocation(student, dorm, bed);
                        allocated = true;
                        break;
                    }
                }
            }
            if (!allocated) {
                result.addUnallocatedStudent(student);
            }
        }
    }
}

财务缴费管理模块

系统集成多种支付方式，支持学费、住宿费等费用的在线缴纳，实时更新缴费状态，并生成详细的缴费记录。

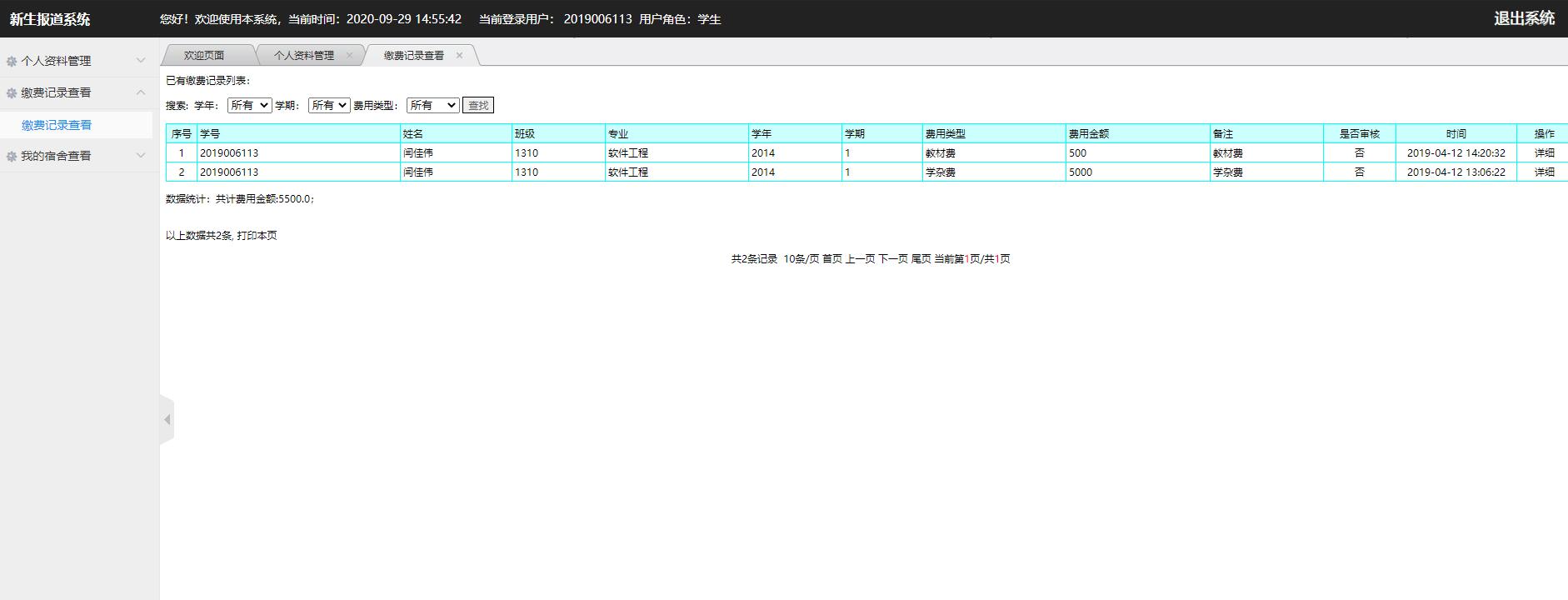

学生缴费记录查看

// 缴费处理服务类
public class PaymentService {
    public PaymentResult processPayment(PaymentRequest request) {
        // 验证请求参数
        if (!validatePaymentRequest(request)) {
            return PaymentResult.failure("请求参数验证失败");
        }

        // 检查费用状态
        FeeItem feeItem = feeDAO.getFeeItemById(request.getFeeId());
        if (feeItem == null) {
            return PaymentResult.failure("费用项目不存在");
        }

        if (feeItem.getPaymentStatus() == PaymentStatus.PAID) {
            return PaymentResult.failure("该费用已结清，无需重复支付");
        }

        // 执行支付
        PaymentGateway gateway = PaymentGatewayFactory.createGateway(request.getPaymentMethod());
        PaymentResponse gatewayResponse = gateway.processPayment(request);

        if (gatewayResponse.isSuccess()) {
            // 更新缴费记录
            updatePaymentRecord(request, gatewayResponse);

            // 发送通知
            sendPaymentNotification(request.getStudentId(), feeItem, gatewayResponse);

            return PaymentResult.success(gatewayResponse.getTransactionId());
        } else {
            return PaymentResult.failure(gatewayResponse.getErrorMessage());
        }
    }

    private void updatePaymentRecord(PaymentRequest request, PaymentResponse response) {
        Connection conn = null;
        PreparedStatement pstmt = null;

        try {
            conn = DatabaseUtil.getConnection();
            conn.setAutoCommit(false);

            // 更新主费用记录
            String updateFeeSQL = "UPDATE fee_management SET paid_amount = paid_amount + ?, "
                                + "payment_status = ?, last_payment_date = NOW() "
                                + "WHERE fee_id = ?";
            pstmt = conn.prepareStatement(updateFeeSQL);
            pstmt.setBigDecimal(1, request.getAmount());
            pstmt.setString(2, calculateNewStatus(request.getAmount(), request.getFeeId()));
            pstmt.setInt(3, request.getFeeId());
            pstmt.executeUpdate();

            // 插入支付记录
            String insertPaymentSQL = "INSERT INTO payment_records (fee_id, amount, "
                                    + "payment_method, transaction_id, payment_time) "
                                    + "VALUES (?, ?, ?, ?, NOW())";
            pstmt = conn.prepareStatement(insertPaymentSQL);
            pstmt.setInt(1, request.getFeeId());
            pstmt.setBigDecimal(2, request.getAmount());
            pstmt.setString(3, request.getPaymentMethod());
            pstmt.setString(4, response.getTransactionId());
            pstmt.executeUpdate();

            conn.commit();
        } catch (SQLException e) {
            try {
                if (conn != null) conn.rollback();
            } catch (SQLException ex) {
                logger.error("回滚失败", ex);
            }
            throw new RuntimeException("支付记录更新失败", e);
        } finally {
            DatabaseUtil.closeResources(null, pstmt, conn);
        }
    }
}

消息通知与公告系统

系统内置多角色消息通知机制，支持定向发送和广播通知，确保重要信息及时准确传达。

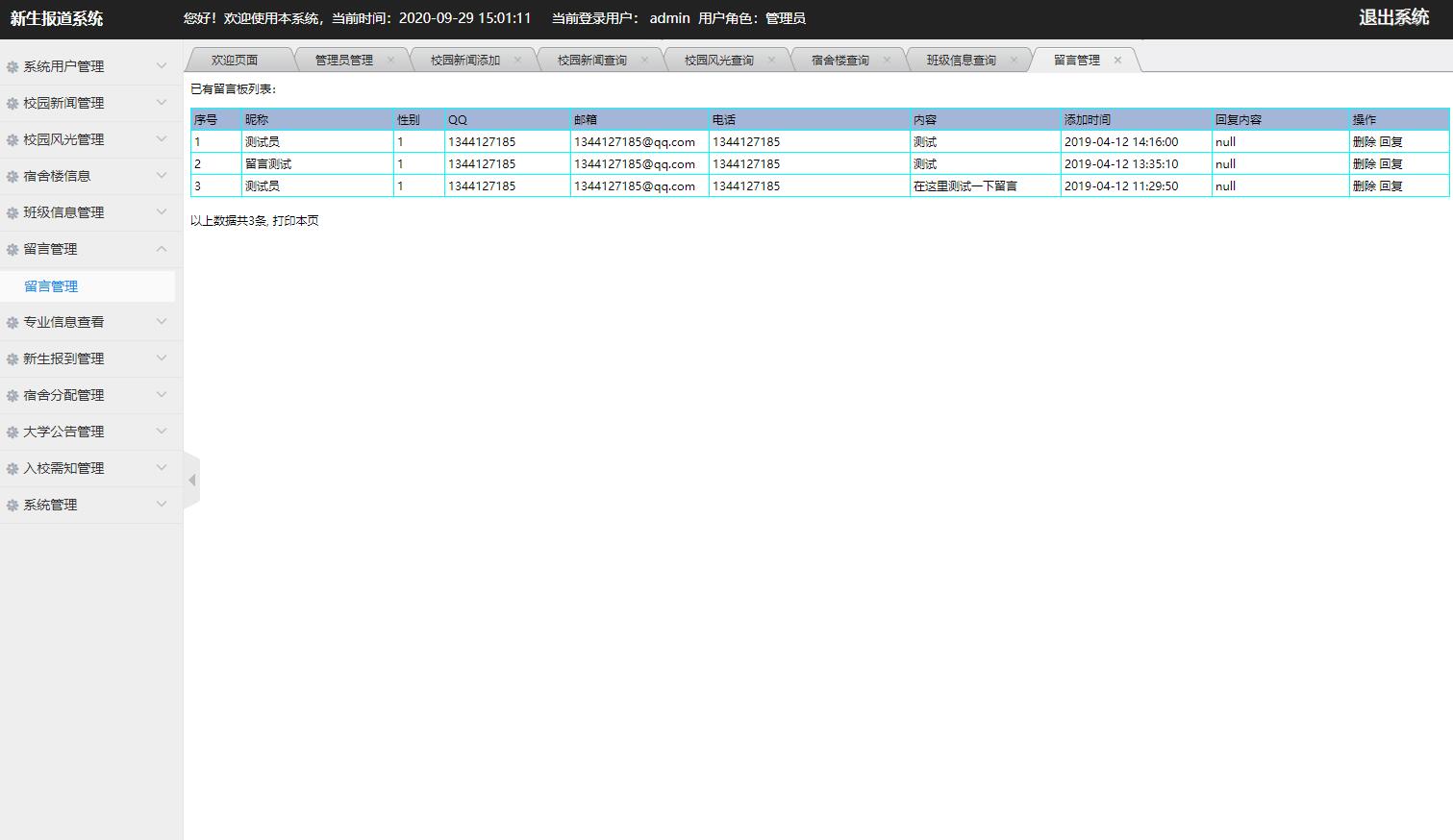

消息管理

<%-- 消息列表JSP页面 --%>
<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<html>
<head>
    <title>消息中心</title>
    <style>
        .message-item { border-left: 4px solid #007bff; padding: 15px; margin-bottom: 10px; }
        .unread { background-color: #f8f9fa; font-weight: bold; }
        .urgent { border-left-color: #dc3545; }
    </style>
</head>
<body>
    <div class="container">
        <h2>我的消息</h2>

        <c:choose>
            <c:when test="${empty messages}">
                <div class="alert alert-info">暂无消息</div>
            </c:when>
            <c:otherwise>
                <c:forEach var="message" items="${messages}">
                    <div class="message-item ${message.unread ? 'unread' : ''} ${message.urgent ? 'urgent' : ''}">
                        <div class="message-header">
                            <span class="message-title">${message.title}</span>
                            <span class="message-time float-right">${message.createTime}</span>
                        </div>
                        <div class="message-content">${message.content}</div>
                        <div class="message-actions">
                            <c:if test="${message.unread}">
                                <button class="btn btn-sm btn-primary mark-read"
                                        data-message-id="${message.messageId}">标记已读</button>
                            </c:if>
                            <c:if test="${not empty message.attachment}">
                                <a href="downloadAttachment?messageId=${message.messageId}"
                                   class="btn btn-sm btn-secondary">下载附件</a>
                            </c:if>
                        </div>
                    </div>
                </c:forEach>

                <%-- 分页控件 --%>
                <nav>
                    <ul class="pagination justify-content-center">
                        <c:forEach begin="1" end="${totalPages}" var="i">
                            <li class="page-item ${currentPage == i ? 'active' : ''}">
                                <a class="page-link" href="messageCenter?page=${i}">${i}</a>
                            </li>
                        </c:forEach>
                    </ul>
                </nav>
            </c:otherwise>
        </c:choose>
    </div>

    <script>
        // 标记消息已读
        document.querySelectorAll('.mark-read').forEach(button => {
            button.addEventListener('click', function() {
                const messageId = this.dataset.messageId;
                fetch('markMessageRead', {
                    method: 'POST',
                    headers: { 'Content-Type': 'application/x-www-form-urlencoded' },
                    body: 'messageId=' + messageId
                }).then(response => {
                    if (response.ok) {
                        this.closest('.message-item').classList.remove('unread');
                        this.remove();
                    }
                });
            });
        });
    </script>
</body>
</html>

实体模型与业务逻辑封装

系统通过精心设计的JavaBean实体类封装业务数据和行为，实现高内聚低耦合的架构目标。

// 新生实体类
public class Freshman implements Serializable {
    private String studentId;
    private String name;
    private Gender gender;
    private String idCard;
    private College college;
    private Major major;
    private ClassInfo classInfo;
    private Dormitory dormitory;
    private EnrollmentStatus enrollmentStatus;
    private Date registrationTime;
    private String contactPhone;
    private List<FeeItem> feeItems;

    // 业务方法
    public boolean canRegister() {
        return enrollmentStatus == EnrollmentStatus.NOT_REGISTERED;
    }

    public boolean hasCompletedAllSteps() {
        // 检查所有必填步骤是否完成
        return registrationService.checkAllStepsCompleted(this.studentId);
    }

    public BigDecimal getTotalFeeAmount() {
        return feeItems.stream()
                .map(FeeItem::getAmount)
                .reduce(BigDecimal.ZERO, BigDecimal::add);
    }

    public BigDecimal getPaidAmount() {
        return feeItems.stream()
                .map(FeeItem::getPaidAmount)
                .reduce(BigDecimal.ZERO, BigDecimal::add);
    }

    // Getter和Setter方法
    // ... 省略详细实现
}

// 枚举类型定义
public enum Gender {
    MALE("男"), FEMALE("女");

    private final String displayName;

    Gender(String displayName) {
        this.displayName = displayName;
    }

    public String getDisplayName() {
        return displayName;
    }
}

public enum EnrollmentStatus {
    NOT_REGISTERED("未报到"),
    REGISTERED("已报到"),
    DEFERRED("延期报到");

    private final String displayName;

    EnrollmentStatus(String displayName) {
        this.displayName = displayName;
    }

    public String getDisplayName()
本文关键词
JSPServlet高校迎新管理系统新生报到系统源码分析

上下篇

上一篇
没有更多文章
下一篇
没有更多文章
