基于JSP+Servlet的学生科研信息管理系统 - 源码深度解析

JavaJavaScriptHTMLCSSMySQLJSP+Servlet
2026-02-122 浏览

文章摘要

基于JSP+Servlet的学生科研信息管理系统，旨在解决高校或科研机构在学生科研活动管理过程中普遍存在的信息分散、流程不规范、数据统计困难等核心痛点。该系统通过集中化管理学生基本信息、科研项目、成果记录等数据，显著提升了信息检索效率与准确性，同时规范了科研项目的申报、审核与跟踪流程，为管理者和教师...

在高校科研管理领域，传统的人工记录和分散式信息管理方式已难以满足日益增长的科研活动需求。学生科研信息管理平台应运而生，该系统采用成熟的JSP+Servlet技术架构，构建了一个集学生信息管理、科研项目跟踪、论文审核流程于一体的综合管理解决方案。

系统架构与技术栈

该平台采用经典的三层架构模式，前端使用JSP进行页面渲染，结合HTML、CSS和JavaScript实现用户交互界面。业务逻辑层由Servlet控制器负责，处理各类请求和响应。数据持久层通过JDBC直接连接MySQL数据库，实现数据的CRUD操作。这种架构确保了系统的高内聚低耦合，为后续功能扩展奠定了坚实基础。

技术栈配置如下：

<!-- 核心依赖配置 -->
<dependencies>
    <dependency>
        <groupId>javax.servlet</groupId>
        <artifactId>javax.servlet-api</artifactId>
        <version>4.0.1</version>
        <scope>provided</scope>
    </dependency>
    <dependency>
        <groupId>mysql</groupId>
        <artifactId>mysql-connector-java</artifactId>
        <version>8.0.28</version>
    </dependency>
    <dependency>
        <groupId>jstl</groupId>
        <artifactId>jstl</artifactId>
        <version>1.2</version>
    </dependency>
</dependencies>

系统采用MVC设计模式，通过前端控制器模式统一处理请求：

@WebServlet("/paper/*")
public class PaperController extends HttpServlet {
    private PaperService paperService = new PaperServiceImpl();

    protected void doPost(HttpServletRequest request, HttpServletResponse response)
        throws ServletException, IOException {
        String path = request.getPathInfo();
        switch(path) {
            case "/add":
                addPaper(request, response);
                break;
            case "/update":
                updatePaper(request, response);
                break;
            case "/query":
                queryPapers(request, response);
                break;
        }
    }

    private void addPaper(HttpServletRequest request, HttpServletResponse response) {
        // 论文添加业务逻辑
    }
}

数据库设计亮点分析

论文表（paper）的规范化设计

论文表作为系统的核心数据载体，其设计体现了高度的规范化理念：

CREATE TABLE `paper` (
  `id` int(20) NOT NULL AUTO_INCREMENT COMMENT '论文ID',
  `title` varchar(30) NOT NULL COMMENT '论文标题',
  `firstauthor` varchar(20) NOT NULL COMMENT '第一作者',
  `pubtime` date NOT NULL COMMENT '发表时间',
  `pubtypeid` int(20) NOT NULL COMMENT '发表类型ID',
  `journalid` int(20) NOT NULL COMMENT '期刊ID',
  `subtypeid` int(20) NOT NULL COMMENT '学科类型ID',
  `firstsubid` int(20) NOT NULL COMMENT '一级学科ID',
  `prosourceid` int(20) NOT NULL COMMENT '项目来源ID',
  `studentid` int(20) NOT NULL COMMENT '学生ID',
  `pubarea` varchar(20) DEFAULT NULL COMMENT '发表区域',
  `istrans` varchar(20) DEFAULT NULL COMMENT '是否翻译',
  `layout` varchar(20) DEFAULT NULL COMMENT '版面',
  `fileurl` varchar(50) DEFAULT NULL COMMENT '文件路径',
  `mentorflag` varchar(20) NOT NULL COMMENT '导师标记',
  `auditflag` varchar(20) NOT NULL COMMENT '审核标记',
  PRIMARY KEY (`id`),
  KEY `fk_pubtype` (`pubtypeid`),
  KEY `fk_journal` (`journalid`),
  CONSTRAINT `fk_journal` FOREIGN KEY (`journalid`) REFERENCES `journal` (`id`) ON UPDATE CASCADE
) ENGINE=InnoDB AUTO_INCREMENT=1000068 DEFAULT CHARSET=utf8 COMMENT='论文表'

设计亮点分析：

  1. 外键约束优化：通过8个外键约束确保数据引用完整性，CASCADE更新策略保证数据一致性
  2. 索引策略：为所有查询频繁的外键字段建立索引，提升联表查询性能
  3. 字段类型选择：varchar长度根据实际业务需求精确设定，避免空间浪费
  4. 自增主键：采用AUTO_INCREMENT确保主键唯一性和插入性能

审核流程表（audit）的事务性设计

审核表设计了完整的工作流追踪机制：

CREATE TABLE `audit` (
  `id` int(20) NOT NULL AUTO_INCREMENT COMMENT '审核ID',
  `paperid` int(20) NOT NULL COMMENT '论文ID',
  `auditorid` int(20) NOT NULL COMMENT '审核员ID',
  `status` varchar(30) NOT NULL COMMENT '审核状态',
  `time` datetime NOT NULL DEFAULT '2024-05-10 12:10:10' ON UPDATE CURRENT_TIMESTAMP COMMENT '审核时间',
  `views` varchar(255) DEFAULT NULL COMMENT '审核意见',
  PRIMARY KEY (`id`),
  KEY `fk_admin` (`auditorid`),
  KEY `fk_paper` (`paperid`),
  CONSTRAINT `fk_paper` FOREIGN KEY (`paperid`) REFERENCES `paper` (`id`) ON DELETE CASCADE ON UPDATE CASCADE
) ENGINE=InnoDB AUTO_INCREMENT=120 DEFAULT CHARSET=utf8 COMMENT='审核表'

事务处理实现：

public class AuditService {
    public boolean submitAudit(Paper paper, Admin auditor, String status, String views) {
        Connection conn = null;
        try {
            conn = DataSourceUtil.getConnection();
            conn.setAutoCommit(false);

            // 更新论文审核状态
            String updatePaper = "UPDATE paper SET auditflag = ? WHERE id = ?";
            PreparedStatement pstmt1 = conn.prepareStatement(updatePaper);
            pstmt1.setString(1, status);
            pstmt1.setInt(2, paper.getId());
            pstmt1.executeUpdate();

            // 插入审核记录
            String insertAudit = "INSERT INTO audit(paperid, auditorid, status, views) VALUES(?,?,?,?)";
            PreparedStatement pstmt2 = conn.prepareStatement(insertAudit);
            pstmt2.setInt(1, paper.getId());
            pstmt2.setInt(2, auditor.getAccount());
            pstmt2.setString(3, status);
            pstmt2.setString(4, views);
            pstmt2.executeUpdate();

            conn.commit();
            return true;
        } catch (SQLException e) {
            if(conn != null) {
                try { conn.rollback(); } catch (SQLException ex) {}
            }
            return false;
        }
    }
}

核心功能实现详解

1. 论文信息管理模块

论文管理是系统的核心功能，支持完整的CRUD操作和文件上传功能。

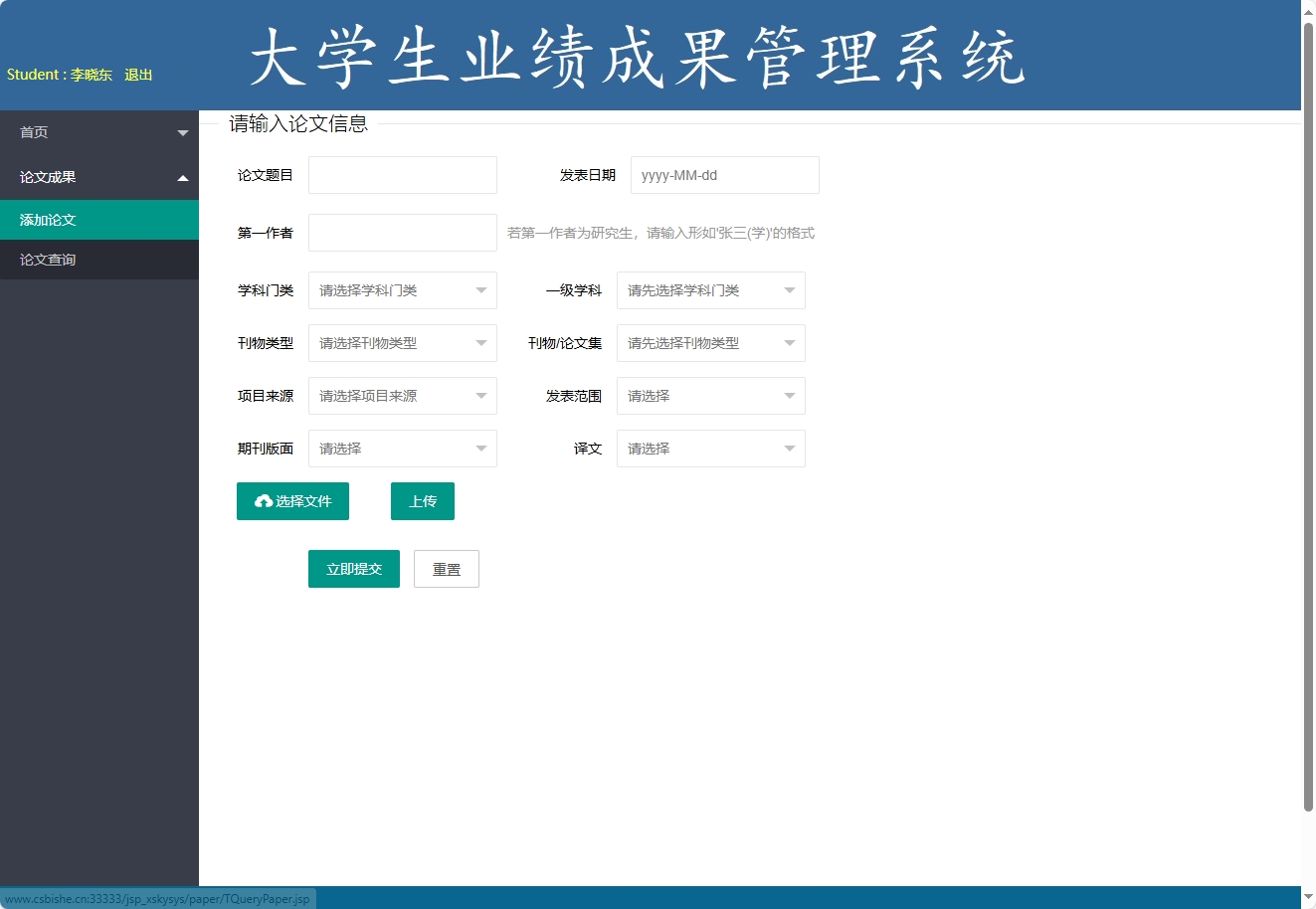

论文添加界面

论文添加功能核心代码：

public class PaperServiceImpl implements PaperService {
    public boolean addPaper(Paper paper, MultipartFile file) {
        Connection conn = null;
        try {
            conn = DataSourceUtil.getConnection();

            // 文件上传处理
            if(file != null && !file.isEmpty()) {
                String fileName = System.currentTimeMillis() + "_" + file.getOriginalFilename();
                String filePath = "/upload/papers/" + fileName;
                File dest = new File(getServletContext().getRealPath(filePath));
                file.transferTo(dest);
                paper.setFileurl(filePath);
            }

            String sql = "INSERT INTO paper(title, firstauthor, pubtime, pubtypeid, " +
                        "journalid, subtypeid, firstsubid, prosourceid, studentid, " +
                        "pubarea, istrans, layout, fileurl, mentorflag, auditflag) " +
                        "VALUES(?,?,?,?,?,?,?,?,?,?,?,?,?,?,?)";

            PreparedStatement pstmt = conn.prepareStatement(sql);
            pstmt.setString(1, paper.getTitle());
            pstmt.setString(2, paper.getFirstauthor());
            pstmt.setDate(3, new java.sql.Date(paper.getPubtime().getTime()));
            // 设置其他参数...
            pstmt.setString(15, "待审核");

            return pstmt.executeUpdate() > 0;
        } catch (Exception e) {
            e.printStackTrace();
            return false;
        }
    }
}

2. 多维度查询与统计功能

系统提供强大的查询能力，支持按多种条件组合检索论文信息。

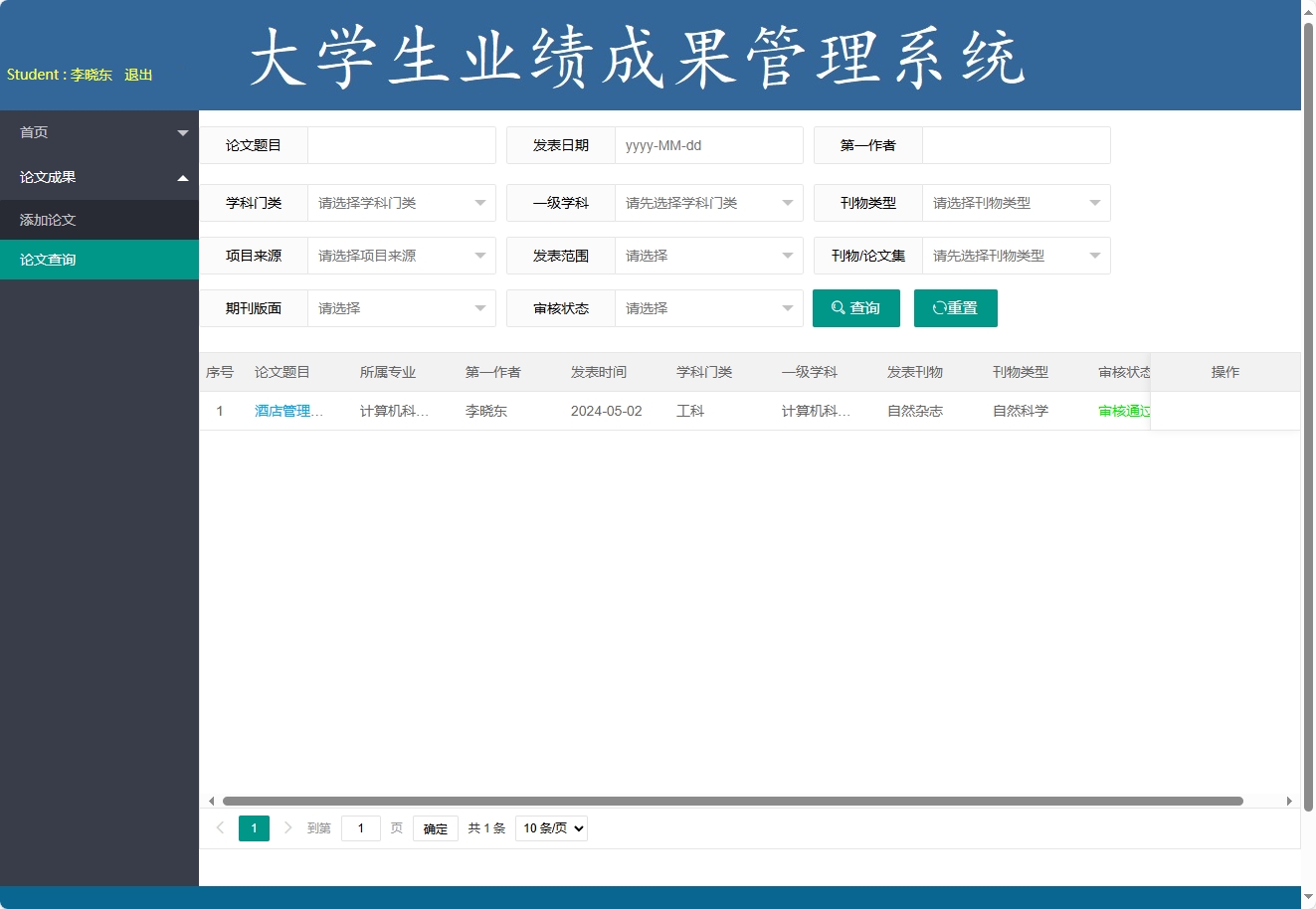

论文查询界面

动态查询构建器实现：

public class PaperQueryBuilder {
    public static String buildQuery(Map<String, String> conditions) {
        StringBuilder sql = new StringBuilder(
            "SELECT p.*, j.journalname, s.name as studentName " +
            "FROM paper p " +
            "LEFT JOIN journal j ON p.journalid = j.id " +
            "LEFT JOIN student s ON p.studentid = s.empnum " +
            "WHERE 1=1"
        );

        List<Object> params = new ArrayList<>();

        if(conditions.containsKey("title")) {
            sql.append(" AND p.title LIKE ?");
            params.add("%" + conditions.get("title") + "%");
        }

        if(conditions.containsKey("author")) {
            sql.append(" AND p.firstauthor LIKE ?");
            params.add("%" + conditions.get("author") + "%");
        }

        if(conditions.containsKey("pubtimeStart")) {
            sql.append(" AND p.pubtime >= ?");
            params.add(java.sql.Date.valueOf(conditions.get("pubtimeStart")));
        }

        if(conditions.containsKey("journalid")) {
            sql.append(" AND p.journalid = ?");
            params.add(Integer.parseInt(conditions.get("journalid")));
        }

        sql.append(" ORDER BY p.pubtime DESC");
        return sql.toString();
    }
}

3. 审核工作流管理

审核模块实现了完整的业务流程，包括状态跟踪和意见反馈。

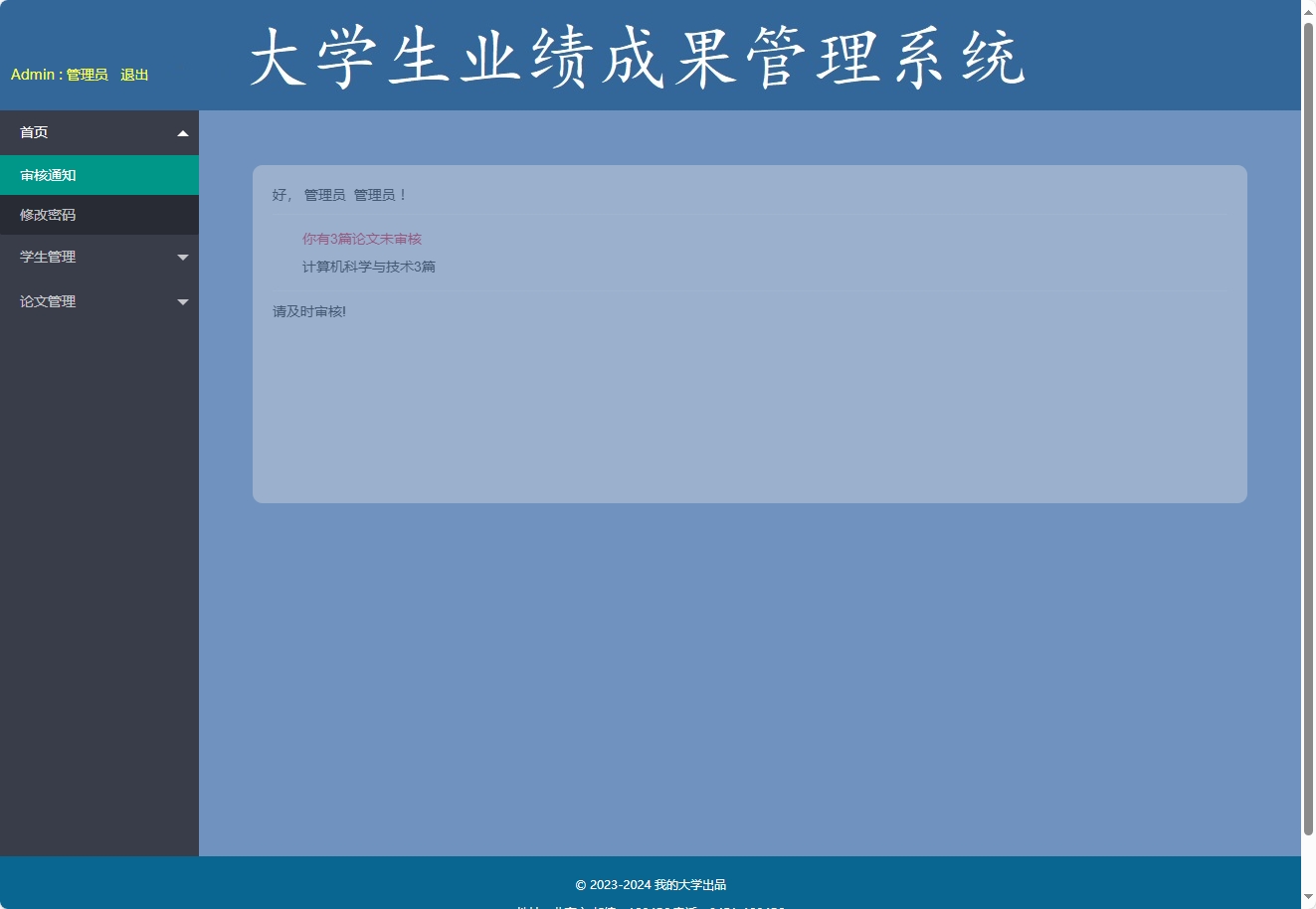

审核通知界面

审核状态机实现：

public class AuditWorkflow {
    private static final Map<String, List<String>> STATE_TRANSITIONS = new HashMap<>();

    static {
        STATE_TRANSITIONS.put("待审核", Arrays.asList("审核中", "退回修改"));
        STATE_TRANSITIONS.put("审核中", Arrays.asList("审核通过", "审核不通过"));
        STATE_TRANSITIONS.put("退回修改", Arrays.asList("重新提交", "取消提交"));
        STATE_TRANSITIONS.put("重新提交", Arrays.asList("审核中"));
    }

    public static boolean isValidTransition(String currentState, String newState) {
        return STATE_TRANSITIONS.getOrDefault(currentState, Collections.emptyList())
                              .contains(newState);
    }

    public static void processAudit(Audit audit, String action, String comments) {
        if(isValidTransition(audit.getStatus(), action)) {
            audit.setStatus(action);
            audit.setViews(comments);
            audit.setTime(new Date());

            // 更新相关论文状态
            updatePaperStatus(audit.getPaperid(), action);
        }
    }
}

4. 学生信息维护模块

学生信息管理支持基础信息的增删改查和权限控制。

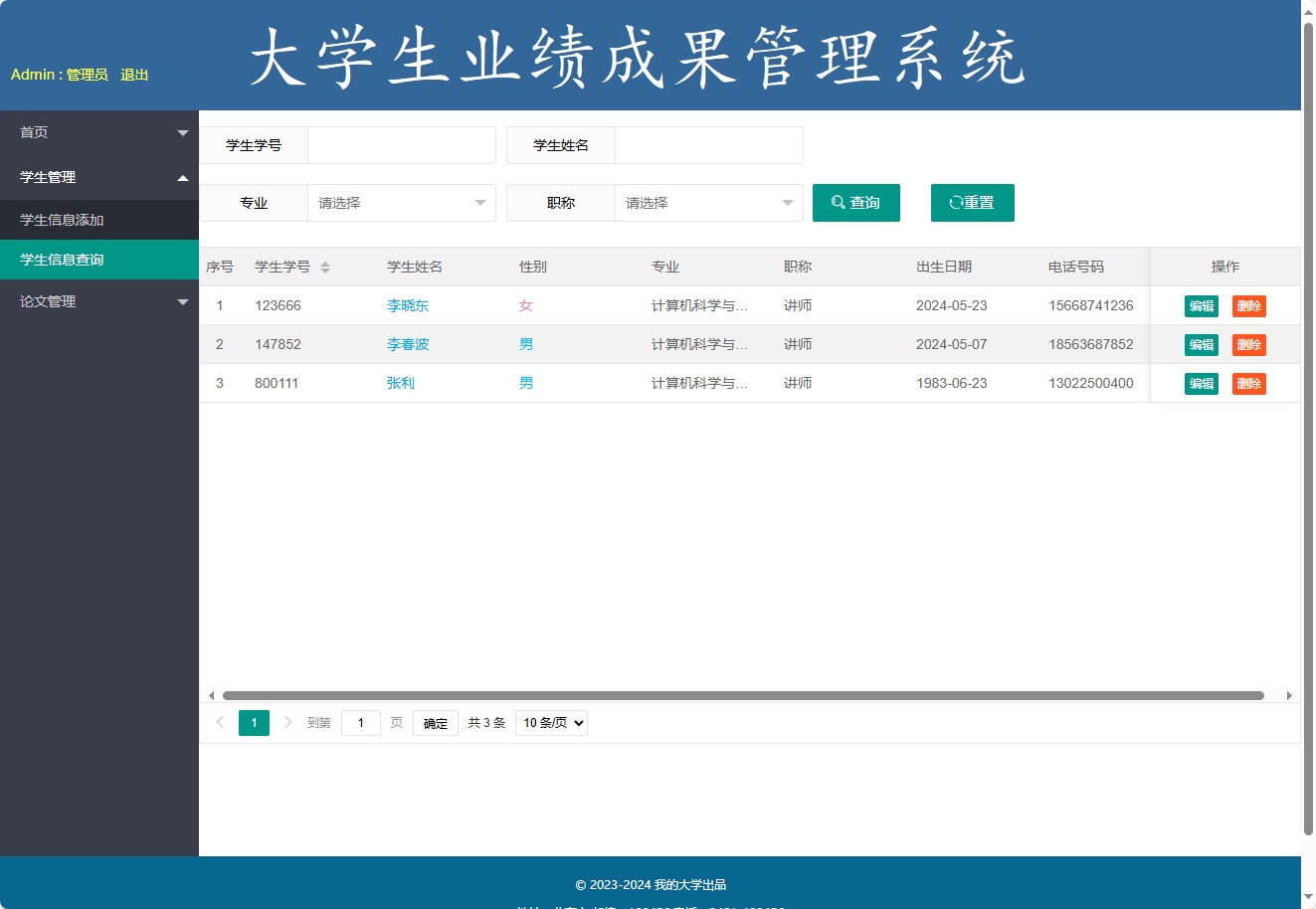

学生信息管理

学生服务层实现：

public class StudentServiceImpl implements StudentService {
    public Student getStudentByEmpnum(int empnum) {
        String sql = "SELECT s.*, m.majorName, t.titlename " +
                    "FROM student s " +
                    "LEFT JOIN major m ON s.majorId = m.id " +
                    "LEFT JOIN title t ON s.titleid = t.id " +
                    "WHERE s.empnum = ?";

        try (Connection conn = DataSourceUtil.getConnection();
             PreparedStatement pstmt = conn.prepareStatement(sql)) {

            pstmt.setInt(1, empnum);
            ResultSet rs = pstmt.executeQuery();

            if(rs.next()) {
                Student student = new Student();
                student.setEmpnum(rs.getInt("empnum"));
                student.setName(rs.getString("name"));
                student.setSex(rs.getString("sex"));
                student.setTelephone(rs.getString("telephone"));
                student.setBirthday(rs.getDate("birthday"));
                // 设置其他属性...
                return student;
            }
        } catch (SQLException e) {
            e.printStackTrace();
        }
        return null;
    }
}

实体模型设计

系统采用标准的JavaBean规范设计实体类，确保数据封装的一致性：

package beans;

public class Paper {
    private int id;
    private String title;
    private String firstauthor;
    private Date pubtime;
    private int pubtypeid;
    private int journalid;
    private int subtypeid;
    private int firstsubid;
    private int prosourceid;
    private int studentid;
    private String pubarea;
    private String istrans;
    private String layout;
    private String fileurl;
    private String mentorflag;
    private String auditflag;

    // 完整的getter和setter方法
    public int getId() { return id; }
    public void setId(int id) { this.id = id; }

    public String getTitle() { return title; }
    public void setTitle(String title) { this.title = title; }

    // 其他getter/setter...

    @Override
    public String toString() {
        return "Paper [id=" + id + ", title=" + title + ", firstauthor=" + firstauthor + "]";
    }
}

数据访问层封装：

public class PaperDAO {
    private static final String INSERT_SQL = "INSERT INTO paper VALUES(?,?,?,?,?,?,?,?,?,?,?,?,?,?,?)";
    private static final String UPDATE_SQL = "UPDATE paper SET title=?, firstauthor=?, ... WHERE id=?";
    private static final String SELECT_BY_ID = "SELECT * FROM paper WHERE id=?";

    public Paper findById(int id) {
        try (Connection conn = DataSourceUtil.getConnection();
             PreparedStatement pstmt = conn.prepareStatement(SELECT_BY_ID)) {

            pstmt.setInt(1, id);
            ResultSet rs = pstmt.executeQuery();

            if(rs.next()) {
                return mapResultSetToPaper(rs);
            }
        } catch (SQLException e) {
            e.printStackTrace();
        }
        return null;
    }

    private Paper mapResultSetToPaper(ResultSet rs) throws SQLException {
        Paper paper = new Paper();
        paper.setId(rs.getInt("id"));
        paper.setTitle(rs.getString("title"));
        // 映射其他字段...
        return paper;
    }
}

功能展望与优化方向

1. 性能优化与缓存集成

当前系统在数据量增大时可能面临性能瓶颈，引入Redis缓存可显著提升查询性能：

// Redis缓存集成示例
@Component
public class PaperCacheService {
    @Autowired
    private RedisTemplate<String, Object> redisTemplate;

    private static final String PAPER_CACHE_PREFIX = "paper:";
    private static final long CACHE_EXPIRE_HOURS = 24;

    public Paper getPaperWithCache(int paperId) {
        String cacheKey = PAPER_CACHE_PREFIX + paperId;
        Paper paper = (Paper) redisTemplate.opsForValue().get(cacheKey);

        if(paper == null) {
            paper = paperDAO.findById(paperId);
            if(paper != null) {
                redisTemplate.opsForValue().set(cacheKey, paper,
                    CACHE_EXPIRE_HOURS, TimeUnit.HOURS);
            }
        }
        return paper;
    }
}

2. 微服务架构改造

将单体应用拆分为微服务，提升系统可扩展性和维护性：

# 微服务配置示例
spring:
  application:
    name: research-management-service
  cloud:
    nacos:
      discovery:
        server-addr: localhost:8848
    gateway:
      routes:
        - id: paper-service
          uri: lb://paper-service
          predicates:
            - Path=/api/papers/**
        - id: audit-service
          uri: lb://audit-service
          predicates:
            - Path=/api/audit/**

3. 全文检索功能增强

集成Elasticsearch实现高级搜索能力：

// Elasticsearch集成
@Repository
public class PaperSearchRepository {
    private final ElasticsearchOperations elasticsearchOperations;

    public List<Paper> searchByKeywords(String keywords) {
        NativeSearchQuery searchQuery = new NativeSearchQueryBuilder()
            .withQuery(QueryBuilders.multiMatchQuery(keywords, "title", "abstract", "keywords"))
            .withHighlightFields(
                new HighlightBuilder.Field("title"),
                new HighlightBuilder.Field("abstract")
            )
            .build();

        return elasticsearchOperations.queryForList(searchQuery, Paper.class);
    }
}

4. 移动端适配与PWA支持

开发响应式界面并集成PWA技术，提升移动端用户体验：

// 服务工作者注册
if('serviceWorker' in navigator) {
    navigator.serviceWorker.register('/sw.js')
        .then(registration => {
            console.log('SW registered: ', registration);
        })
        .catch(registrationError => {
            console.log('SW registration failed: ', registrationError);
        });
}

5. 大数据分析与可视化

集成数据分析平台，提供科研趋势分析：

// 数据分析服务
@Service
public class ResearchAnalyticsService {
    public ResearchTrends analyzePublicationTrends(int yearRange) {
        String sql = """
            SELECT YEAR(pubtime) as year, COUNT(*) as count,
                   AVG(CASE WHEN impact_factor IS NOT NULL THEN impact_factor END) as avg_impact
            FROM paper p
            LEFT JOIN journal j ON p.journalid = j.id
            WHERE pubtime >= DATE_SUB(NOW(), INTERVAL ? YEAR)
            GROUP BY YEAR(pubtime)
            ORDER BY year DESC
            """;

        // 执行分析查询...
        return researchTrends;
    }
}

该学生科研信息管理平台通过严谨的数据库设计、

本文关键词
JSPServlet学生科研信息管理系统源码解析MVC架构

上下篇

上一篇
没有更多文章
下一篇
没有更多文章
