教务管理系统：JSP+Servlet架构下的学籍与成绩管理解决方案

传统教育机构在学籍与成绩管理方面长期面临诸多挑战：纸质化存储易丢失、人工统计效率低下、数据关联度弱、查询核验不便。这些痛点不仅增加了教务人员的工作负担，也影响了教育管理的准确性和时效性。针对这些问题，我们开发了一套基于JSP+Servlet技术的教务管理系统，实现了学籍与成绩数据的电子化统一管理。

系统架构与技术栈

系统采用经典的JSP+Servlet轻量级MVC架构，严格遵循分层设计规范。架构分为四个核心层次：实体层封装Student、Score等核心数据对象，统一数据格式；数据访问层基于JDBC实现与MySQL数据库的CRUD操作，嵌入事务控制保障数据操作的原子性；业务逻辑层承载学籍状态校验、成绩计算、异动规则校验等核心业务规则；控制层由Servlet担任，负责请求分发和参数校验。

技术栈选择上，后端采用成熟的Java EE技术，前端使用JSP结合HTML/CSS/JavaScript，数据库选用MySQL 5.7+版本。这种技术组合确保了系统的稳定性、可维护性和扩展性。

数据库设计深度解析

成绩信息表的设计优化

chengjixinxi表作为系统的核心数据表，其设计体现了多个优化考量：

CREATE TABLE `chengjixinxi` (
  `ID` int(11) NOT NULL AUTO_INCREMENT COMMENT '主键ID',
  `xuehao` varchar(50) DEFAULT NULL COMMENT '学号',
  `xingming` varchar(50) DEFAULT NULL COMMENT '姓名',
  `banji` varchar(50) DEFAULT NULL COMMENT '班级',
  `xueyuan` varchar(50) DEFAULT NULL COMMENT '学院',
  `xuenian` varchar(50) DEFAULT NULL COMMENT '学年',
  `kecheng` varchar(50) DEFAULT NULL COMMENT '课程',
  `chengji` varchar(50) DEFAULT NULL COMMENT '成绩',
  `beizhu` varchar(255) DEFAULT NULL COMMENT '备注',
  `addtime` timestamp NOT NULL DEFAULT current_timestamp() ON UPDATE current_timestamp() COMMENT '添加时间',
  PRIMARY KEY (`ID`)
) ENGINE=InnoDB AUTO_INCREMENT=13 DEFAULT CHARSET=utf8 COLLATE=utf8_general_ci COMMENT='成绩信息表'

该表设计的亮点包括：

• 使用自增主键ID确保记录唯一性，避免学号重复可能带来的问题
• xuehao字段采用varchar(50)类型，适应不同学校的学号编码规则
• chengji字段设计为varchar类型而非数值类型，可支持"优秀"、"良好"等等级制成绩
• 添加addtime时间戳字段，自动记录数据操作时间，便于审计和追踪
• 使用InnoDB存储引擎，支持事务处理和行级锁定

用户权限管理的表结构设计

allusers表承担着系统权限控制的核心功能：

CREATE TABLE `allusers` (
  `ID` int(11) NOT NULL AUTO_INCREMENT COMMENT '主键ID',
  `username` varchar(50) DEFAULT NULL COMMENT '用户名',
  `pwd` varchar(50) DEFAULT NULL COMMENT '密码',
  `cx` varchar(50) DEFAULT NULL COMMENT '权限',
  `addtime` timestamp NOT NULL DEFAULT current_timestamp() ON UPDATE current_timestamp() COMMENT '添加时间',
  PRIMARY KEY (`ID`)
) ENGINE=InnoDB AUTO_INCREMENT=2 DEFAULT CHARSET=utf8 COLLATE=utf8_general_ci COMMENT='用户信息表'

权限字段cx采用字符串类型存储角色标识，支持灵活的权限分配。在实际应用中，可以通过建立角色权限映射表来进一步细化权限控制。

核心功能实现详解

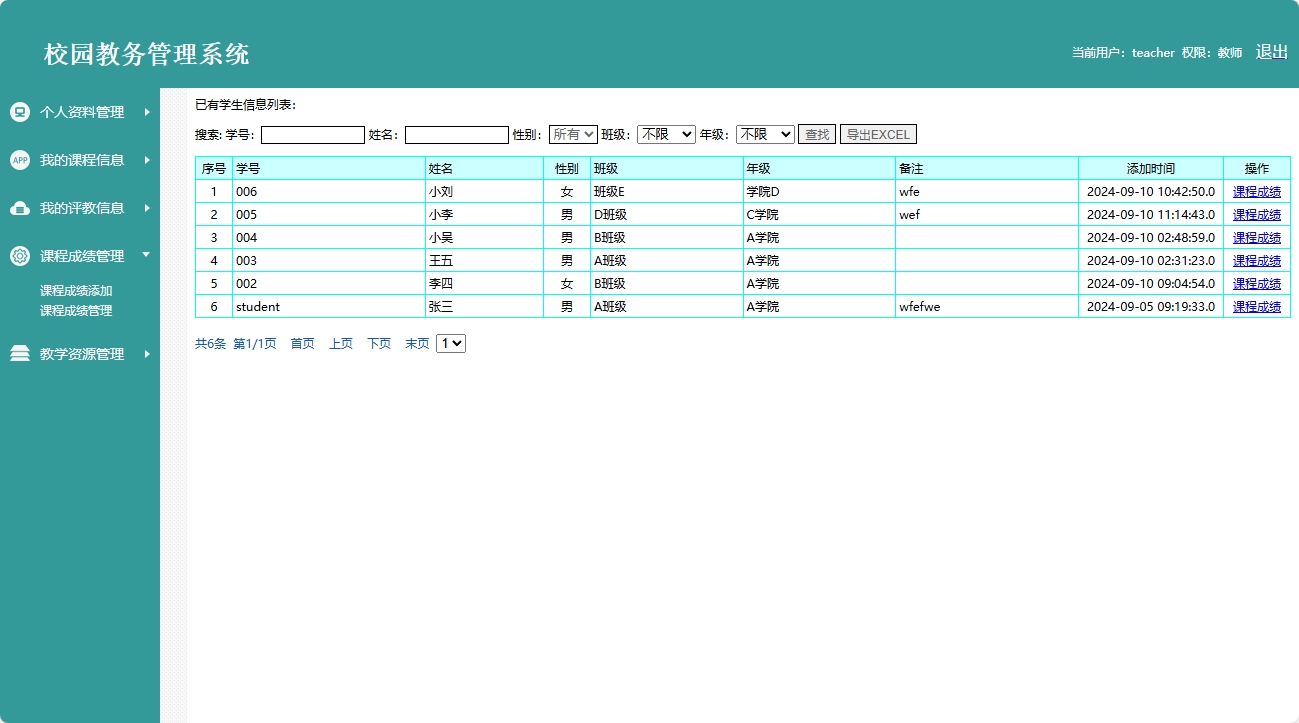

1. 成绩管理模块

成绩管理是系统的核心功能，支持多角色协同操作。教师可以录入和修改所授课程的成绩，教务处管理人员拥有全局管理权限。

成绩录入Servlet核心代码：

@WebServlet("/ScoreAddServlet")
public class ScoreAddServlet extends HttpServlet {
    private static final long serialVersionUID = 1L;
    private ScoreDAO scoreDAO = new ScoreDAO();

    protected void doPost(HttpServletRequest request, HttpServletResponse response)
            throws ServletException, IOException {

        request.setCharacterEncoding("UTF-8");
        String xuehao = request.getParameter("xuehao");
        String xingming = request.getParameter("xingming");
        String banji = request.getParameter("banji");
        String kecheng = request.getParameter("kecheng");
        String chengji = request.getParameter("chengji");

        // 数据验证
        if (xuehao == null || xuehao.trim().isEmpty()) {
            request.setAttribute("error", "学号不能为空");
            request.getRequestDispatcher("/scoreAdd.jsp").forward(request, response);
            return;
        }

        // 业务逻辑验证
        if (!isValidScore(chengji)) {
            request.setAttribute("error", "成绩格式不正确");
            request.getRequestDispatcher("/scoreAdd.jsp").forward(request, response);
            return;
        }

        try {
            Chengji chengjiObj = new Chengji();
            chengjiObj.setXuehao(xuehao);
            chengjiObj.setXingming(xingming);
            chengjiObj.setBanji(banji);
            chengjiObj.setKecheng(kecheng);
            chengjiObj.setChengji(chengji);
            chengjiObj.setAddtime(new Timestamp(System.currentTimeMillis()));

            boolean success = scoreDAO.addScore(chengjiObj);

            if (success) {
                response.sendRedirect("scoreManage.jsp?msg=添加成功");
            } else {
                request.setAttribute("error", "添加失败，请重试");
                request.getRequestDispatcher("/scoreAdd.jsp").forward(request, response);
            }
        } catch (Exception e) {
            e.printStackTrace();
            request.setAttribute("error", "系统错误：" + e.getMessage());
            request.getRequestDispatcher("/scoreAdd.jsp").forward(request, response);
        }
    }

    private boolean isValidScore(String score) {
        // 支持数值型和等级制成绩验证
        if (score.matches("^[0-9]{1,3}$")) {
            int numScore = Integer.parseInt(score);
            return numScore >= 0 && numScore <= 100;
        }
        return score.matches("^(优秀|良好|中等|及格|不及格)$");
    }
}

成绩查询与统计功能：

public class ScoreStatisticsService {

    public Map<String, Object> getClassScoreStatistics(String banji, String xuenian) {
        Map<String, Object> statistics = new HashMap<>();

        try {
            Connection conn = DBUtil.getConnection();
            String sql = "SELECT kecheng, AVG(CAST(chengji AS DECIMAL)) as avg_score, " +
                        "MAX(CAST(chengji AS DECIMAL)) as max_score, " +
                        "MIN(CAST(chengji AS DECIMAL)) as min_score, " +
                        "COUNT(*) as total_count " +
                        "FROM chengjixinxi WHERE banji = ? AND xuenian = ? " +
                        "GROUP BY kecheng";

            PreparedStatement pstmt = conn.prepareStatement(sql);
            pstmt.setString(1, banji);
            pstmt.setString(2, xuenian);
            ResultSet rs = pstmt.executeQuery();

            List<Map<String, Object>> courseStats = new ArrayList<>();
            while (rs.next()) {
                Map<String, Object> courseStat = new HashMap<>();
                courseStat.put("kecheng", rs.getString("kecheng"));
                courseStat.put("avg_score", String.format("%.2f", rs.getDouble("avg_score")));
                courseStat.put("max_score", rs.getInt("max_score"));
                courseStat.put("min_score", rs.getInt("min_score"));
                courseStat.put("total_count", rs.getInt("total_count"));
                courseStats.add(courseStat);
            }

            statistics.put("course_stats", courseStats);
            statistics.put("banji", banji);
            statistics.put("xuenian", xuenian);

            DBUtil.close(conn, pstmt, rs);
        } catch (SQLException e) {
            e.printStackTrace();
        }

        return statistics;
    }
}

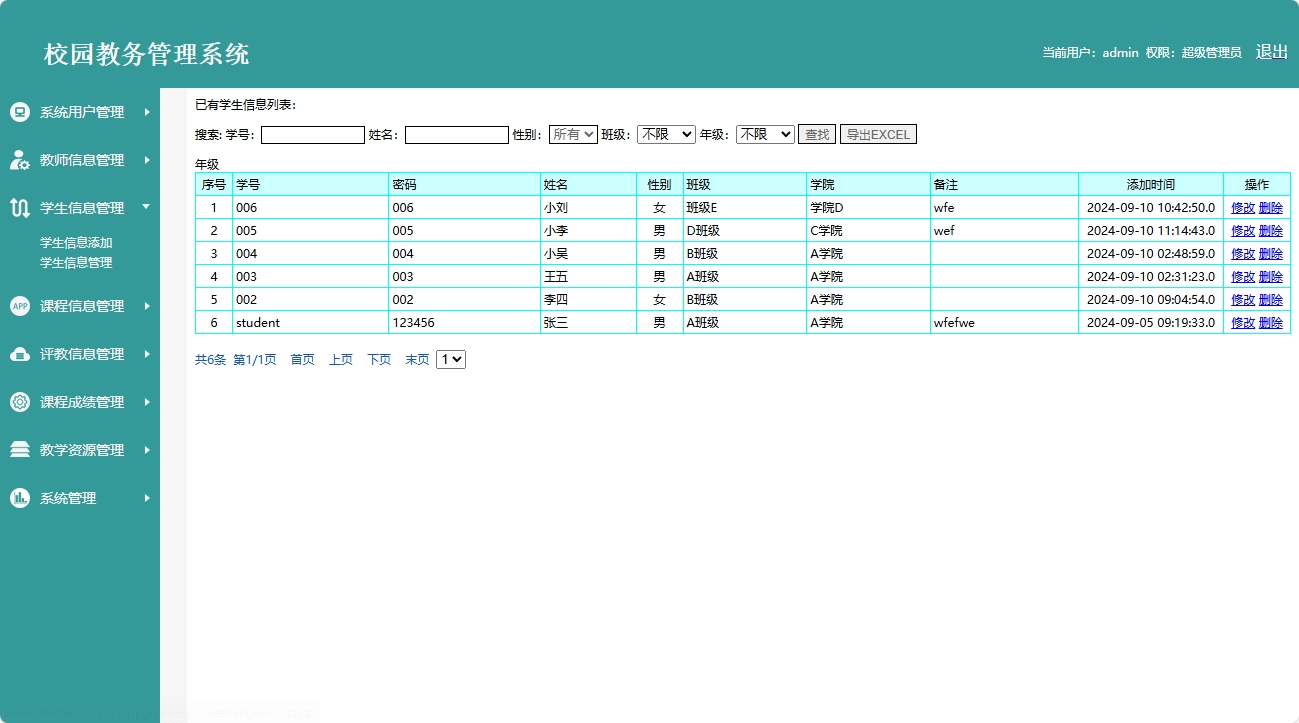

2. 学籍信息管理

学籍管理模块实现了学生信息的全生命周期管理，包括信息录入、查询、修改和异动处理。

学籍信息实体类设计：

public class Student implements Serializable {
    private static final long serialVersionUID = 1L;

    private int id;
    private String xuehao;
    private String xingming;
    private String xingbie;
    private String banji;
    private String xueyuan;
    private String zhuanye;
    private String ruxueshijian;
    private String xuezhi;
    private String beizhu;
    private Timestamp addtime;

    // 构造函数
    public Student() {}

    public Student(String xuehao, String xingming, String banji, String xueyuan) {
        this.xuehao = xuehao;
        this.xingming = xingming;
        this.banji = banji;
        this.xueyuan = xueyuan;
    }

    // Getter和Setter方法
    public int getId() { return id; }
    public void setId(int id) { this.id = id; }

    public String getXuehao() { return xuehao; }
    public void setXuehao(String xuehao) { this.xuehao = xuehao; }

    public String getXingming() { return xingming; }
    public void setXingming(String xingming) { this.xingming = xingming; }

    // 其他getter/setter方法...

    @Override
    public String toString() {
        return "Student{" +
                "id=" + id +
                ", xuehao='" + xuehao + '\'' +
                ", xingming='" + xingming + '\'' +
                ", banji='" + banji + '\'' +
                ", xueyuan='" + xueyuan + '\'' +
                '}';
    }
}

学籍异动处理业务逻辑：

public class StudentStatusService {

    public boolean processStatusChange(Student student, String changeType, String reason) {
        // 验证学籍状态是否允许进行该类型异动
        if (!validateStatusChange(student, changeType)) {
            return false;
        }

        // 记录异动历史
        boolean historyRecorded = recordStatusChangeHistory(student, changeType, reason);

        // 更新学生状态
        boolean statusUpdated = updateStudentStatus(student, changeType);

        return historyRecorded && statusUpdated;
    }

    private boolean validateStatusChange(Student student, String changeType) {
        // 实现复杂的业务规则验证
        // 例如：休学后不能直接毕业，需要先复学
        // 退学后不能进行其他异动操作等

        String currentStatus = getCurrentStatus(student.getId());

        Map<String, List<String>> allowedTransitions = new HashMap<>();
        allowedTransitions.put("正常", Arrays.asList("休学", "转专业", "退学", "毕业"));
        allowedTransitions.put("休学", Arrays.asList("复学", "退学"));
        allowedTransitions.put("复学", Arrays.asList("休学", "转专业", "退学", "毕业"));

        return allowedTransitions.get(currentStatus) != null &&
               allowedTransitions.get(currentStatus).contains(changeType);
    }
}

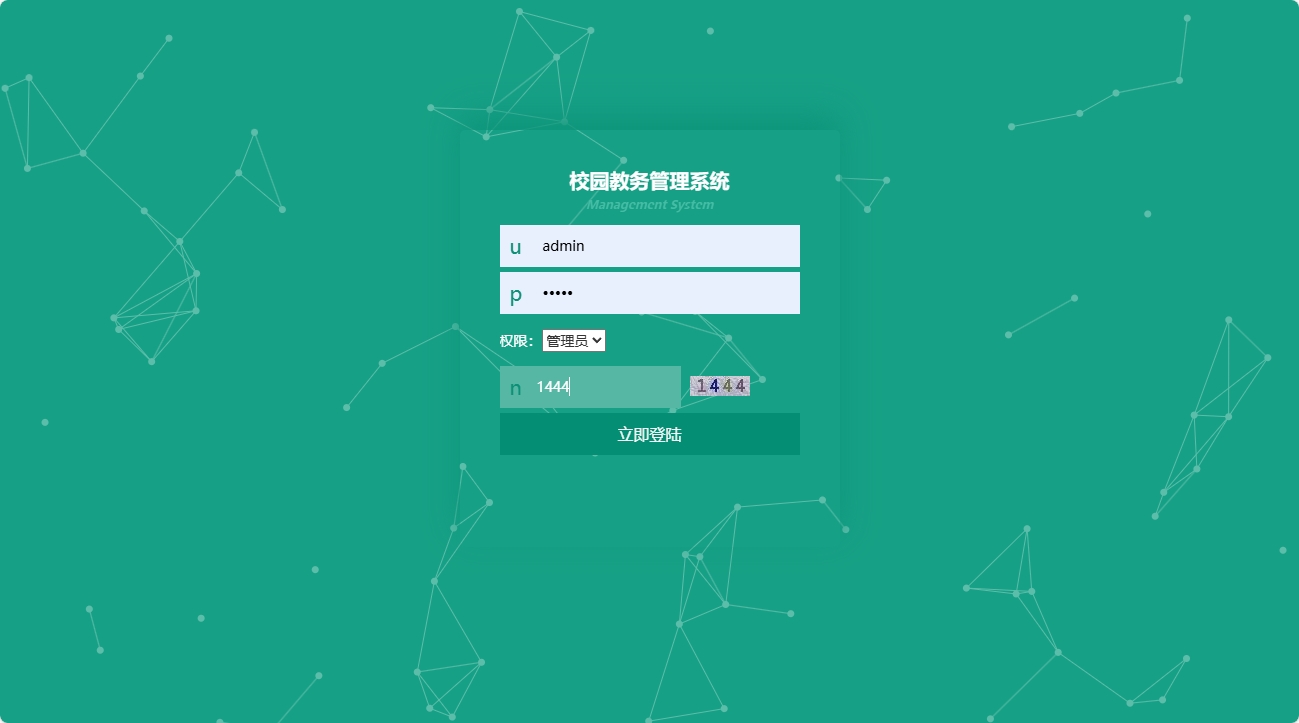

3. 多角色权限控制

系统支持管理员、教师、学生三种角色，每种角色拥有不同的操作权限。权限控制通过过滤器实现。

权限控制过滤器：

@WebFilter("/*")
public class AuthFilter implements Filter {

    private static final Set<String> PUBLIC_URLS = Set.of(
        "/login.jsp", "/LoginServlet", "/logout.jsp",
        "/css/", "/js/", "/images/"
    );

    @Override
    public void doFilter(ServletRequest request, ServletResponse response,
                        FilterChain chain) throws IOException, ServletException {

        HttpServletRequest httpRequest = (HttpServletRequest) request;
        HttpServletResponse httpResponse = (HttpServletResponse) response;
        HttpSession session = httpRequest.getSession(false);

        String path = httpRequest.getRequestURI().substring(httpRequest.getContextPath().length());

        // 检查是否为公开URL
        if (isPublicUrl(path)) {
            chain.doFilter(request, response);
            return;
        }

        // 检查用户是否登录
        if (session == null || session.getAttribute("user") == null) {
            httpResponse.sendRedirect(httpRequest.getContextPath() + "/login.jsp");
            return;
        }

        User user = (User) session.getAttribute("user");
        String userRole = user.getCx();

        // 检查角色权限
        if (!hasPermission(userRole, path)) {
            httpResponse.sendError(HttpServletResponse.SC_FORBIDDEN, "权限不足");
            return;
        }

        chain.doFilter(request, response);
    }

    private boolean isPublicUrl(String path) {
        return PUBLIC_URLS.stream().anyMatch(path::startsWith);
    }

    private boolean hasPermission(String role, String path) {
        Map<String, Set<String>> rolePermissions = new HashMap<>();

        // 管理员权限
        rolePermissions.put("管理员", Set.of(
            "/admin/", "/student/", "/teacher/", "/score/", "/course/"
        ));

        // 教师权限
        rolePermissions.put("教师", Set.of(
            "/teacher/", "/score/manage", "/course/my"
        ));

        // 学生权限
        rolePermissions.put("学生", Set.of(
            "/student/", "/score/query", "/course/query"
        ));

        Set<String> permissions = rolePermissions.get(role);
        return permissions != null && permissions.stream().anyMatch(path::startsWith);
    }
}

4. 数据访问层设计与优化

数据访问层采用DAO模式，封装所有数据库操作，提供统一的数据访问接口。

基础DAO类设计：

public abstract class BaseDAO<T> {
    protected Connection getConnection() throws SQLException {
        return DBUtil.getConnection();
    }

    protected void closeResources(Connection conn, PreparedStatement pstmt, ResultSet rs) {
        DBUtil.close(conn, pstmt, rs);
    }

    // 通用的分页查询方法
    public PageResult<T> queryByPage(String baseSql, String countSql,
                                    List<Object> params, int pageNum, int pageSize,
                                    RowMapper<T> rowMapper) {
        PageResult<T> pageResult = new PageResult<>();

        Connection conn = null;
        PreparedStatement pstmt = null;
        ResultSet rs = null;

        try {
            conn = getConnection();

            // 查询总记录数
            pstmt = conn.prepareStatement(countSql);
            for (int i = 0; i < params.size(); i++) {
                pstmt.setObject(i + 1, params.get(i));
            }
            rs = pstmt.executeQuery();
            if (rs.next()) {
                pageResult.setTotalCount(rs.getInt(1));
            }

            // 计算总页数
            int totalPage = (int) Math.ceil((double) pageResult.getTotalCount() / pageSize);
            pageResult.setTotalPage(totalPage);
            pageResult.setPageNum(pageNum);
            pageResult.setPageSize(pageSize);

            // 查询当前页数据
            String pageSql = baseSql + " LIMIT ? OFFSET ?";
            pstmt = conn.prepareStatement(pageSql);
            int paramIndex = 1;
            for (Object param : params) {
                pstmt.setObject(paramIndex++, param);
            }
            pstmt.setInt(paramIndex++, pageSize);
            pstmt.setInt(paramIndex++, (pageNum - 1) * pageSize);

            rs = pstmt.executeQuery();
            List<T> dataList = new ArrayList<>();
            while (rs.next()) {
                dataList.add(rowMapper.mapRow(rs));
            }
            pageResult.setData(dataList);

        } catch (SQLException e) {
            e.printStackTrace();
        } finally {
            closeResources(conn, pstmt, rs);
        }

        return pageResult;
    }
}

成绩DAO具体实现：

public class ScoreDAO extends BaseDAO<Chengji> {

    public boolean addScore(Chengji chengji) {
        String sql = "INSERT INTO chengjixinxi (xuehao, xingming, banji, xueyuan, " +
                    "xuenian, kecheng, chengji, beizhu, addtime) " +
                    "VALUES (?, ?, ?, ?, ?, ?, ?, ?, ?)";

        Connection conn = null;
        PreparedStatement pstmt = null;

        try {
            conn = getConnection();
            pstmt = conn.prepareStatement(sql);

            pstmt.setString(1, chengji.getXuehao());
            pstmt.setString(2, chengji.getXingming());
            pstmt.setString(3, chengji.getBanji());
            pstmt.setString(4, chengji.getXueyuan());
            pstmt.setString(5, chengji.getXuenian());
            pstmt.setString(6, chengji.getKecheng());
            pstmt.setString(7, chengji.getChengji());
            pstmt.setString(8, chengji.getBeizhu());
            pstmt.setTimestamp(9, chengji.getAddtime());

            int result = pstmt.executeUpdate();
            return result > 0;

        } catch (SQLException e) {
            e.printStackTrace();
            return false;
        } finally {
            closeResources(conn, pstmt, null);
        }
    }

    public List<Chengji> getScoresByStudent(String xuehao) {
        String sql = "SELECT * FROM chengjixinxi WHERE xuehao = ? ORDER BY xuenian DESC, kecheng";
