基于JSP+Servlet的医院信息综合管理系统 - 源码深度解析

在医疗信息化快速发展的今天，传统医院内部信息流转依赖纸质文档或孤立系统所导致的效率低下、数据不一致及查询困难等问题日益凸显。针对这些核心痛点，一个基于JSP+Servlet技术栈的医院信息综合管理系统应运而生。该系统将患者档案、科室资源、药品库存及医护人员排班等关键业务模块集成于统一平台，通过集中化数据管理显著提升院内协同效率。

该系统严格遵循MVC设计模式进行架构设计。Servlet作为核心控制器，负责接收并解析前端请求，调度相应的业务逻辑；JSP页面承担视图层职责，负责数据渲染与展示；JavaBean则封装业务实体与数据处理逻辑，实现模型层的功能。这种分层架构确保了系统各组件之间的松耦合，为后续维护和扩展奠定了坚实基础。

在数据持久层，系统采用JDBC进行数据库连接，通过预编译语句有效防范SQL注入攻击，并利用连接池管理数据库资源以提升系统性能。前端界面结合JSTL标签库与EL表达式简化动态内容输出，同时使用JavaScript、HTML和CSS实现丰富的用户交互体验。

数据库设计深度解析

系统的数据模型设计包含14张核心数据表，以下是几个关键表的结构分析：

患者信息表（patient）的设计体现了医疗数据的完整性和安全性要求：

CREATE TABLE patient (
    patient_id INT PRIMARY KEY AUTO_INCREMENT,
    identity_card VARCHAR(18) UNIQUE NOT NULL,
    medical_card VARCHAR(20) UNIQUE,
    name VARCHAR(50) NOT NULL,
    gender ENUM('男','女') NOT NULL,
    birth_date DATE NOT NULL,
    phone VARCHAR(11),
    address VARCHAR(200),
    allergy_history TEXT,
    created_time DATETIME DEFAULT CURRENT_TIMESTAMP,
    updated_time DATETIME DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP
);

该表通过身份证号和医疗卡号的双重唯一约束确保患者身份的唯一性，包含完整的个人基本信息、过敏史等医疗关键数据，并采用时间戳自动记录数据创建和更新时间。

药品库存表（drug）的设计重点关注库存管理的精确性和事务安全性：

CREATE TABLE drug (
    drug_id INT PRIMARY KEY AUTO_INCREMENT,
    drug_code VARCHAR(20) UNIQUE NOT NULL,
    name VARCHAR(100) NOT NULL,
    specification VARCHAR(50),
    manufacturer VARCHAR(100),
    unit_price DECIMAL(10,2) NOT NULL,
    stock_quantity INT NOT NULL DEFAULT 0,
    min_stock_level INT NOT NULL DEFAULT 10,
    prescription_required BOOLEAN DEFAULT TRUE,
    status ENUM('可用','停用') DEFAULT '可用',
    last_restock_date DATE
);

该表通过药品编码唯一性约束确保药品标识的准确性，包含详细的药品规格、价格、库存数量等关键信息，并设置最低库存水平预警机制，为药品库存管理提供数据支持。

预约信息表（appointment）的设计解决了医疗资源调度复杂性问题：

CREATE TABLE appointment (
    appointment_id INT PRIMARY KEY AUTO_INCREMENT,
    patient_id INT NOT NULL,
    doctor_id INT NOT NULL,
    department_id INT NOT NULL,
    appointment_date DATE NOT NULL,
    time_slot ENUM('上午','下午','晚上') NOT NULL,
    status ENUM('待确认','已确认','已完成','已取消') DEFAULT '待确认',
    symptoms_description TEXT,
    created_time DATETIME DEFAULT CURRENT_TIMESTAMP,
    FOREIGN KEY (patient_id) REFERENCES patient(patient_id),
    FOREIGN KEY (doctor_id) REFERENCES doctor(doctor_id),
    FOREIGN KEY (department_id) REFERENCES department(department_id)
);

该表通过外键约束确保数据引用完整性，包含完整的预约时间、状态跟踪和症状描述等信息，为医患双方的预约管理提供全面支持。

核心功能实现深度解析

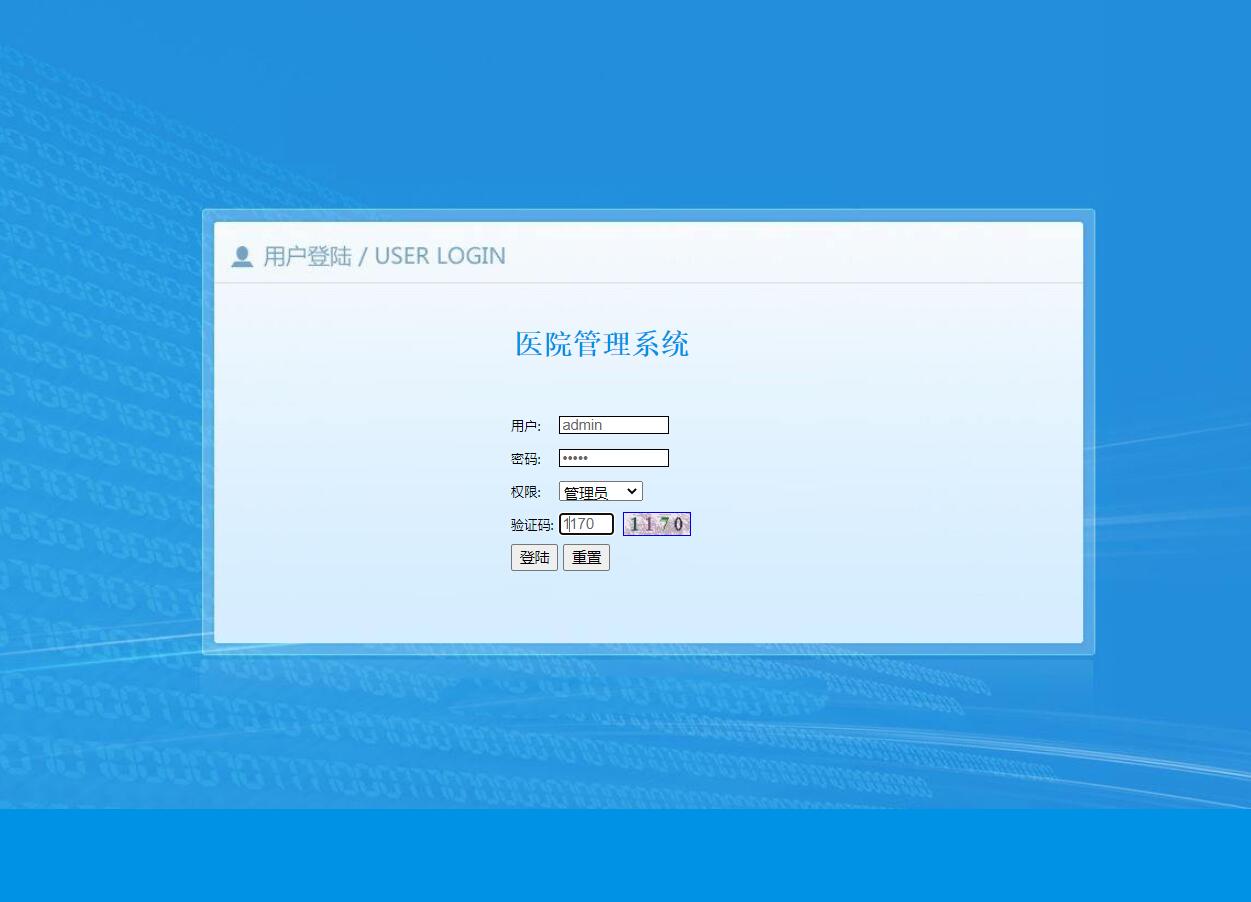

1. 用户身份认证与权限管理

系统采用基于角色的访问控制机制，不同角色（管理员、医生、患者）拥有不同的操作权限。登录验证过程通过Servlet控制器实现：

@WebServlet("/login")
public class LoginServlet extends HttpServlet {
    protected void doPost(HttpServletRequest request, HttpServletResponse response)
            throws ServletException, IOException {
        String username = request.getParameter("username");
        String password = request.getParameter("password");
        String role = request.getParameter("role");

        UserService userService = new UserService();
        User user = userService.authenticate(username, password, role);

        if (user != null) {
            HttpSession session = request.getSession();
            session.setAttribute("user", user);
            session.setAttribute("role", role);

            switch(role) {
                case "admin":
                    response.sendRedirect("admin/dashboard.jsp");
                    break;
                case "doctor":
                    response.sendRedirect("doctor/dashboard.jsp");
                    break;
                case "patient":
                    response.sendRedirect("patient/dashboard.jsp");
                    break;
            }
        } else {
            request.setAttribute("error", "用户名或密码错误");
            request.getRequestDispatcher("login.jsp").forward(request, response);
        }
    }
}

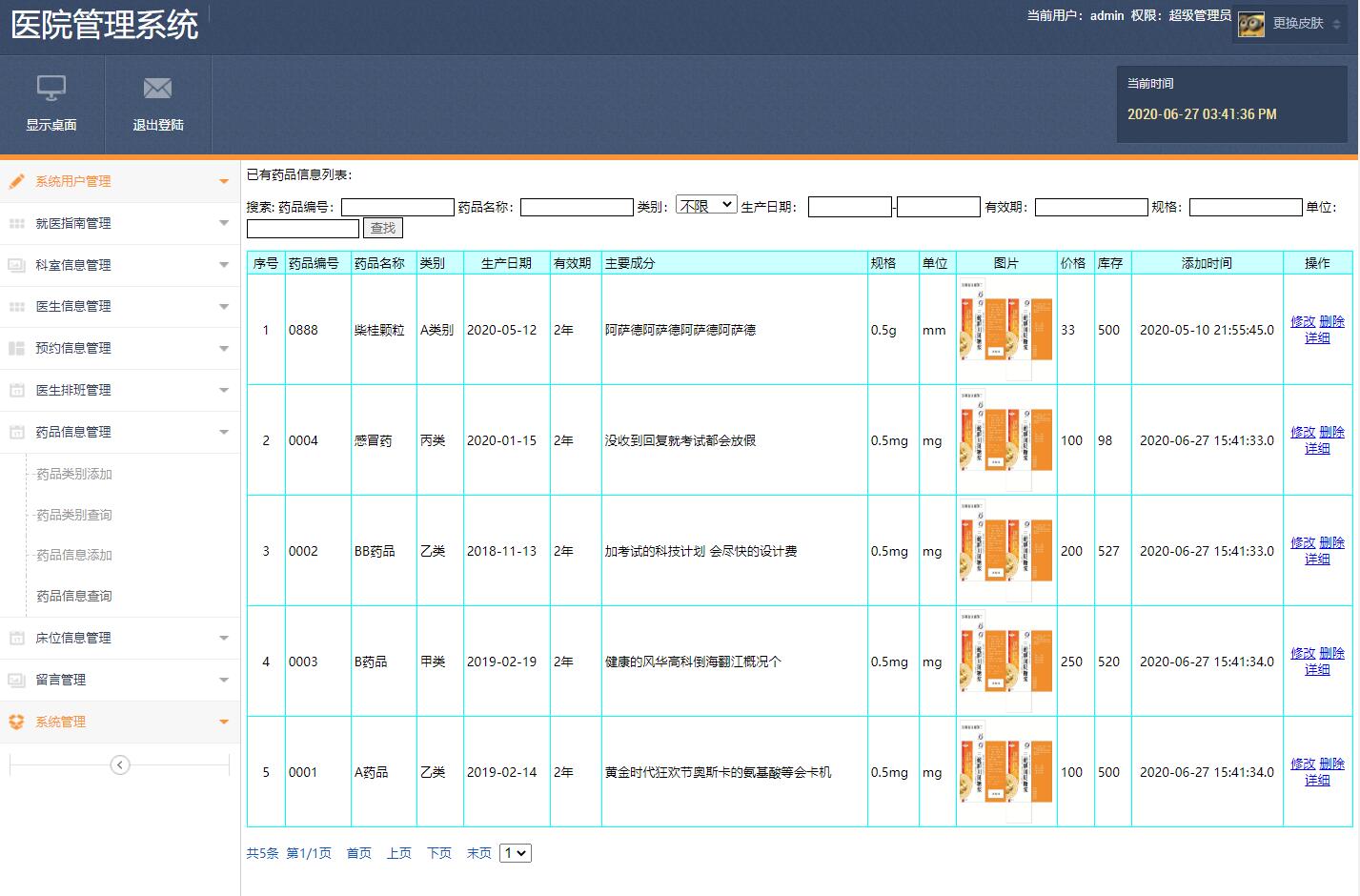

2. 药品库存管理模块

药品管理模块实现了库存的动态监控、预警和统计分析功能。核心业务逻辑通过药品服务类实现：

public class DrugService {
    public List<Drug> getLowStockDrugs() throws SQLException {
        String sql = "SELECT * FROM drug WHERE stock_quantity <= min_stock_level AND status = '可用'";
        List<Drug> lowStockDrugs = new ArrayList<>();

        try (Connection conn = DataSourceUtil.getConnection();
             PreparedStatement pstmt = conn.prepareStatement(sql);
             ResultSet rs = pstmt.executeQuery()) {

            while (rs.next()) {
                Drug drug = new Drug();
                drug.setDrugId(rs.getInt("drug_id"));
                drug.setName(rs.getString("name"));
                drug.setStockQuantity(rs.getInt("stock_quantity"));
                drug.setMinStockLevel(rs.getInt("min_stock_level"));
                lowStockDrugs.add(drug);
            }
        }
        return lowStockDrugs;
    }

    public boolean updateStock(int drugId, int quantity) throws SQLException {
        String sql = "UPDATE drug SET stock_quantity = stock_quantity + ? WHERE drug_id = ?";

        try (Connection conn = DataSourceUtil.getConnection();
             PreparedStatement pstmt = conn.prepareStatement(sql)) {

            pstmt.setInt(1, quantity);
            pstmt.setInt(2, drugId);

            return pstmt.executeUpdate() > 0;
        }
    }
}

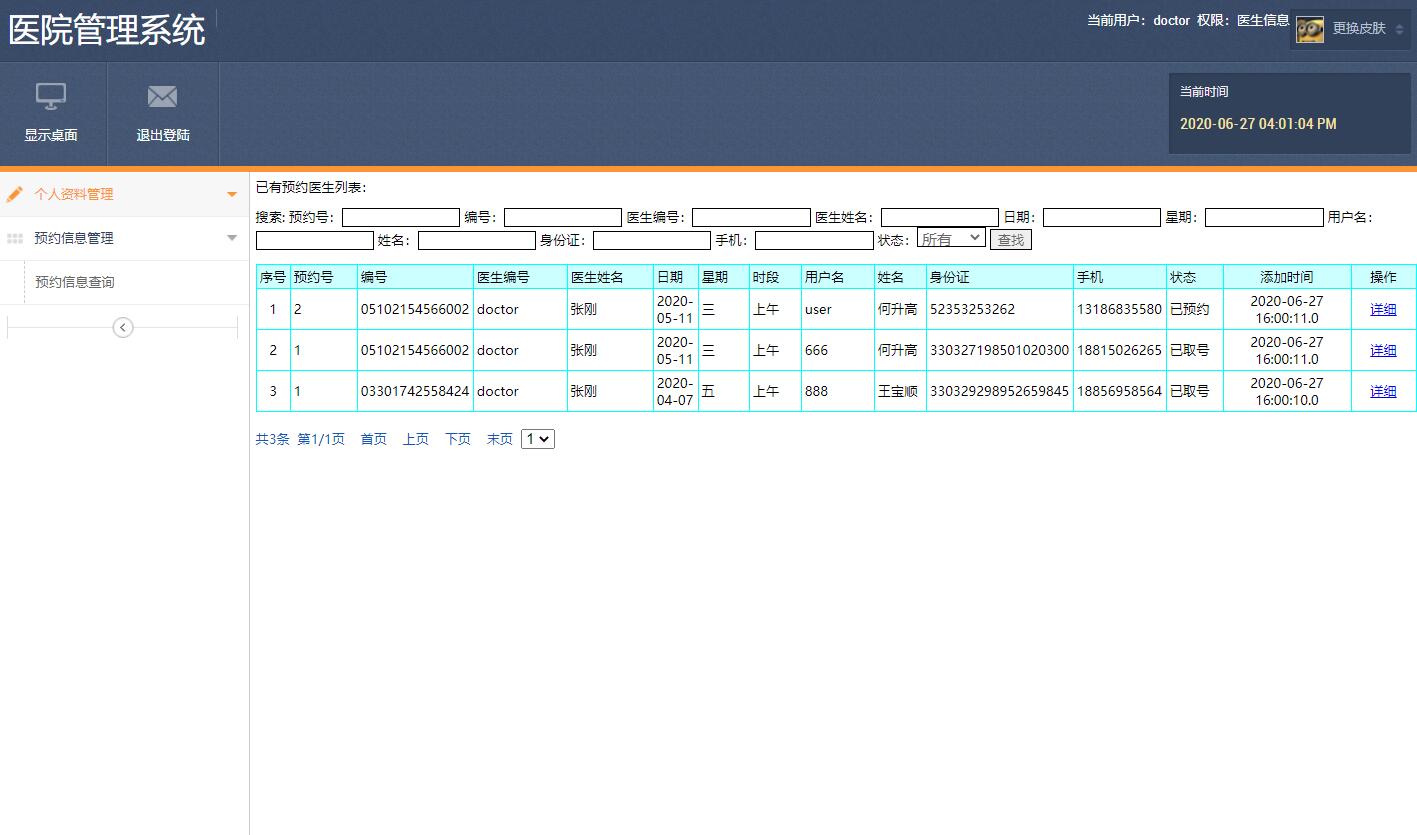

3. 智能预约调度系统

预约模块通过复杂的业务逻辑确保医疗资源的合理分配，避免时间冲突和资源浪费：

public class AppointmentService {
    public boolean checkAvailability(int doctorId, Date appointmentDate, String timeSlot)
            throws SQLException {
        String sql = "SELECT COUNT(*) FROM appointment WHERE doctor_id = ? " +
                    "AND appointment_date = ? AND time_slot = ? AND status IN ('待确认','已确认')";

        try (Connection conn = DataSourceUtil.getConnection();
             PreparedStatement pstmt = conn.prepareStatement(sql)) {

            pstmt.setInt(1, doctorId);
            pstmt.setDate(2, new java.sql.Date(appointmentDate.getTime()));
            pstmt.setString(3, timeSlot);

            ResultSet rs = pstmt.executeQuery();
            if (rs.next()) {
                return rs.getInt(1) < 3; // 每个时段最多3个预约
            }
        }
        return false;
    }

    public boolean createAppointment(Appointment appointment) throws SQLException {
        if (!checkAvailability(appointment.getDoctorId(),
                appointment.getAppointmentDate(), appointment.getTimeSlot())) {
            return false;
        }

        String sql = "INSERT INTO appointment (patient_id, doctor_id, department_id, " +
                    "appointment_date, time_slot, symptoms_description) VALUES (?, ?, ?, ?, ?, ?)";

        try (Connection conn = DataSourceUtil.getConnection();
             PreparedStatement pstmt = conn.prepareStatement(sql)) {

            pstmt.setInt(1, appointment.getPatientId());
            pstmt.setInt(2, appointment.getDoctorId());
            pstmt.setInt(3, appointment.getDepartmentId());
            pstmt.setDate(4, new java.sql.Date(appointment.getAppointmentDate().getTime()));
            pstmt.setString(5, appointment.getTimeSlot());
            pstmt.setString(6, appointment.getSymptomsDescription());

            return pstmt.executeUpdate() > 0;
        }
    }
}

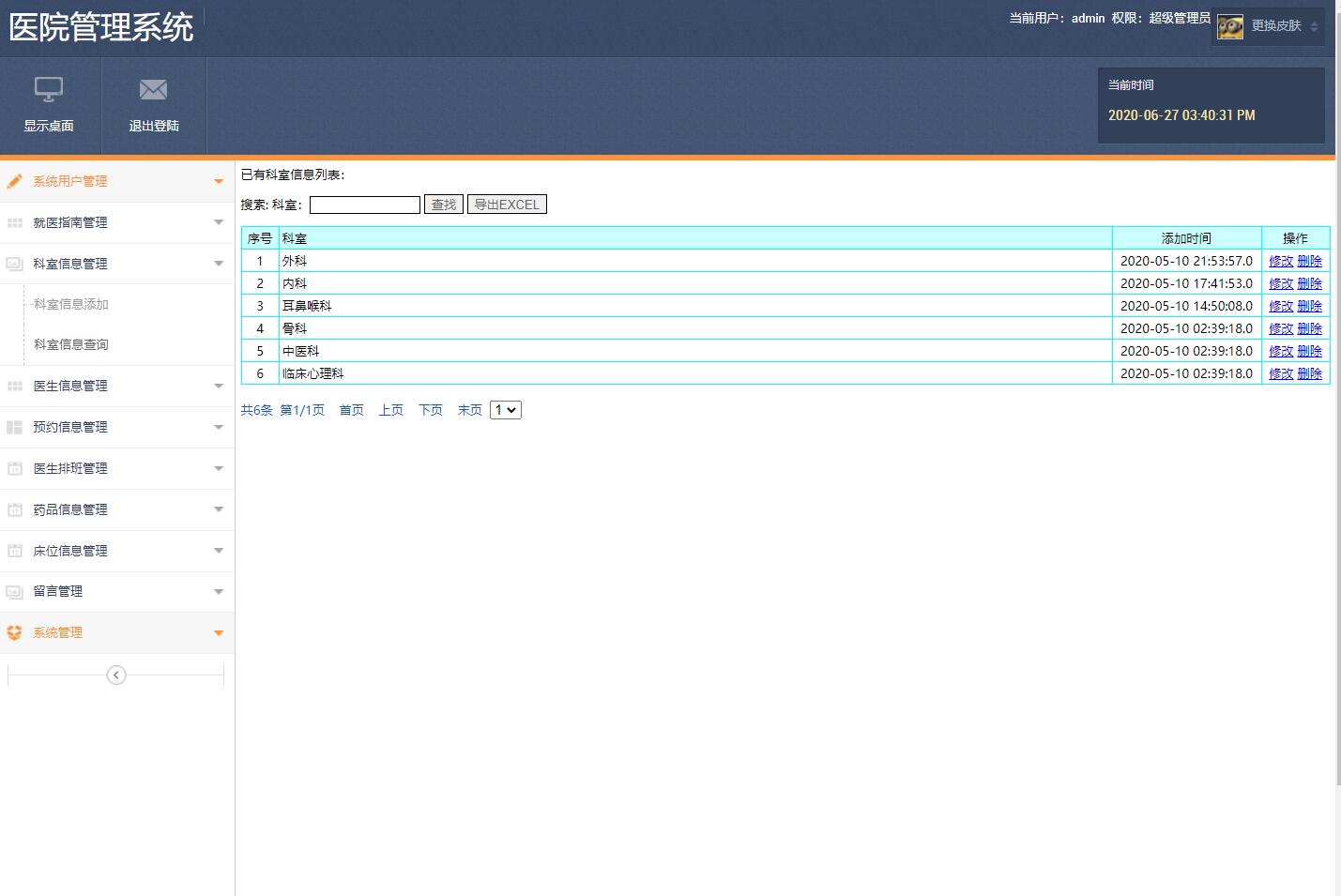

4. 科室资源管理

科室管理模块实现了医院各部门资源的统一调配和监控：

public class DepartmentService {
    public Department getDepartmentWithResources(int departmentId) throws SQLException {
        String sql = "SELECT d.*, COUNT(DISTINCT doc.doctor_id) as doctor_count, " +
                    "COUNT(DISTINCT b.bed_id) as bed_count, " +
                    "SUM(CASE WHEN b.status = '空闲' THEN 1 ELSE 0 END) as available_beds " +
                    "FROM department d " +
                    "LEFT JOIN doctor doc ON d.department_id = doc.department_id " +
                    "LEFT JOIN bed b ON d.department_id = b.department_id " +
                    "WHERE d.department_id = ? GROUP BY d.department_id";

        try (Connection conn = DataSourceUtil.getConnection();
             PreparedStatement pstmt = conn.prepareStatement(sql)) {

            pstmt.setInt(1, departmentId);
            ResultSet rs = pstmt.executeQuery();

            if (rs.next()) {
                Department dept = new Department();
                dept.setDepartmentId(rs.getInt("department_id"));
                dept.setName(rs.getString("name"));
                dept.setDescription(rs.getString("description"));
                dept.setDoctorCount(rs.getInt("doctor_count"));
                dept.setBedCount(rs.getInt("bed_count"));
                dept.setAvailableBeds(rs.getInt("available_beds"));
                return dept;
            }
        }
        return null;
    }
}

实体模型设计

系统的实体模型采用面向对象的设计原则，每个核心业务对象都对应一个JavaBean类：

public class Patient {
    private int patientId;
    private String identityCard;
    private String medicalCard;
    private String name;
    private String gender;
    private Date birthDate;
    private String phone;
    private String address;
    private String allergyHistory;
    private Date createdTime;
    private Date updatedTime;

    // 构造函数、getter和setter方法
    public Patient() {}

    public int getPatientId() { return patientId; }
    public void setPatientId(int patientId) { this.patientId = patientId; }

    // 其他getter和setter方法...
}

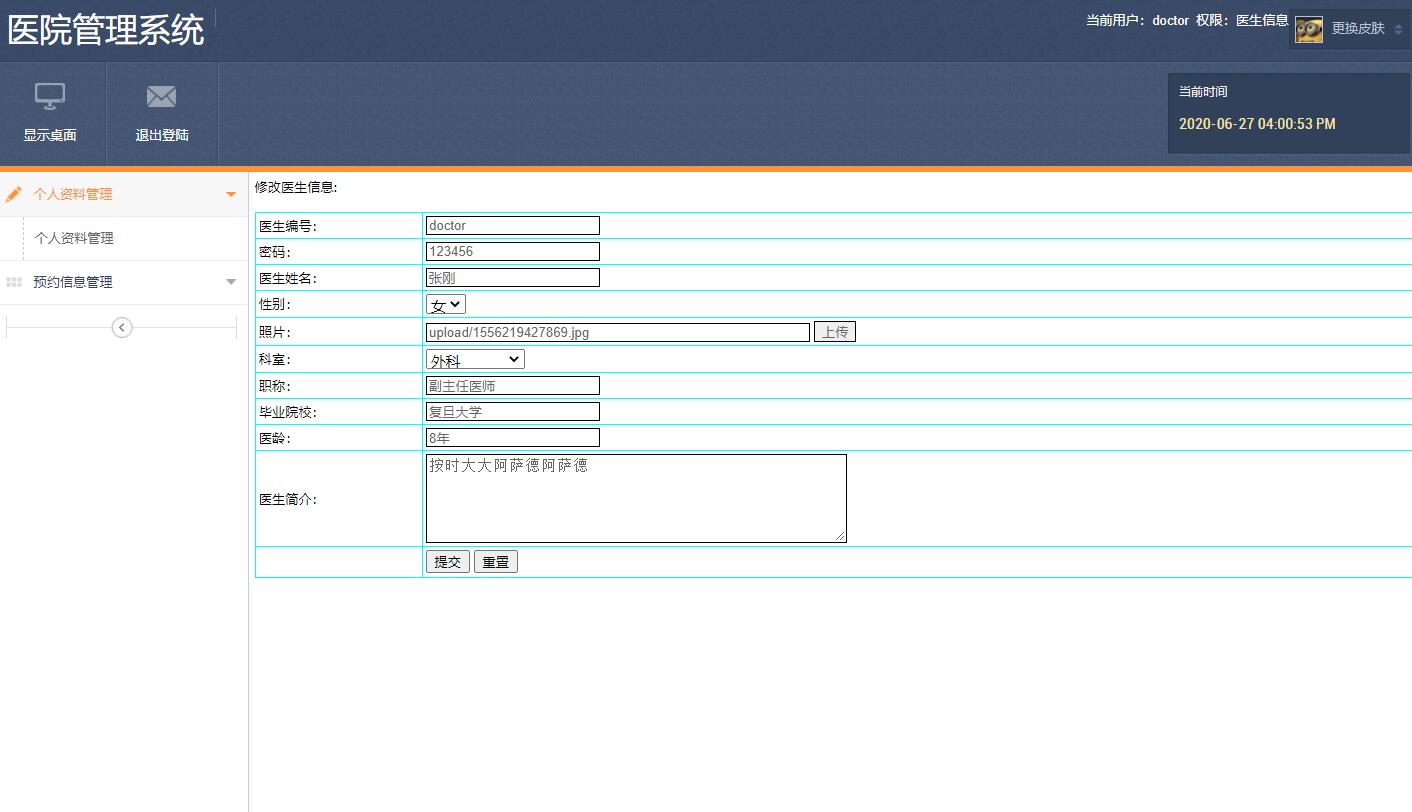

医生实体类包含详细的专业信息和状态管理：

public class Doctor {
    private int doctorId;
    private String employeeId;
    private String name;
    private String gender;
    private String title;
    private int departmentId;
    private String specialty;
    private String phone;
    private String email;
    private String status;
    private Date joinDate;

    public boolean isAvailable() {
        return "在职".equals(status);
    }

    public String getFullTitle() {
        return title + " - " + specialty;
    }

    // 标准getter和setter方法
}

数据库连接池优化

系统采用数据库连接池技术提升性能，通过配置化的方式管理数据库连接：

public class DataSourceUtil {
    private static DataSource dataSource;

    static {
        try {
            Context initContext = new InitialContext();
            Context envContext = (Context) initContext.lookup("java:/comp/env");
            dataSource = (DataSource) envContext.lookup("jdbc/hospitalDB");
        } catch (NamingException e) {
            throw new RuntimeException("数据库连接池初始化失败", e);
        }
    }

    public static Connection getConnection() throws SQLException {
        return dataSource.getConnection();
    }
}

前端界面交互优化

JSP页面通过EL表达式和JSTL标签库实现数据的动态展示：

<%@ page contentType="text/html;charset=UTF-8" language="java" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<html>
<head>
    <title>医生工作台</title>
</head>
<body>
    <div class="appointment-list">
        <h3>今日预约列表</h3>
        <table>
            <tr>
                <th>患者姓名</th>
                <th>预约时间</th>
                <th>症状描述</th>
                <th>操作</th>
            </tr>
            <c:forEach var="appointment" items="${appointments}">
                <tr>
                    <td>${appointment.patientName}</td>
                    <td>${appointment.appointmentDate} ${appointment.timeSlot}</td>
                    <td>${appointment.symptomsDescription}</td>
                    <td>
                        <c:if test="${appointment.status == '待确认'}">
                            <button onclick="confirmAppointment(${appointment.appointmentId})">确认</button>
                        </c:if>
                    </td>
                </tr>
            </c:forEach>
        </table>
    </div>

    <script>
    function confirmAppointment(appointmentId) {
        fetch('/hospital/confirmAppointment', {
            method: 'POST',
            headers: {'Content-Type': 'application/x-www-form-urlencoded'},
            body: 'appointmentId=' + appointmentId
        }).then(response => {
            if (response.ok) {
                location.reload();
            }
        });
    }
    </script>
</body>
</html>

系统性能优化策略

1. 数据库查询优化：通过合理的索引设计和查询优化提升数据检索效率
2. 缓存机制：对频繁访问的静态数据实施缓存策略
3. 连接池管理：优化数据库连接的生命周期管理
4. 前端资源压缩：对CSS、JavaScript等静态资源进行压缩和合并

功能展望与优化方向

1. 移动端适配：开发响应式Web界面或独立的移动应用程序，方便医护人员随时处理工作事务。可采用React Native或Flutter框架实现跨平台移动应用开发。

2. 数据统计分析模块：集成BI工具实现医疗数据的多维度分析，为医院管理决策提供数据支持。通过ECharts等可视化库展示医疗质量指标、资源利用率等关键指标。

3. 智能排班优化：引入算法优化医护人员排班，考虑医生专业特长、工作负荷均衡等因素，实现自动化智能排班。

4. 医疗知识图谱：构建疾病-症状-药品-治疗方案之间的关联关系，为临床决策提供智能辅助支持。

5. 物联网设备集成：对接医疗监护设备，实现患者生命体征数据的自动采集和异常预警，提升医疗服务的及时性和准确性。

该系统通过严谨的技术架构设计和深入的业务逻辑实现，为中小型医疗机构提供了全面的信息化解决方案。模块化的设计使得系统具备良好的扩展性和维护性，能够适应医疗机构不断变化的需求。基于角色权限的访问控制确保了数据安全性，而优化的数据库设计和缓存策略则保障了系统在高并发场景下的稳定运行。
