在当今数字化人才招聘市场，一个高效、稳定的信息管理平台对企业人力资源管理和个人求职过程具有重要价值。该系统采用经典的JSP+Servlet技术架构，结合MySQL数据库，实现了招聘求职全流程的线上化管理。
系统架构与技术栈
平台采用MVC设计模式，Servlet作为控制器层处理业务逻辑，JSP负责视图展示，JavaBean封装数据模型。前端使用HTML、CSS和JavaScript构建用户界面，后端通过JDBC连接数据库。这种分层架构确保了代码的可维护性和系统的可扩展性。
数据库连接配置通过DBUtil类实现：
public class DBUtil {
private static final String URL = "jdbc:mysql://localhost:3306/recruitment";
private static final String USER = "root";
private static final String PASSWORD = "password";
public static Connection getConnection() throws SQLException {
return DriverManager.getConnection(URL, USER, PASSWORD);
}
}
数据库设计亮点
系统包含11张核心数据表，设计体现了完整的事务处理能力和数据一致性保障。
用户信息表设计
用户表采用多态设计，通过user_type字段区分求职者、企业和管理员三种角色：
CREATE TABLE users (
id INT PRIMARY KEY AUTO_INCREMENT,
username VARCHAR(50) UNIQUE NOT NULL,
password VARCHAR(100) NOT NULL,
user_type ENUM('jobseeker', 'enterprise', 'admin') NOT NULL,
email VARCHAR(100) UNIQUE NOT NULL,
phone VARCHAR(20),
status ENUM('active', 'inactive') DEFAULT 'active',
created_time DATETIME DEFAULT CURRENT_TIMESTAMP,
last_login_time DATETIME
);
职位信息表设计
职位表通过外键关联实现数据完整性约束，支持复杂的查询条件：
CREATE TABLE jobs (
id INT PRIMARY KEY AUTO_INCREMENT,
enterprise_id INT NOT NULL,
title VARCHAR(200) NOT NULL,
description TEXT,
requirements TEXT,
salary_range VARCHAR(100),
work_location VARCHAR(100),
category VARCHAR(50),
publish_status ENUM('draft', 'published', 'closed') DEFAULT 'draft',
view_count INT DEFAULT 0,
application_count INT DEFAULT 0,
created_time DATETIME DEFAULT CURRENT_TIMESTAMP,
updated_time DATETIME DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
FOREIGN KEY (enterprise_id) REFERENCES enterprises(id) ON DELETE CASCADE
);
简历投递记录表
投递记录表设计支持状态跟踪和统计分析：
CREATE TABLE applications (
id INT PRIMARY KEY AUTO_INCREMENT,
job_id INT NOT NULL,
jobseeker_id INT NOT NULL,
resume_id INT NOT NULL,
status ENUM('pending', 'reviewed', 'accepted', 'rejected') DEFAULT 'pending',
application_time DATETIME DEFAULT CURRENT_TIMESTAMP,
review_time DATETIME,
reviewer_notes TEXT,
FOREIGN KEY (job_id) REFERENCES jobs(id) ON DELETE CASCADE,
FOREIGN KEY (jobseeker_id) REFERENCES jobseekers(id) ON DELETE CASCADE,
FOREIGN KEY (resume_id) REFERENCES resumes(id) ON DELETE CASCADE
);
核心功能实现

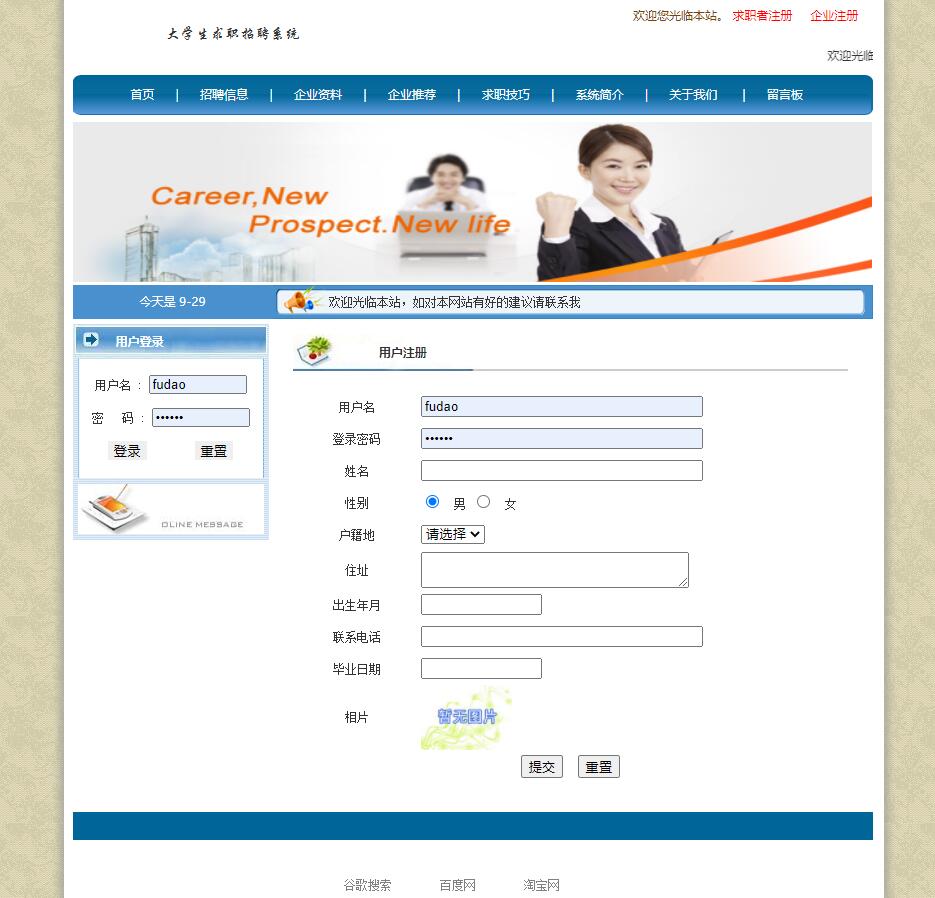

用户认证与权限管理
系统通过Session机制管理用户登录状态，不同角色具有不同的操作权限。登录Servlet处理用户认证：
@WebServlet("/login")
public class LoginServlet extends HttpServlet {
protected void doPost(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
String username = request.getParameter("username");
String password = request.getParameter("password");
String userType = request.getParameter("userType");
UserService userService = new UserService();
User user = userService.authenticate(username, password, userType);
if (user != null) {
HttpSession session = request.getSession();
session.setAttribute("currentUser", user);
session.setAttribute("userType", userType);
switch (userType) {
case "jobseeker":
response.sendRedirect("jobseeker/home.jsp");
break;
case "enterprise":
response.sendRedirect("enterprise/dashboard.jsp");
break;
case "admin":
response.sendRedirect("admin/management.jsp");
break;
}
} else {
request.setAttribute("errorMessage", "用户名或密码错误");
request.getRequestDispatcher("login.jsp").forward(request, response);
}
}
}

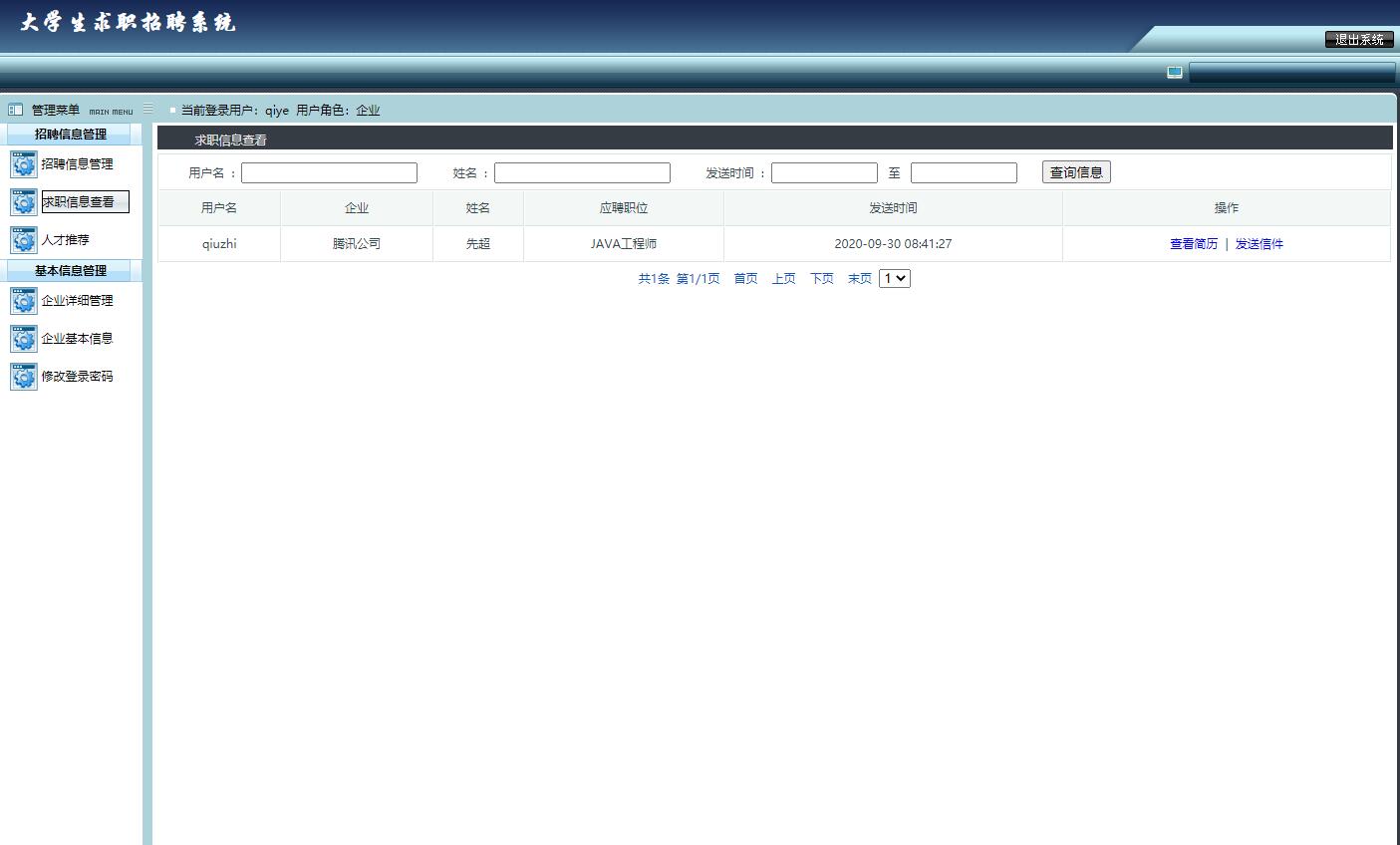

职位发布与管理
企业用户可以通过直观的界面发布和管理招聘职位，系统提供丰富的职位信息字段：
public class JobService {
public boolean publishJob(Job job) {
String sql = "INSERT INTO jobs (enterprise_id, title, description, requirements, " +
"salary_range, work_location, category, publish_status) " +
"VALUES (?, ?, ?, ?, ?, ?, ?, 'published')";
try (Connection conn = DBUtil.getConnection();
PreparedStatement pstmt = conn.prepareStatement(sql)) {
pstmt.setInt(1, job.getEnterpriseId());
pstmt.setString(2, job.getTitle());
pstmt.setString(3, job.getDescription());
pstmt.setString(4, job.getRequirements());
pstmt.setString(5, job.getSalaryRange());
pstmt.setString(6, job.getWorkLocation());
pstmt.setString(7, job.getCategory());
return pstmt.executeUpdate() > 0;
} catch (SQLException e) {
e.printStackTrace();
return false;
}
}
public List<Job> searchJobs(String keyword, String category, String location) {
List<Job> jobs = new ArrayList<>();
StringBuilder sql = new StringBuilder(
"SELECT * FROM jobs WHERE publish_status = 'published'");
List<Object> params = new ArrayList<>();
if (keyword != null && !keyword.trim().isEmpty()) {
sql.append(" AND (title LIKE ? OR description LIKE ?)");
params.add("%" + keyword + "%");
params.add("%" + keyword + "%");
}
if (category != null && !category.trim().isEmpty()) {
sql.append(" AND category = ?");
params.add(category);
}
if (location != null && !location.trim().isEmpty()) {
sql.append(" AND work_location = ?");
params.add(location);
}
sql.append(" ORDER BY created_time DESC");
// 执行查询...
return jobs;
}
}

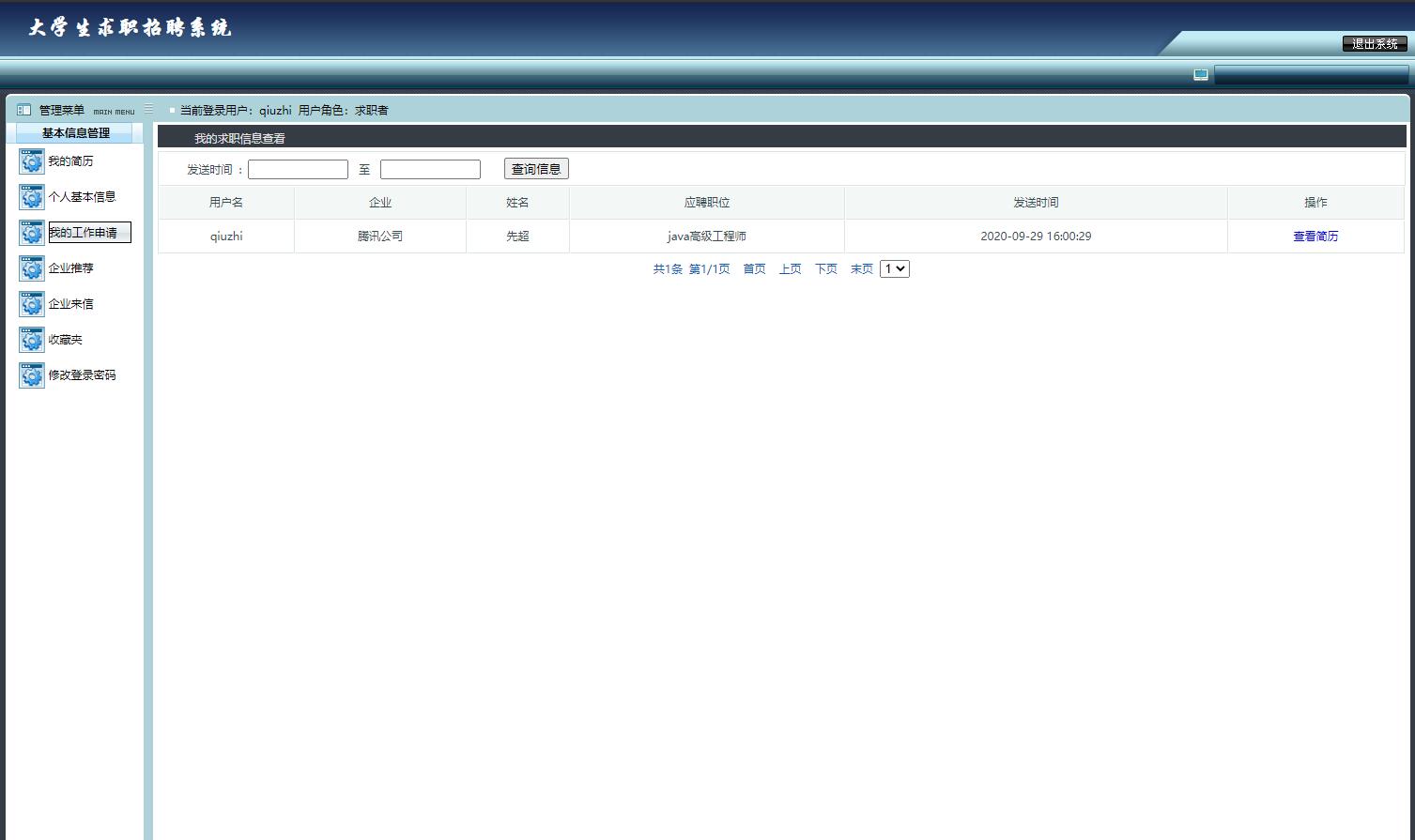

简历投递与追踪
求职者可以浏览职位并投递简历，系统实时跟踪申请状态：
<%@ page import="com.recruitment.model.Job, com.recruitment.service.JobService" %>
<%
JobService jobService = new JobService();
List<Job> jobList = jobService.getPublishedJobs();
%>
<div class="job-list">
<% for(Job job : jobList) { %>
<div class="job-item">
<h3><%= job.getTitle() %></h3>
<p class="company"><%= job.getEnterprise().getName() %></p>
<p class="salary">薪资：<%= job.getSalaryRange() %></p>
<p class="location">工作地点：<%= job.getWorkLocation() %></p>
<div class="actions">
<a href="job_detail.jsp?id=<%= job.getId() %>" class="btn-view">查看详情</a>
<a href="apply_job.jsp?jobId=<%= job.getId() %>" class="btn-apply">立即申请</a>
</div>
</div>
<% } %>
</div>
申请处理的Servlet实现：
@WebServlet("/applyJob")
public class ApplyJobServlet extends HttpServlet {
protected void doPost(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
HttpSession session = request.getSession();
Jobseeker jobseeker = (Jobseeker) session.getAttribute("currentUser");
if (jobseeker == null) {
response.sendRedirect("login.jsp");
return;
}
int jobId = Integer.parseInt(request.getParameter("jobId"));
int resumeId = Integer.parseInt(request.getParameter("resumeId"));
ApplicationService appService = new ApplicationService();
boolean success = appService.submitApplication(jobId, jobseeker.getId(), resumeId);
if (success) {
request.setAttribute("message", "简历投递成功！");
} else {
request.setAttribute("error", "投递失败，请重试");
}
request.getRequestDispatcher("application_result.jsp").forward(request, response);
}
}

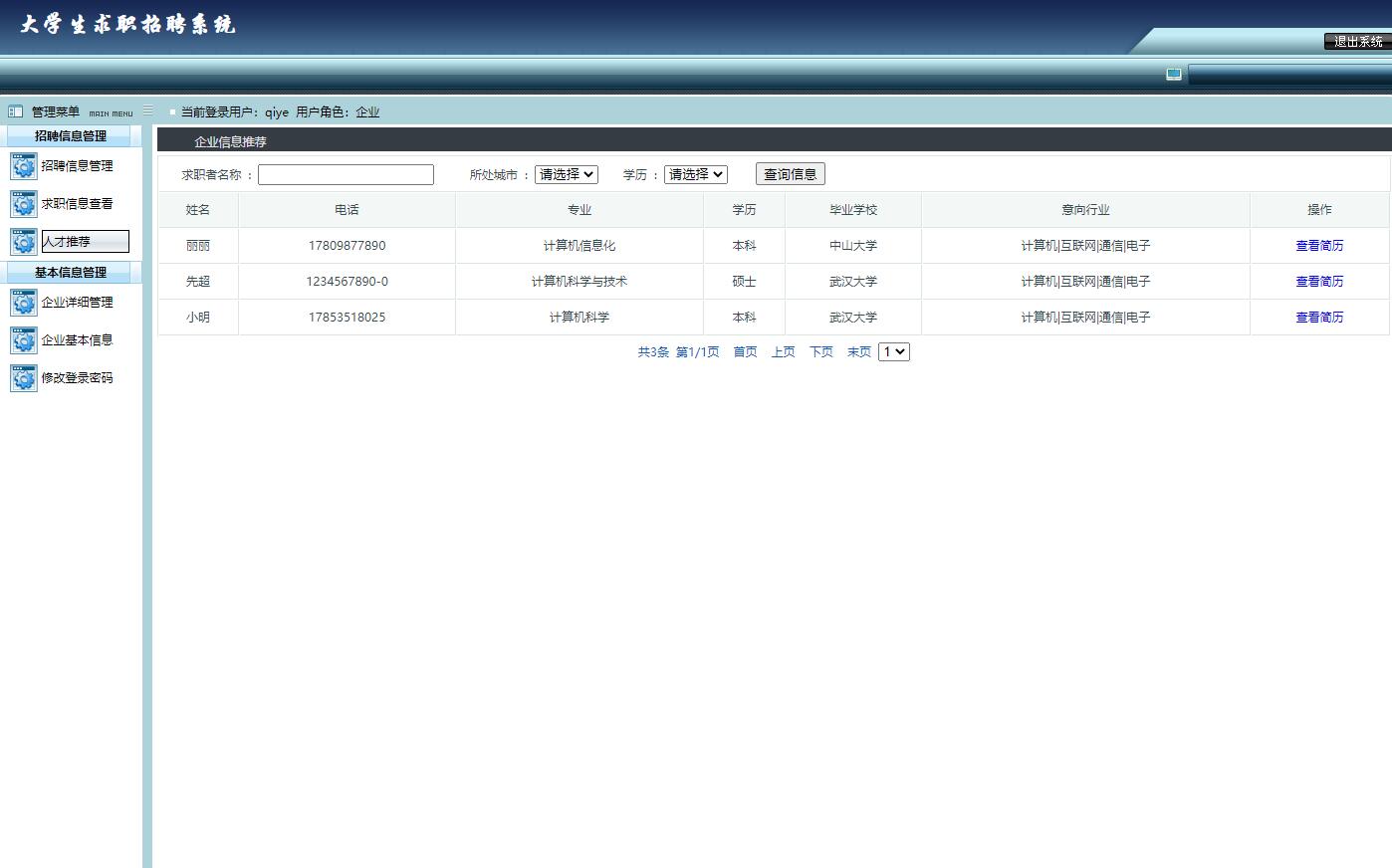

人才推荐功能
系统基于求职者的技能偏好和职位匹配度提供智能推荐：
public class RecommendationService {
public List<Job> recommendJobsForJobseeker(int jobseekerId) {
String sql = "SELECT j.*, COUNT(*) as match_score " +
"FROM jobs j " +
"JOIN jobseeker_skills js ON j.required_skills LIKE CONCAT('%', js.skill_name, '%') " +
"WHERE js.jobseeker_id = ? AND j.publish_status = 'published' " +
"GROUP BY j.id " +
"ORDER BY match_score DESC, j.created_time DESC " +
"LIMIT 10";
List<Job> recommendedJobs = new ArrayList<>();
// 执行推荐算法...
return recommendedJobs;
}
}

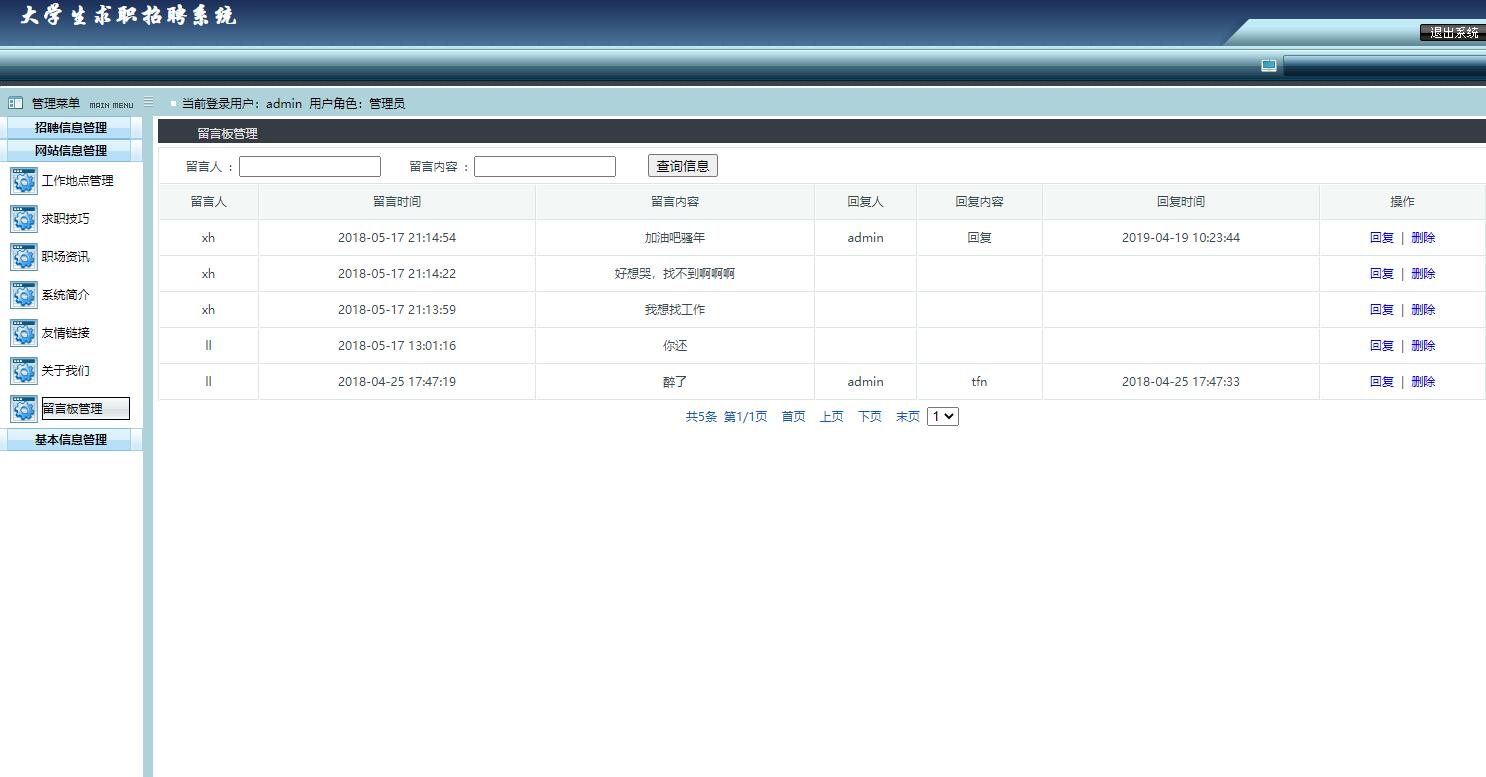

站内消息系统
平台内置完整的消息通信机制，支持用户间的实时沟通：
public class MessageService {
public boolean sendMessage(int senderId, String senderType,
int receiverId, String receiverType,
String title, String content) {
String sql = "INSERT INTO messages (sender_id, sender_type, receiver_id, " +
"receiver_type, title, content, send_time) " +
"VALUES (?, ?, ?, ?, ?, ?, NOW())";
try (Connection conn = DBUtil.getConnection();
PreparedStatement pstmt = conn.prepareStatement(sql)) {
pstmt.setInt(1, senderId);
pstmt.setString(2, senderType);
pstmt.setInt(3, receiverId);
pstmt.setString(4, receiverType);
pstmt.setString(5, title);
pstmt.setString(6, content);
return pstmt.executeUpdate() > 0;
} catch (SQLException e) {
e.printStackTrace();
return false;
}
}
}
实体模型设计
系统的核心实体模型采用面向对象设计，每个实体类都封装了相应的业务逻辑：
public class Job {
private int id;
private int enterpriseId;
private String title;
private String description;
private String requirements;
private String salaryRange;
private String workLocation;
private String category;
private String publishStatus;
private int viewCount;
private int applicationCount;
private Date createdTime;
private Date updatedTime;
// 构造函数、getter和setter方法
public Job() {}
public Job(int enterpriseId, String title, String description,
String requirements, String salaryRange, String workLocation,
String category) {
this.enterpriseId = enterpriseId;
this.title = title;
this.description = description;
this.requirements = requirements;
this.salaryRange = salaryRange;
this.workLocation = workLocation;
this.category = category;
this.publishStatus = "draft";
this.viewCount = 0;
this.applicationCount = 0;
this.createdTime = new Date();
this.updatedTime = new Date();
}
// 业务方法
public boolean isPublished() {
return "published".equals(publishStatus);
}
public void incrementViewCount() {
this.viewCount++;
this.updatedTime = new Date();
}
}
用户实体采用继承体系设计，支持多态行为：
public abstract class User {
protected int id;
protected String username;
protected String password;
protected String email;
protected String phone;
protected String status;
protected Date createdTime;
protected Date lastLoginTime;
public abstract String getUserType();
public abstract boolean hasPermission(String permission);
}
public class Jobseeker extends User {
private String fullName;
private int age;
private String gender;
private String education;
private String workExperience;
private String expectedSalary;
private String preferredLocation;
@Override
public String getUserType() {
return "jobseeker";
}
@Override
public boolean hasPermission(String permission) {
Set<String> permissions = Set.of("view_jobs", "apply_jobs", "manage_resume");
return permissions.contains(permission);
}
}
数据访问层优化
系统采用DAO模式实现数据持久化，提供统一的数据访问接口：
public interface JobDAO {
List<Job> findAll();
List<Job> findByEnterprise(int enterpriseId);
List<Job> searchByCriteria(JobSearchCriteria criteria);
Job findById(int id);
boolean save(Job job);
boolean update(Job job);
boolean delete(int id);
boolean incrementViewCount(int jobId);
}
public class JobDAOImpl implements JobDAO {
@Override
public List<Job> searchByCriteria(JobSearchCriteria criteria) {
List<Job> jobs = new ArrayList<>();
StringBuilder sql = new StringBuilder("SELECT * FROM jobs WHERE 1=1");
List<Object> params = new ArrayList<>();
if (criteria.getKeyword() != null) {
sql.append(" AND (title LIKE ? OR description LIKE ?)");
params.add("%" + criteria.getKeyword() + "%");
params.add("%" + criteria.getKeyword() + "%");
}
if (criteria.getCategory() != null) {
sql.append(" AND category = ?");
params.add(criteria.getCategory());
}
if (criteria.getLocation() != null) {
sql.append(" AND work_location = ?");
params.add(criteria.getLocation());
}
sql.append(" AND publish_status = 'published'");
sql.append(" ORDER BY created_time DESC");
try (Connection conn = DBUtil.getConnection();
PreparedStatement pstmt = conn.prepareStatement(sql.toString())) {
for (int i = 0; i < params.size(); i++) {
pstmt.setObject(i + 1, params.get(i));
}
ResultSet rs = pstmt.executeQuery();
while (rs.next()) {
jobs.add(extractJobFromResultSet(rs));
}
} catch (SQLException e) {
e.printStackTrace();
}
return jobs;
}
private Job extractJobFromResultSet(ResultSet rs) throws SQLException {
Job job = new Job();
job.setId(rs.getInt("id"));
job.setEnterpriseId(rs.getInt("enterprise_id"));
job.setTitle(rs.getString("title"));
job.setDescription(rs.getString("description"));
job.setRequirements(rs.getString("requirements"));
job.setSalaryRange(rs.getString("salary_range"));
job.setWorkLocation(rs.getString("work_location"));
job.setCategory(rs.getString("category"));
job.setPublishStatus(rs.getString("publish_status"));
job.setViewCount(rs.getInt("view_count"));
job.setApplicationCount(rs.getInt("application_count"));
job.setCreatedTime(rs.getTimestamp("created_time"));
job.setUpdatedTime(rs.getTimestamp("updated_time"));
return job;
}
}
功能展望与优化方向
1. 智能匹配算法优化
当前系统基于关键词匹配进行职位推荐，未来可以引入机器学习算法，通过分析用户行为数据、技能图谱和职位要求，实现更精准的人岗匹配。可以采用协同过滤算法和内容-based推荐相结合的方式。
实现思路：收集用户点击、投递、收藏等行为数据，构建用户偏好模型，使用Apache Mahout或TensorFlow实现推荐算法。
2. 实时通信功能增强
增加在线聊天功能，支持求职者与企业HR的实时沟通。可以集成WebSocket技术实现即时消息传递，提升用户体验。
实现思路：使用Java WebSocket API或集成Spring WebSocket，建立长连接通信机制，支持文本、文件等多种消息类型。
3. 移动端适配与响应式设计
当前系统主要面向桌面端，未来需要加强移动端适配。采用响应式设计框架，确保在不同设备上都有良好的用户体验。
实现思路：使用Bootstrap或Foundation等响应式框架重构前端界面，采用移动优先的设计原则。
4. 数据分析与报表功能
增加数据可视化仪表盘，为企业和管理员提供招聘效果分析、人才市场趋势等数据洞察。
实现思路：集成ECharts或D3.js等可视化库，构建数据分析模块，提供多维度统计报表。
5. 第三方服务集成
集成第三方身份验证、电子签名、视频面试等服务，打造完整的招聘生态链。
实现思路：通过OAuth2.0协议集成第三方登录，使用API网关统一管理外部服务调用。
该系统通过严谨的架构设计和完整的功能实现，为招聘求职市场提供了可靠的信息化管理解决方案。其模块化设计和清晰的代码结构为后续功能扩展奠定了良好基础。
