在医疗信息化高速发展的今天，专业化、精细化的信息管理系统已成为提升医疗机构运营效率与服务质量的基石。针对私人牙科诊所的业务特点，一套整合了患者管理、病历记录、预约挂号及内部运营功能的综合性平台应运而生。该系统采用成熟的J2EE技术体系构建，通过模块化设计实现了诊所日常工作的全面数字化管理。
系统采用经典的三层架构模式，清晰地将数据访问、业务逻辑和用户界面分离。表现层由JSP动态页面构成，负责渲染用户界面并收集用户输入；控制层由Servlet实现，作为系统的中枢神经，负责请求转发、参数处理和业务逻辑调度；模型层则封装了核心的业务实体与数据访问逻辑，通过JavaBean与MySQL数据库进行高效交互。整个系统运行于Tomcat应用服务器之上，确保了高并发环境下的稳定性和可扩展性。
数据库架构设计与核心表分析
系统的数据持久化层设计充分考虑了牙科诊所业务的复杂性和数据完整性要求。数据库共包含10张核心表，通过主外键关系构成了一个结构严谨、关联清晰的数据模型。
患者信息表（patients）的设计体现了对个人隐私和医疗信息的精细化管理：
CREATE TABLE patients (
patient_id INT AUTO_INCREMENT PRIMARY KEY,
id_card VARCHAR(18) UNIQUE NOT NULL COMMENT '身份证号',
name VARCHAR(50) NOT NULL COMMENT '患者姓名',
gender ENUM('男','女') NOT NULL COMMENT '性别',
birth_date DATE NOT NULL COMMENT '出生日期',
phone VARCHAR(11) NOT NULL COMMENT '手机号码',
address VARCHAR(200) COMMENT '联系地址',
allergy_history TEXT COMMENT '过敏史',
created_time DATETIME DEFAULT CURRENT_TIMESTAMP,
updated_time DATETIME ON UPDATE CURRENT_TIMESTAMP
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='患者基本信息表';
该表设计具有多个技术亮点：使用AUTO_INCREMENT确保主键唯一性；身份证字段设置唯一约束防止重复登记；性别字段采用枚举类型保证数据规范性；created_time和updated_time时间戳字段自动记录数据操作轨迹，便于审计追踪。
就诊记录表（medical_records）的设计则重点关注了医疗数据的完整性和关联性：
CREATE TABLE medical_records (
record_id INT AUTO_INCREMENT PRIMARY KEY,
patient_id INT NOT NULL COMMENT '患者ID',
dentist_id INT NOT NULL COMMENT '主治医生ID',
visit_date DATETIME NOT NULL COMMENT '就诊时间',
chief_complaint TEXT NOT NULL COMMENT '主诉',
diagnosis TEXT NOT NULL COMMENT '诊断结果',
treatment_plan TEXT NOT NULL COMMENT '治疗方案',
tooth_position VARCHAR(50) COMMENT '牙位记录',
cost DECIMAL(10,2) NOT NULL COMMENT '诊疗费用',
prescription TEXT COMMENT '处方信息',
next_visit_date DATE COMMENT '复诊时间',
FOREIGN KEY (patient_id) REFERENCES patients(patient_id) ON DELETE CASCADE,
FOREIGN KEY (dentist_id) REFERENCES users(user_id) ON DELETE RESTRICT
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COMMENT='就诊记录表';
该表通过外键约束与患者表和用户表（医生）建立强关联，ON DELETE CASCADE确保患者删除时相关就诊记录同步清理，而ON DELETE RESTRICT防止误删医生数据。牙位记录字段采用专业编码格式，支持国际牙科联合会牙位记录法。
核心业务功能实现解析
1. 患者就诊记录管理模块
就诊记录管理是系统的核心功能，通过分层架构实现了数据的完整流转。控制层Servlet负责接收前端请求并调用相应的业务逻辑：
@WebServlet("/medicalRecord")
public class MedicalRecordServlet extends HttpServlet {
private MedicalRecordService recordService = new MedicalRecordService();
protected void doPost(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
String action = request.getParameter("action");
switch(action) {
case "add":
addMedicalRecord(request, response);
break;
case "query":
queryMedicalRecords(request, response);
break;
case "update":
updateMedicalRecord(request, response);
break;
}
}
private void addMedicalRecord(HttpServletRequest request, HttpServletResponse response)
throws ServletException, IOException {
try {
MedicalRecord record = new MedicalRecord();
record.setPatientId(Integer.parseInt(request.getParameter("patientId")));
record.setDentistId(Integer.parseInt(request.getParameter("dentistId")));
record.setChiefComplaint(request.getParameter("chiefComplaint"));
record.setDiagnosis(request.getParameter("diagnosis"));
record.setTreatmentPlan(request.getParameter("treatmentPlan"));
boolean success = recordService.addMedicalRecord(record);
if(success) {
response.sendRedirect("record_success.jsp");
} else {
request.setAttribute("error", "添加就诊记录失败");
request.getRequestDispatcher("error.jsp").forward(request, response);
}
} catch (Exception e) {
throw new ServletException("数据处理异常", e);
}
}
}
业务逻辑层封装了复杂的业务规则验证和数据处理流程：
public class MedicalRecordService {
private MedicalRecordDAO recordDAO = new MedicalRecordDAO();
public boolean addMedicalRecord(MedicalRecord record) throws SQLException {
// 业务规则验证
if (!validateMedicalRecord(record)) {
return false;
}
// 数据完整性检查
if (recordDAO.isDuplicateRecord(record.getPatientId(), record.getVisitDate())) {
throw new BusinessException("同一患者在同一天不能有重复就诊记录");
}
return recordDAO.insert(record) > 0;
}
private boolean validateMedicalRecord(MedicalRecord record) {
return record.getChiefComplaint() != null && !record.getChiefComplaint().trim().isEmpty()
&& record.getDiagnosis() != null && !record.getDiagnosis().trim().isEmpty()
&& record.getTreatmentPlan() != null && !record.getTreatmentPlan().trim().isEmpty();
}
}
数据访问层采用JDBC实现与数据库的交互，使用PreparedStatement防止SQL注入：
public class MedicalRecordDAO {
private Connection getConnection() throws SQLException {
return DataSourceManager.getConnection();
}
public int insert(MedicalRecord record) throws SQLException {
String sql = "INSERT INTO medical_records (patient_id, dentist_id, visit_date, " +
"chief_complaint, diagnosis, treatment_plan, tooth_position, cost) " +
"VALUES (?, ?, ?, ?, ?, ?, ?, ?)";
try (Connection conn = getConnection();
PreparedStatement pstmt = conn.prepareStatement(sql, Statement.RETURN_GENERATED_KEYS)) {
pstmt.setInt(1, record.getPatientId());
pstmt.setInt(2, record.getDentistId());
pstmt.setTimestamp(3, new Timestamp(record.getVisitDate().getTime()));
pstmt.setString(4, record.getChiefComplaint());
pstmt.setString(5, record.getDiagnosis());
pstmt.setString(6, record.getTreatmentPlan());
pstmt.setString(7, record.getToothPosition());
pstmt.setBigDecimal(8, record.getCost());
int affectedRows = pstmt.executeUpdate();
if (affectedRows > 0) {
try (ResultSet rs = pstmt.getGeneratedKeys()) {
if (rs.next()) {
return rs.getInt(1);
}
}
}
return -1;
}
}
}
2. 预约挂号管理功能

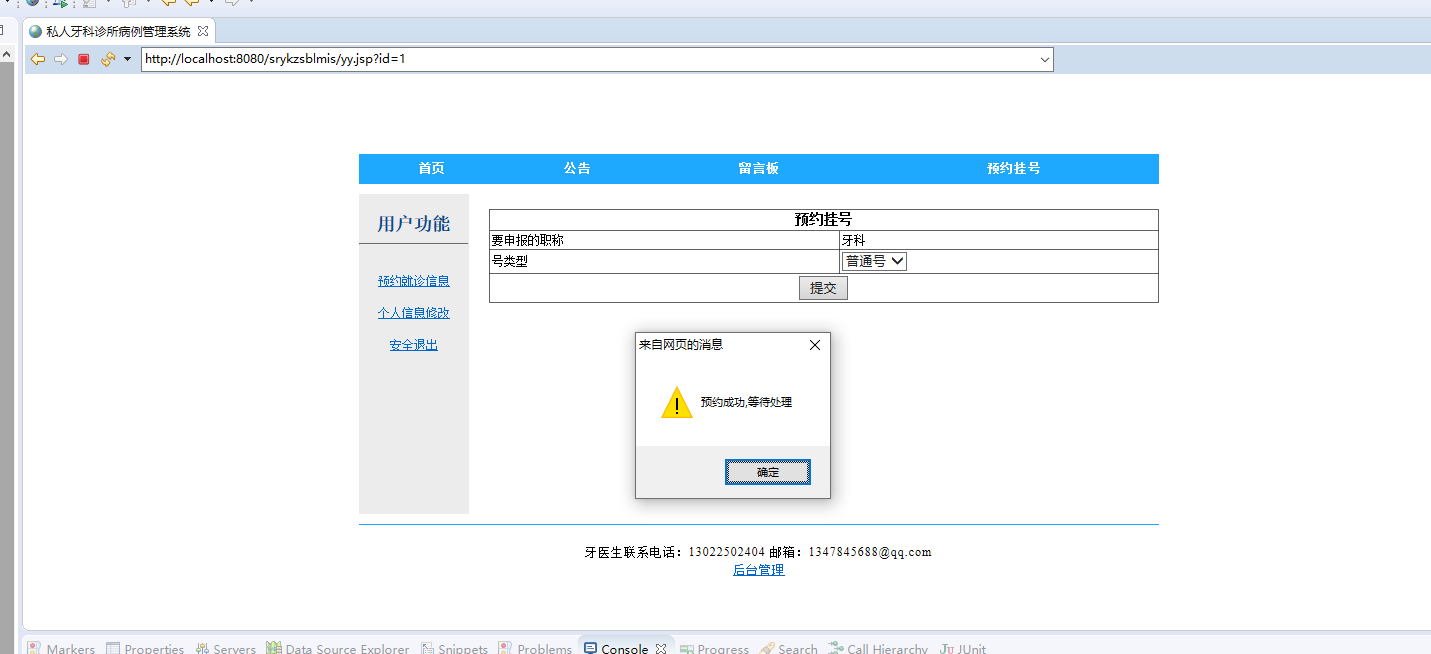

预约系统实现了时间冲突检测和资源分配优化，前端界面直观易用：
预约业务逻辑包含复杂的时间管理和资源调度算法：
public class AppointmentService {
private AppointmentDAO appointmentDAO = new AppointmentDAO();
public AppointmentResult makeAppointment(AppointmentRequest request) {
// 检查时间冲突
if (appointmentDAO.hasTimeConflict(request.getDentistId(),
request.getAppointmentDate(), request.getTimeSlot())) {
return new AppointmentResult(false, "该时间段已被预约");
}
// 检查医生排班
if (!isDentistAvailable(request.getDentistId(), request.getAppointmentDate())) {
return new AppointmentResult(false, "医生该日期不接诊");
}
// 创建预约记录
Appointment appointment = new Appointment();
appointment.setPatientId(request.getPatientId());
appointment.setDentistId(request.getDentistId());
appointment.setAppointmentDate(request.getAppointmentDate());
appointment.setTimeSlot(request.getTimeSlot());
appointment.setStatus(AppointmentStatus.PENDING);
try {
int appointmentId = appointmentDAO.insert(appointment);
if (appointmentId > 0) {
// 发送预约确认通知
sendAppointmentConfirmation(appointment);
return new AppointmentResult(true, "预约成功", appointmentId);
}
} catch (SQLException e) {
logger.error("预约数据保存失败", e);
}
return new AppointmentResult(false, "系统错误，预约失败");
}
}
3. 统计分析与报表功能

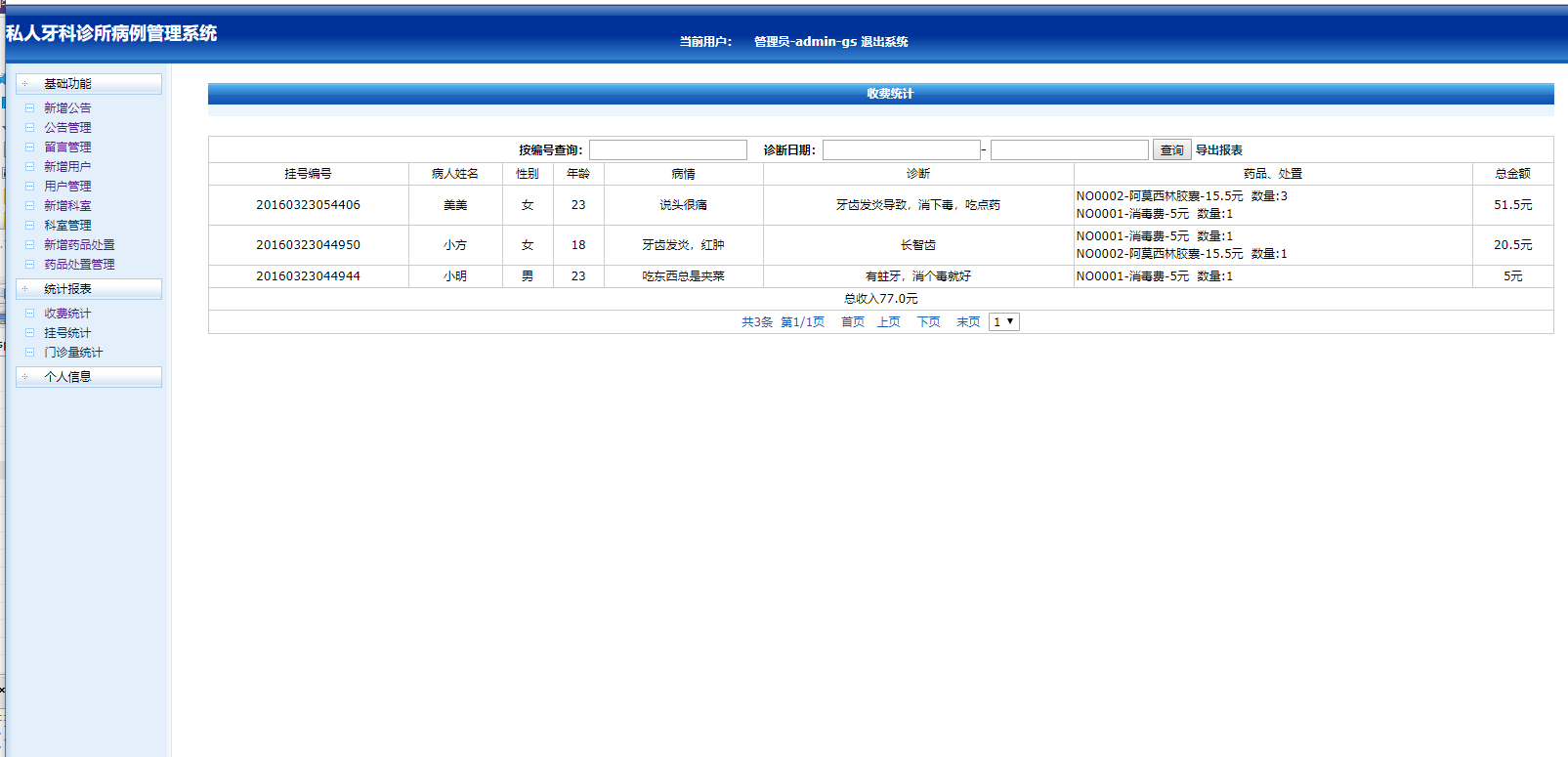

系统提供多维度的数据统计分析，支持诊所管理决策：
统计分析模块采用聚合查询和数据分析算法：
public class StatisticsService {
public ClinicStatistics generateMonthlyReport(int year, int month) {
ClinicStatistics stats = new ClinicStatistics();
// 患者数量统计
stats.setNewPatientCount(countNewPatients(year, month));
stats.setReturnPatientCount(countReturnPatients(year, month));
// 收入统计分析
stats.setTotalRevenue(calculateTotalRevenue(year, month));
stats.setRevenueByDepartment(calculateRevenueByDepartment(year, month));
// 就诊类型分布
stats.setTreatmentDistribution(analyzeTreatmentDistribution(year, month));
return stats;
}
private Map<String, BigDecimal> calculateRevenueByDepartment(int year, int month) {
String sql = "SELECT d.name, SUM(mr.cost) as revenue " +
"FROM medical_records mr " +
"JOIN users u ON mr.dentist_id = u.user_id " +
"JOIN departments d ON u.department_id = d.dept_id " +
"WHERE YEAR(mr.visit_date) = ? AND MONTH(mr.visit_date) = ? " +
"GROUP BY d.dept_id, d.name";
Map<String, BigDecimal> revenueMap = new HashMap<>();
try (Connection conn = getConnection();
PreparedStatement pstmt = conn.prepareStatement(sql)) {
pstmt.setInt(1, year);
pstmt.setInt(2, month);
ResultSet rs = pstmt.executeQuery();
while (rs.next()) {
revenueMap.put(rs.getString("name"), rs.getBigDecimal("revenue"));
}
} catch (SQLException e) {
logger.error("科室收入统计查询失败", e);
}
return revenueMap;
}
}
实体模型设计与业务对象封装
系统采用面向对象的设计理念，通过JavaBean封装核心业务实体：
public class Patient implements Serializable {
private Integer patientId;
private String idCard;
private String name;
private String gender;
private Date birthDate;
private String phone;
private String address;
private String allergyHistory;
private Date createdTime;
private Date updatedTime;
private List<MedicalRecord> medicalHistory;
// 构造方法、getter和setter
public Patient() {}
public Integer getPatientId() { return patientId; }
public void setPatientId(Integer patientId) { this.patientId = patientId; }
public String getIdCard() { return idCard; }
public void setIdCard(String idCard) {
if (idCard != null && idCard.matches("\\d{17}[\\dXx]")) {
this.idCard = idCard.toUpperCase();
} else {
throw new IllegalArgumentException("身份证格式不正确");
}
}
// 业务方法
public int calculateAge() {
if (birthDate == null) return 0;
Calendar birth = Calendar.getInstance();
birth.setTime(birthDate);
Calendar now = Calendar.getInstance();
int age = now.get(Calendar.YEAR) - birth.get(Calendar.YEAR);
if (now.get(Calendar.DAY_OF_YEAR) < birth.get(Calendar.DAY_OF_YEAR)) {
age--;
}
return age;
}
public boolean hasAllergy() {
return allergyHistory != null && !allergyHistory.trim().isEmpty();
}
}
就诊记录实体包含丰富的医疗业务属性和验证逻辑：
public class MedicalRecord implements Serializable {
private Integer recordId;
private Integer patientId;
private Integer dentistId;
private Date visitDate;
private String chiefComplaint;
private String diagnosis;
private String treatmentPlan;
private String toothPosition;
private BigDecimal cost;
private String prescription;
private Date nextVisitDate;
// 牙位验证逻辑
public void setToothPosition(String toothPosition) {
if (toothPosition != null && !isValidToothPosition(toothPosition)) {
throw new IllegalArgumentException("牙位格式不正确");
}
this.toothPosition = toothPosition;
}
private boolean isValidToothPosition(String position) {
// 实现国际牙科联合会牙位记录法验证
return position.matches("^[1-8][1-8]|[A-T][A-T]|(\\d{1,2}[A-Z]?)$");
}
// 诊疗费用验证
public void setCost(BigDecimal cost) {
if (cost != null && cost.compareTo(BigDecimal.ZERO) >= 0) {
this.cost = cost.setScale(2, RoundingMode.HALF_UP);
} else {
throw new IllegalArgumentException("费用不能为负数");
}
}
}
系统安全与权限控制
系统采用基于角色的访问控制模型，确保数据安全性和操作合规性：
public class AuthenticationFilter implements Filter {
private static final Set<String> PUBLIC_URLS = Set.of(
"/login.jsp", "/login", "/register.jsp", "/register"
);
public void doFilter(ServletRequest request, ServletResponse response,
FilterChain chain) throws IOException, ServletException {
HttpServletRequest httpRequest = (HttpServletRequest) request;
HttpServletResponse httpResponse = (HttpServletResponse) response;
String path = httpRequest.getRequestURI().substring(
httpRequest.getContextPath().length());
// 公开资源直接放行
if (PUBLIC_URLS.contains(path)) {
chain.doFilter(request, response);
return;
}
HttpSession session = httpRequest.getSession(false);
if (session != null && session.getAttribute("user") != null) {
User user = (User) session.getAttribute("user");
// 角色权限验证
if (hasPermission(user, path)) {
chain.doFilter(request, response);
} else {
httpResponse.sendError(HttpServletResponse.SC_FORBIDDEN, "权限不足");
}
} else {
httpResponse.sendRedirect(httpRequest.getContextPath() + "/login.jsp");
}
}
private boolean hasPermission(User user, String path) {
// 实现基于角色的路径权限验证逻辑
return true; // 简化实现
}
}
用户管理界面提供了完整的权限配置功能：
技术优化与未来扩展方向
基于当前系统架构和业务需求，以下几个方向具有显著的技术价值和实施可行性：
1. 分布式缓存集成 引入Redis等内存数据库缓存热点数据，如患者基本信息、医生排班表等。通过减少数据库直接访问提升系统响应速度，预计可降低数据库负载30%以上。
// 缓存集成示例
public class PatientServiceWithCache {
private PatientDAO patientDAO;
private RedisTemplate redisTemplate;
public Patient getPatientById(Integer patientId) {
String cacheKey = "patient:" + patientId;
Patient patient = (Patient) redisTemplate.opsForValue().get(cacheKey);
if (patient == null) {
patient = patientDAO.findById(patientId);
if (patient != null) {
redisTemplate.opsForValue().set(cacheKey, patient, Duration.ofHours(1));
}
}
return patient;
}
}
2. 微服务架构改造 将单体应用拆分为患者服务、预约服务、病历服务等独立微服务。每个服务专注特定业务领域，通过REST API或gRPC进行通信，提升系统可维护性和技术栈灵活性。
3. 移动端应用开发 开发基于React Native或Flutter的移动端应用，支持医生移动查房、患者自助服务等功能。通过JWT实现安全的移动端认证，与现有系统无缝集成。
4. 大数据分析平台 构建基于Hadoop或Spark的医疗数据分析平台，对历史病历数据进行深度挖掘，实现疾病预测、诊疗效果评估等智能分析功能。
5. 影像资料云端存储 集成云存储服务（如阿里云OSS）管理牙科X光片等影像资料，通过CDN加速访问，解决本地存储空间限制和访问性能问题。
系统通过严谨的架构设计、完善的功能模块和稳健的技术实现，为私人牙科诊所提供了全面的数字化解决方案。模块化的设计理念和标准化的技术栈为后续的功能扩展和技术升级奠定了坚实基础。
