基于JSP的医院在线预约挂号系统 - 源码深度解析

JavaJavaScriptHTMLCSSMySQLJSP+Servlet
2026-02-224 浏览

文章摘要

本项目是一款基于JSP技术的医院在线预约挂号系统，旨在解决传统医院窗口挂号排队耗时、医疗资源分配不均、患者就诊体验差等核心痛点。系统通过在线化的服务流程，将挂号业务迁移至网络平台，使患者能够随时随地查询科室与医生排班并完成预约，有效分流线下窗口压力，优化医疗资源配置效率，提升医院服务管理水平与患者满...

智慧医疗预约平台：基于JSP的医院挂号系统深度解析

在医疗信息化快速发展的今天，传统医院窗口挂号模式已无法满足现代医疗服务的需求。患者排队耗时、医疗资源分配不均、就诊体验差等问题日益突出。智慧医疗预约平台应运而生，采用JSP+Servlet+JavaBean的MVC架构，构建了一套完整的在线预约挂号解决方案。

系统架构与技术栈

该系统采用经典的三层架构模式，表现层使用JSP动态页面技术，业务逻辑层由Servlet控制器实现，数据持久化层通过JDBC连接MySQL数据库。这种分层架构确保了代码的可维护性和系统的可扩展性。

核心Servlet控制器示例：

@WebServlet("/AppointmentServlet")
public class AppointmentServlet extends HttpServlet {
    protected void doPost(HttpServletRequest request, HttpServletResponse response)
            throws ServletException, IOException {
        String action = request.getParameter("action");
        AppointmentDAO appointmentDAO = new AppointmentDAO();

        switch(action) {
            case "book":
                String patientId = request.getParameter("patientId");
                String doctorId = request.getParameter("doctorId");
                String appointmentDate = request.getParameter("appointmentDate");
                String timeSlot = request.getParameter("timeSlot");

                Appointment appointment = new Appointment();
                appointment.setPatientId(patientId);
                appointment.setDoctorId(doctorId);
                appointment.setAppointmentDate(java.sql.Date.valueOf(appointmentDate));
                appointment.setTimeSlot(timeSlot);
                appointment.setStatus("待就诊");

                boolean result = appointmentDAO.addAppointment(appointment);
                if(result) {
                    request.setAttribute("message", "预约成功！");
                } else {
                    request.setAttribute("error", "预约失败，请重试！");
                }
                break;

            case "cancel":
                String appointmentId = request.getParameter("appointmentId");
                boolean cancelResult = appointmentDAO.cancelAppointment(appointmentId);
                // 处理取消逻辑
                break;
        }
        request.getRequestDispatcher("appointment_result.jsp").forward(request, response);
    }
}

数据库设计深度解析

系统数据库设计包含7张核心表，采用规范化的设计理念确保数据一致性和完整性。

患者信息表设计

患者表采用模块化设计，将基本信息、医疗档案和账户安全分离，支持灵活的查询和统计功能。

CREATE TABLE patients (
    patient_id VARCHAR(20) PRIMARY KEY,
    id_card VARCHAR(18) UNIQUE NOT NULL,
    patient_name VARCHAR(50) NOT NULL,
    gender ENUM('男','女') NOT NULL,
    birth_date DATE NOT NULL,
    phone VARCHAR(11) NOT NULL,
    email VARCHAR(100),
    address TEXT,
    medical_history TEXT,
    allergy_info TEXT,
    emergency_contact VARCHAR(50),
    emergency_phone VARCHAR(11),
    registration_date DATETIME DEFAULT CURRENT_TIMESTAMP,
    last_visit_date DATE,
    status ENUM('正常','黑名单') DEFAULT '正常',
    INDEX idx_phone (phone),
    INDEX idx_id_card (id_card),
    INDEX idx_name (patient_name)
);

预约订单表设计

预约表采用状态机模式管理预约生命周期，支持复杂的业务规则验证。

CREATE TABLE appointments (
    appointment_id INT AUTO_INCREMENT PRIMARY KEY,
    patient_id VARCHAR(20) NOT NULL,
    doctor_id VARCHAR(20) NOT NULL,
    department_id INT NOT NULL,
    appointment_date DATE NOT NULL,
    time_slot VARCHAR(20) NOT NULL,
    appointment_number VARCHAR(50),
    fee DECIMAL(10,2) DEFAULT 0.00,
    status ENUM('待支付','待就诊','已就诊','已取消','已过期') DEFAULT '待支付',
    create_time DATETIME DEFAULT CURRENT_TIMESTAMP,
    update_time DATETIME DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
    cancel_reason TEXT,
    symptoms_description TEXT,
    diagnosis_result TEXT,
    prescription_info TEXT,
    FOREIGN KEY (patient_id) REFERENCES patients(patient_id),
    FOREIGN KEY (doctor_id) REFERENCES doctors(doctor_id),
    FOREIGN KEY (department_id) REFERENCES departments(department_id),
    INDEX idx_appointment_date (appointment_date),
    INDEX idx_doctor_date (doctor_id, appointment_date),
    INDEX idx_patient_status (patient_id, status)
);

医生排班表设计

排班表采用时间片管理，支持灵活的排班规则和号源控制。

CREATE TABLE doctor_schedules (
    schedule_id INT AUTO_INCREMENT PRIMARY KEY,
    doctor_id VARCHAR(20) NOT NULL,
    work_date DATE NOT NULL,
    time_slot VARCHAR(20) NOT NULL,
    total_slots INT DEFAULT 20,
    booked_slots INT DEFAULT 0,
    available_slots INT DEFAULT 20,
    status ENUM('可预约','已满','停诊') DEFAULT '可预约',
    FOREIGN KEY (doctor_id) REFERENCES doctors(doctor_id),
    UNIQUE KEY uk_doctor_time (doctor_id, work_date, time_slot),
    INDEX idx_date_slot (work_date, time_slot)
);

核心功能实现解析

智能医生搜索与预约功能

系统提供多维度医生搜索功能，支持按科室、职称、专长等条件筛选。预约过程采用实时号源验证，防止超预约情况发生。

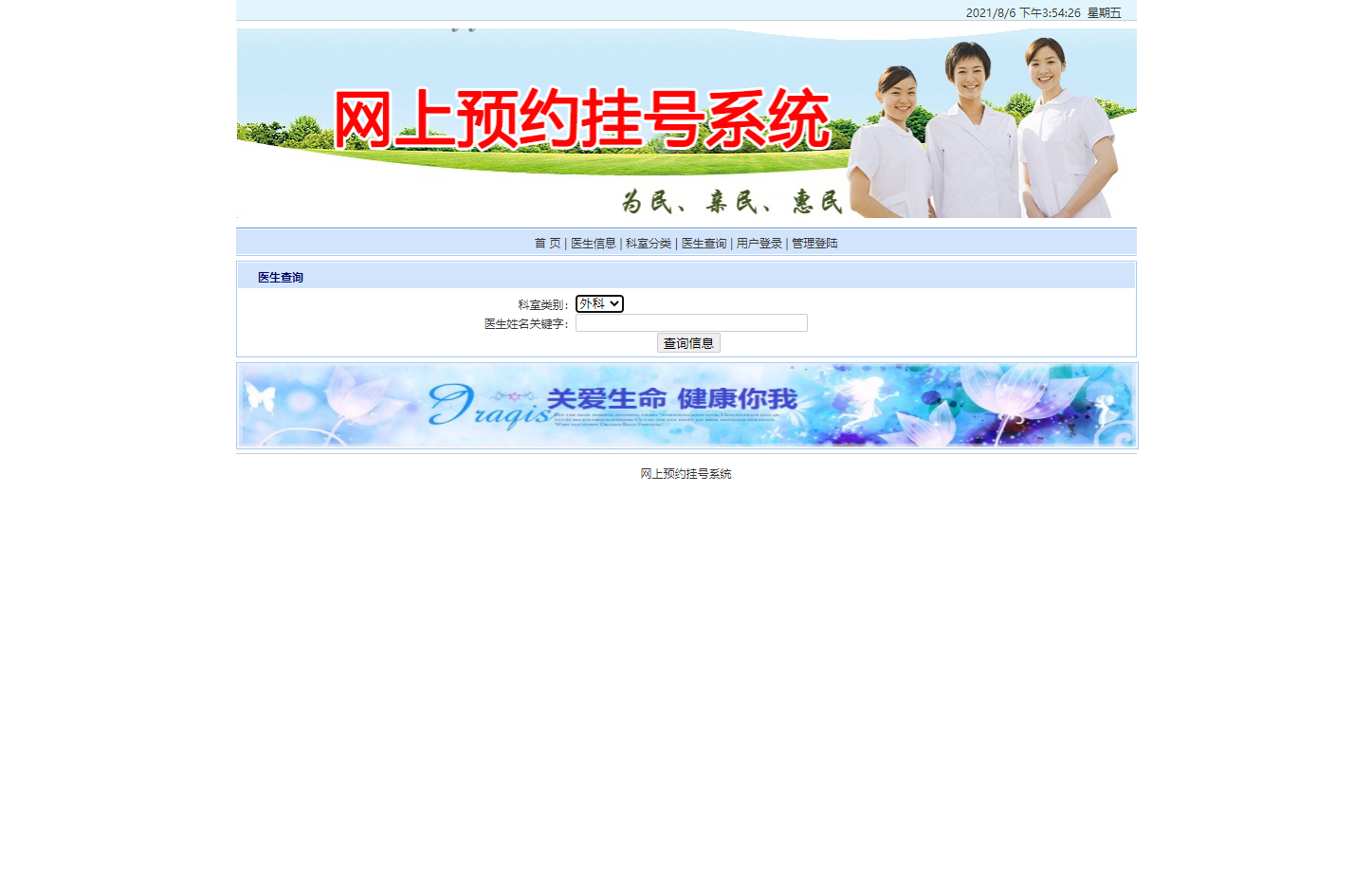

医生搜索界面

医生搜索DAO实现：

public class DoctorDAO {
    public List<Doctor> searchDoctors(String departmentId, String doctorName,
                                    String specialty, String title) {
        List<Doctor> doctors = new ArrayList<>();
        String sql = "SELECT d.*, dep.department_name FROM doctors d " +
                    "LEFT JOIN departments dep ON d.department_id = dep.department_id " +
                    "WHERE 1=1";
        List<Object> params = new ArrayList<>();

        if (departmentId != null && !departmentId.isEmpty()) {
            sql += " AND d.department_id = ?";
            params.add(departmentId);
        }
        if (doctorName != null && !doctorName.isEmpty()) {
            sql += " AND d.doctor_name LIKE ?";
            params.add("%" + doctorName + "%");
        }
        if (specialty != null && !specialty.isEmpty()) {
            sql += " AND d.specialty LIKE ?";
            params.add("%" + specialty + "%");
        }
        if (title != null && !title.isEmpty()) {
            sql += " AND d.title = ?";
            params.add(title);
        }

        try (Connection conn = DBUtil.getConnection();
             PreparedStatement pstmt = conn.prepareStatement(sql)) {

            for (int i = 0; i < params.size(); i++) {
                pstmt.setObject(i + 1, params.get(i));
            }

            ResultSet rs = pstmt.executeQuery();
            while (rs.next()) {
                Doctor doctor = extractDoctorFromResultSet(rs);
                doctors.add(doctor);
            }
        } catch (SQLException e) {
            e.printStackTrace();
        }
        return doctors;
    }

    private Doctor extractDoctorFromResultSet(ResultSet rs) throws SQLException {
        Doctor doctor = new Doctor();
        doctor.setDoctorId(rs.getString("doctor_id"));
        doctor.setDoctorName(rs.getString("doctor_name"));
        doctor.setDepartmentId(rs.getInt("department_id"));
        doctor.setDepartmentName(rs.getString("department_name"));
        doctor.setTitle(rs.getString("title"));
        doctor.setSpecialty(rs.getString("specialty"));
        doctor.setIntroduction(rs.getString("introduction"));
        doctor.setWorkYears(rs.getInt("work_years"));
        return doctor;
    }
}

预约管理后台

管理员可以全面管理预约信息，支持按多种条件查询和统计，提供黑名单管理功能防止恶意预约。

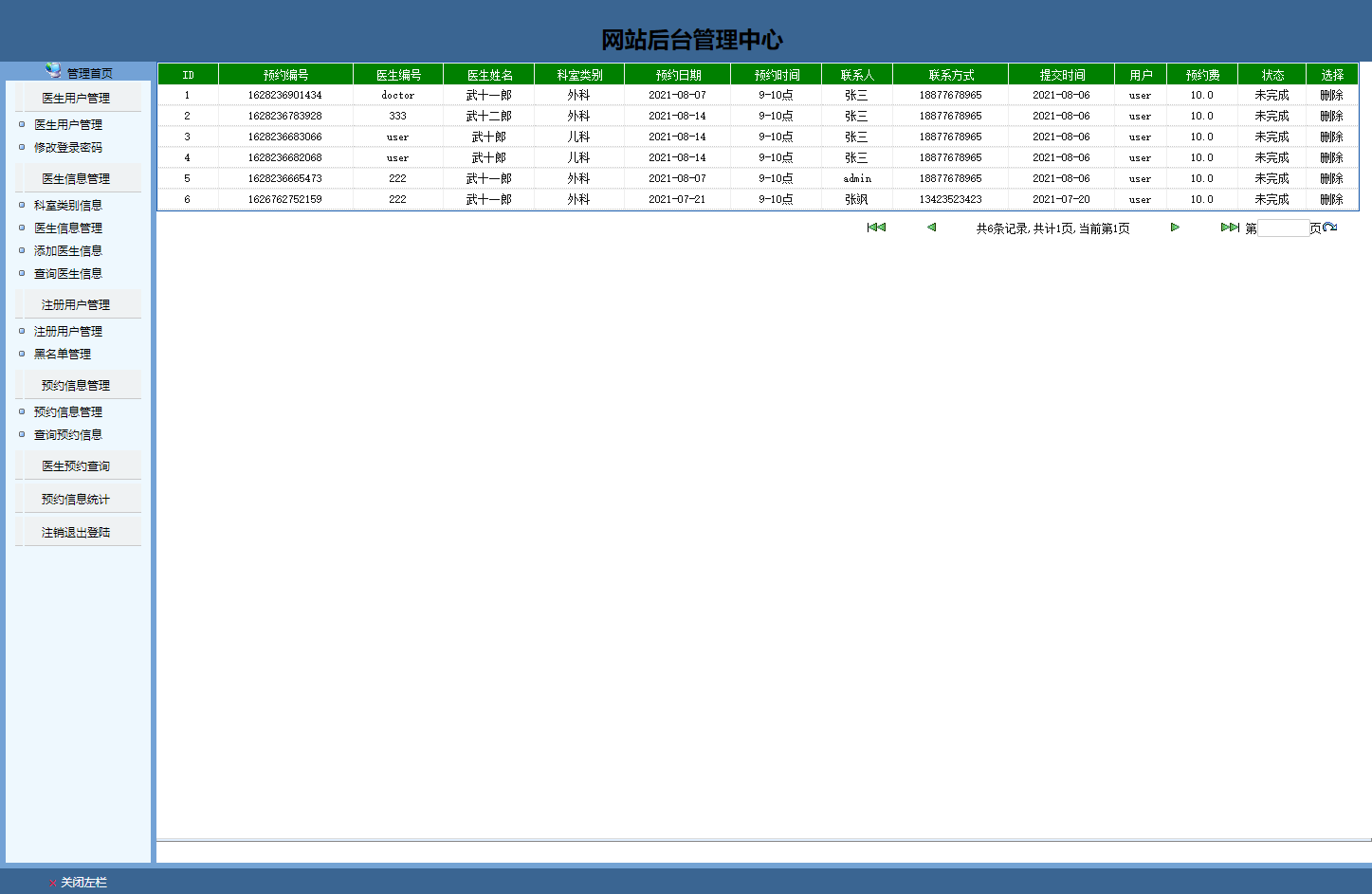

预约信息管理

预约状态管理服务：

public class AppointmentService {
    private AppointmentDAO appointmentDAO = new AppointmentDAO();
    private DoctorScheduleDAO scheduleDAO = new DoctorScheduleDAO();

    public boolean processAppointment(String appointmentId, String action) {
        try {
            Connection conn = DBUtil.getConnection();
            conn.setAutoCommit(false);

            Appointment appointment = appointmentDAO.getAppointmentById(appointmentId, conn);
            if (appointment == null) {
                return false;
            }

            switch (action) {
                case "confirm":
                    if (!"待就诊".equals(appointment.getStatus())) {
                        return false;
                    }
                    appointment.setStatus("已就诊");
                    break;

                case "cancel":
                    if (!"待就诊".equals(appointment.getStatus())) {
                        return false;
                    }
                    appointment.setStatus("已取消");
                    // 释放号源
                    scheduleDAO.releaseTimeSlot(
                        appointment.getDoctorId(),
                        appointment.getAppointmentDate(),
                        appointment.getTimeSlot(),
                        conn
                    );
                    break;

                default:
                    return false;
            }

            boolean success = appointmentDAO.updateAppointment(appointment, conn);
            if (success) {
                conn.commit();
                return true;
            } else {
                conn.rollback();
                return false;
            }
        } catch (SQLException e) {
            e.printStackTrace();
            return false;
        }
    }
}

医生排班管理

系统提供可视化的排班管理界面，支持批量设置医生出诊时间，智能冲突检测确保排班合理性。

医生信息管理

排班冲突检测算法：

public class ScheduleValidator {
    public ValidationResult validateSchedule(DoctorSchedule newSchedule) {
        ValidationResult result = new ValidationResult();

        // 检查时间有效性
        if (newSchedule.getWorkDate().before(new Date())) {
            result.addError("排班日期不能早于当前日期");
            return result;
        }

        // 检查同一医生时间冲突
        List<DoctorSchedule> existingSchedules =
            scheduleDAO.getSchedulesByDoctorAndDate(
                newSchedule.getDoctorId(),
                newSchedule.getWorkDate()
            );

        for (DoctorSchedule existing : existingSchedules) {
            if (isTimeOverlap(existing.getTimeSlot(), newSchedule.getTimeSlot())) {
                result.addError("该时间段已有排班安排");
                break;
            }
        }

        // 检查单日排班总数限制
        if (exceedingDailyLimit(newSchedule)) {
            result.addError("单日排班总数超过限制");
        }

        return result;
    }

    private boolean isTimeOverlap(String slot1, String slot2) {
        // 实现时间段重叠检测逻辑
        String[] time1 = slot1.split("-");
        String[] time2 = slot2.split("-");

        LocalTime start1 = LocalTime.parse(time1[0]);
        LocalTime end1 = LocalTime.parse(time1[1]);
        LocalTime start2 = LocalTime.parse(time2[0]);
        LocalTime end2 = LocalTime.parse(time2[1]);

        return !(end1.isBefore(start2) || start1.isAfter(end2));
    }
}

患者个人中心

患者可以查看预约记录、管理个人信息、修改密码等，提供完整的自助服务功能。

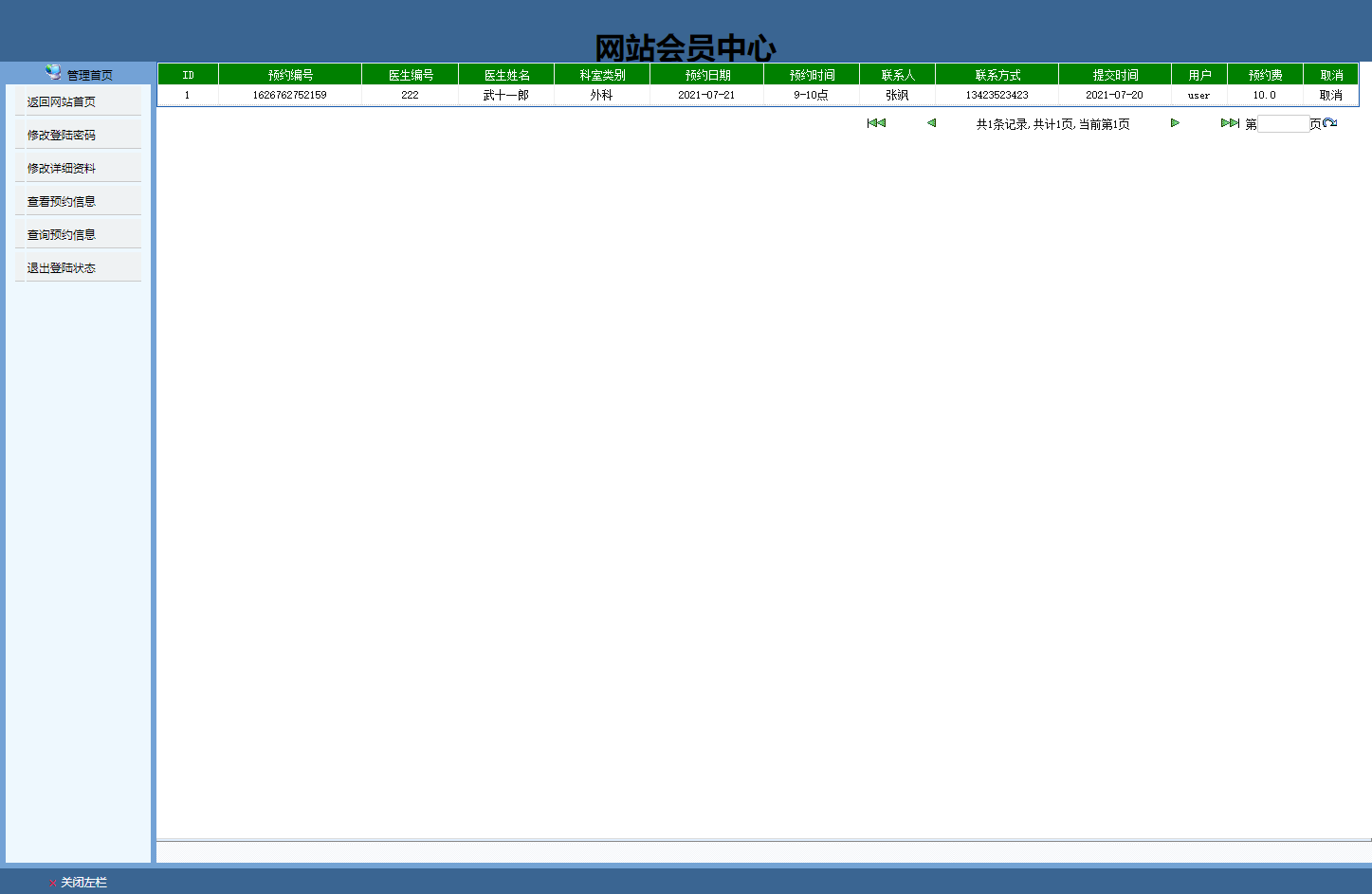

查看预约信息

患者服务实现：

public class PatientService {
    public PatientProfile getPatientProfile(String patientId) {
        PatientProfile profile = new PatientProfile();

        // 获取基本信息
        Patient patient = patientDAO.getPatientById(patientId);
        profile.setPatient(patient);

        // 获取预约记录
        List<Appointment> appointments =
            appointmentDAO.getAppointmentsByPatientId(patientId);
        profile.setAppointments(appointments);

        // 统计信息
        Map<String, Object> statistics = new HashMap<>();
        statistics.put("totalAppointments", appointments.size());
        statistics.put("completedAppointments",
            appointments.stream().filter(a -> "已就诊".equals(a.getStatus())).count());
        statistics.put("pendingAppointments",
            appointments.stream().filter(a -> "待就诊".equals(a.getStatus())).count());

        profile.setStatistics(statistics);
        return profile;
    }
}

实体模型设计

系统采用面向对象的设计理念，核心实体模型关系清晰，支持复杂的业务逻辑处理。

核心实体类定义：

public class Appointment {
    private String appointmentId;
    private String patientId;
    private String doctorId;
    private Integer departmentId;
    private Date appointmentDate;
    private String timeSlot;
    private String appointmentNumber;
    private BigDecimal fee;
    private String status;
    private Date createTime;
    private Date updateTime;
    private String cancelReason;
    private String symptomsDescription;
    private String diagnosisResult;
    private String prescriptionInfo;

    // 关联对象
    private Patient patient;
    private Doctor doctor;
    private Department department;

    // 业务方法
    public boolean canBeCanceled() {
        return "待支付".equals(status) || "待就诊".equals(status);
    }

    public boolean isExpired() {
        return appointmentDate.before(new Date()) && "待就诊".equals(status);
    }
}

系统优化与扩展方向

性能优化策略

  1. 数据库查询优化：对频繁查询的字段建立复合索引，使用连接池管理数据库连接
  2. 缓存机制：引入Redis缓存热点数据，如医生排班信息、科室列表等
  3. 分页查询：大数据量查询采用分页技术，减少单次查询数据量

功能扩展建议

  1. 智能推荐系统：基于患者历史就诊记录和症状描述，智能推荐合适的科室和医生
  2. 移动端适配：开发响应式设计或独立的移动APP，提升移动用户体验
  3. 支付集成：集成第三方支付平台，支持在线支付挂号费用
  4. 消息推送：实现预约提醒、停诊通知等消息的短信/微信推送功能
  5. 数据分析平台：构建数据看板，为医院管理提供决策支持

技术架构升级

  1. 微服务化改造：将单体应用拆分为用户服务、预约服务、排班服务等微服务
  2. 前后端分离：采用Vue.js或React重构前端，RESTful API提供数据接口
  3. 容器化部署：使用Docker容器化部署，提高部署效率和系统稳定性

智慧医疗预约平台通过技术创新解决了传统医疗挂号中的痛点问题，为医疗机构提供了高效的信息化管理工具，为患者创造了便捷的就医体验。系统的模块化设计和扩展性架构为未来的功能升级和技术演进奠定了坚实基础。
